25 Ton Buried Underground LPG Storage Tank – Factory Good Price
25-ton buried underground LPG storage tank with 50 CBM capacity. Manufactured by Chengli in China using Carbon Steel Q345R. Competitive factory pricing available for direct purchase.
factory good price chengli Overview.
factory good price chengli is an important factor in commercial vehicle safety.
Introduction.

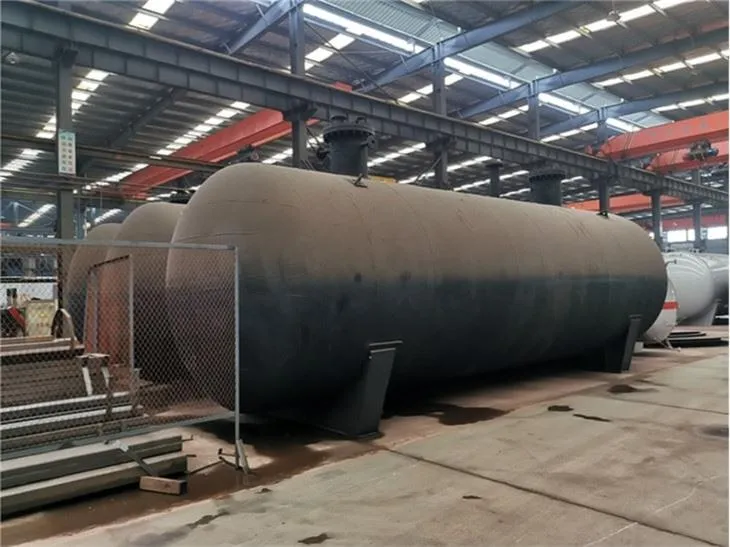

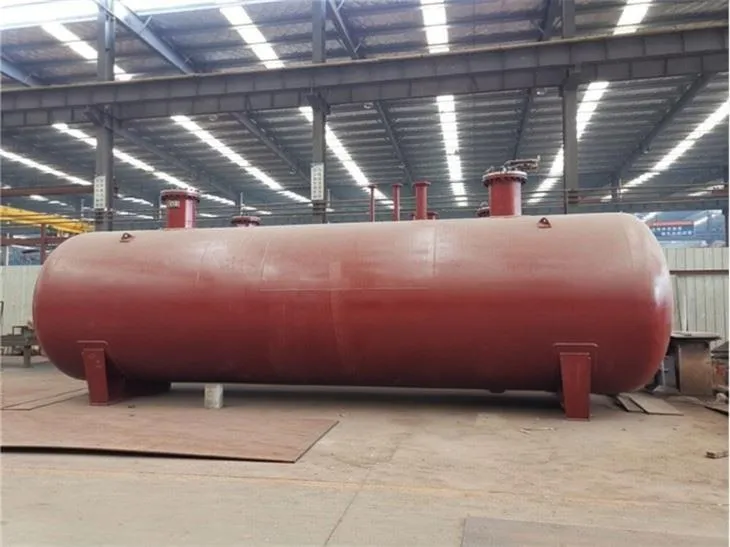

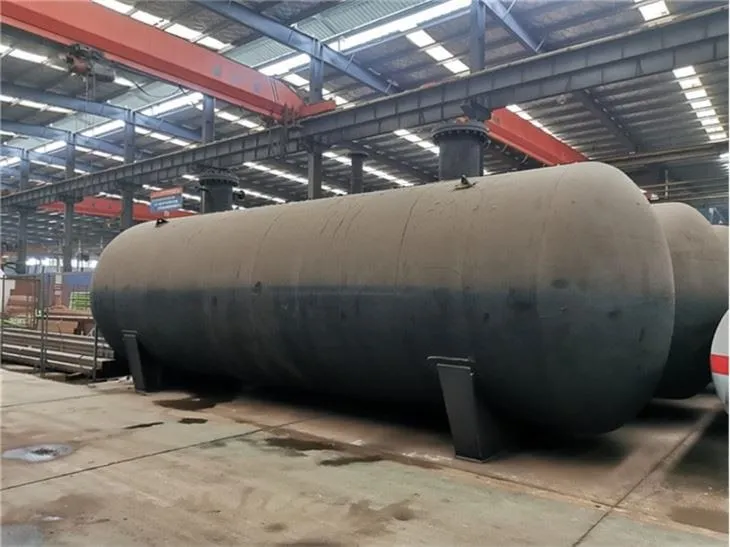

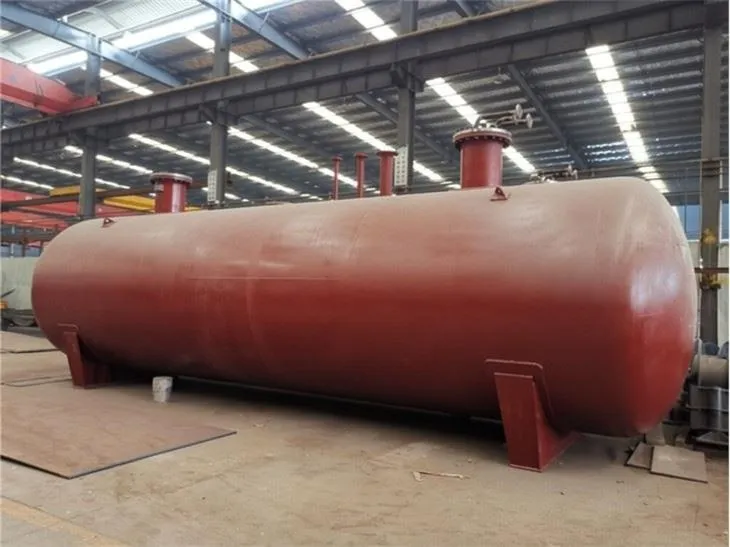

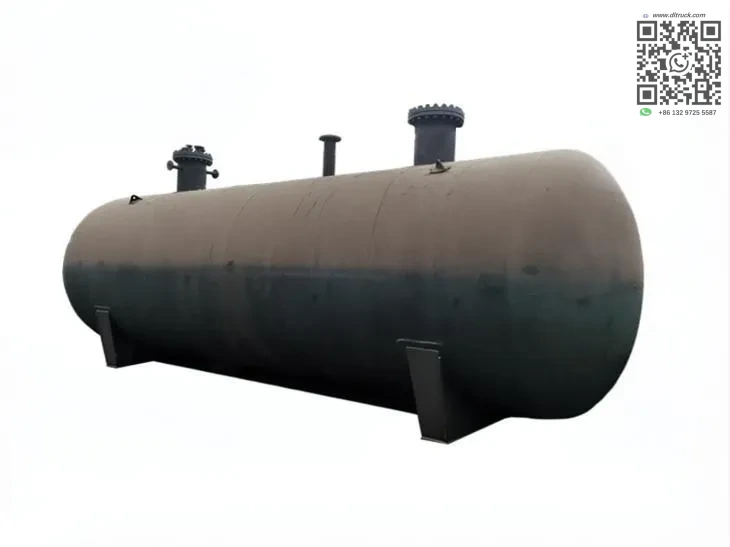

The 25-ton buried underground LPG storage tank is manufactured by Chengli in China. The tank holds 50 CBM of Liquefied Petroleum Gas. It is built from Carbon Steel Q345R for structural integrity.
Key Features.
Key specifications define the tank capabilities and construction standards used in this product.
- Filling weight capacity: 25,000 kg.
- Tank weight: 10640kg.
- Volume of tank: 50 CBM.
- Shell thickness: 14 mm.
- Endplate thickness: 16 mm.
- Tank diameter: 2700 mm.
- External dimensions: 9182 x 2728 x 3318 mm.
- Design pressure: 1.77 MPa.
- Corrosion allowance: 1 mm.
- Medium density: 500 kg/ cbm.
Performance and Configuration.
The tank uses Carbon Steel Q345R for the shell and all main pressure parts. This material provides strength for underground burial service. The shell thickness is 14 mm. The endplate thickness is 16 mm, providing extra reinforcement at the closure ends.
The tank has a cylindrical diameter of 2700 mm. Overall external dimensions measure 9182 x 2728 x 3318 mm. Design pressure is rated at 1.77 MPa. A corrosion allowance of 1 mm is built into the design to account for long-term exposure in buried conditions.
The tank is filled with Liquefied Petroleum Gas, specifically Propane. The medium density is 500 kg/ cbm. Total filling weight reaches 25,000 kg. The empty tank weight is 10640kg. These parameters define the operational envelope for safe LPG storage and distribution.
Applications.
This underground LPG storage tank is used for bulk storage and distribution of Liquefied Petroleum Gas. It is suitable for residential communities, industrial sites, and commercial facilities requiring a reliable buried storage solution.
Why Choose This Truck.
Chengli operates as a direct manufacturer in China. Buyers receive factory good price terms without intermediary markups. The tank meets defined design pressure and material specifications for underground LPG service.
Direct factory communication allows customization of configuration to match site requirements. Contact Chengli for detailed information and competitive pricing on this 25-ton buried underground LPG storage tank.
