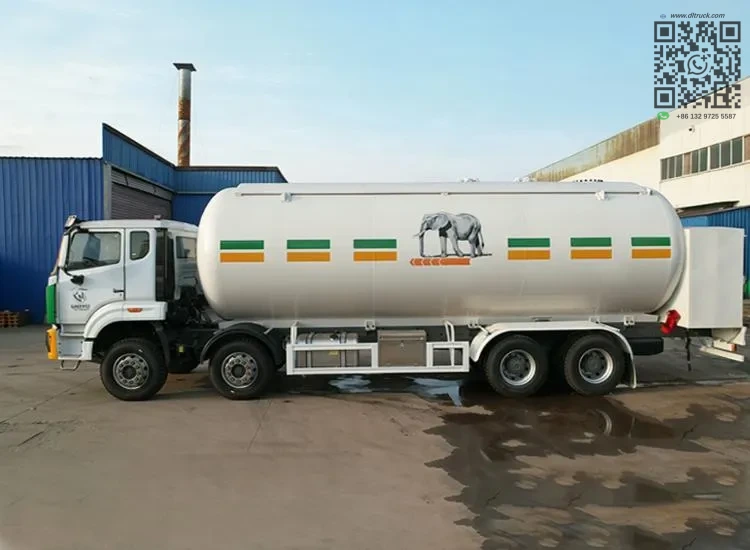

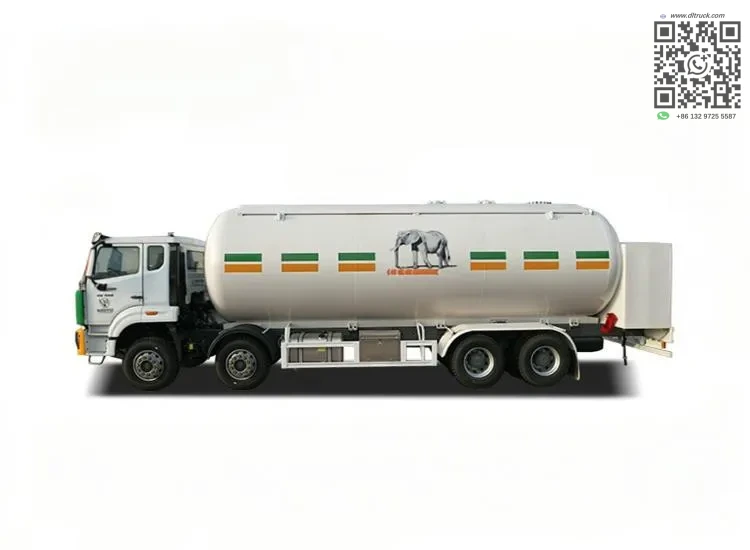

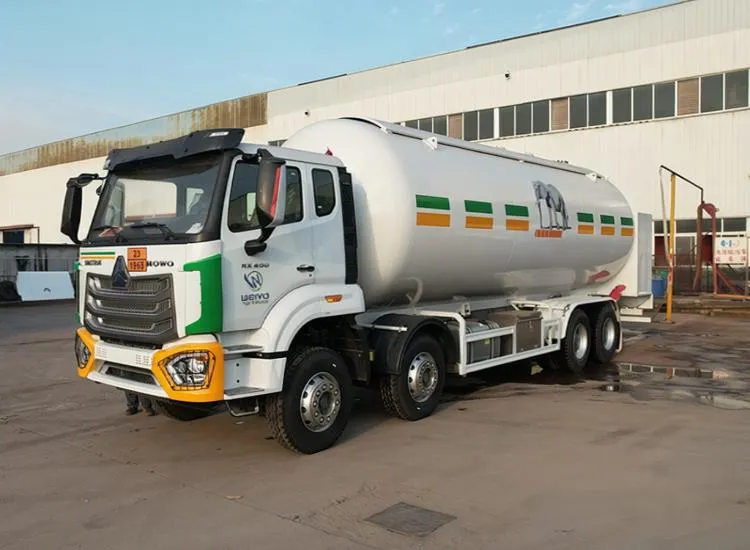

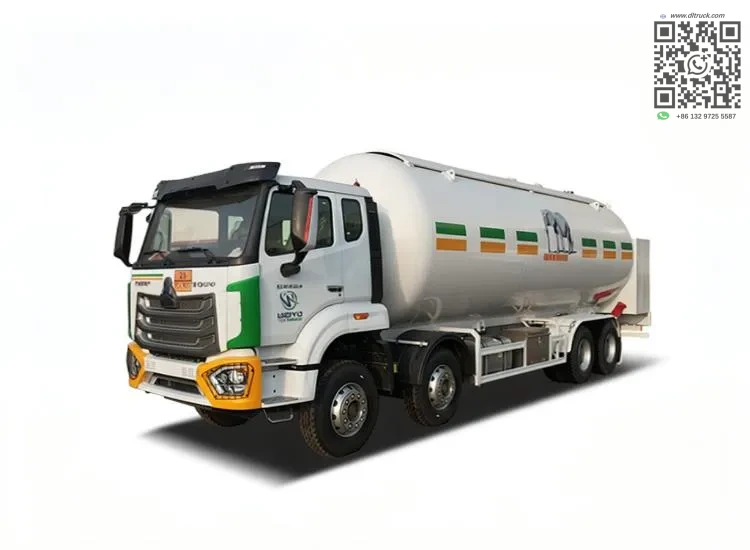

20MT LPG Tanker Truck Sinotruk HOWO | Chengli Factory Good Price
20MT LPG tanker truck built on Sinotruk HOWO chassis. 40m³ tank capacity, 400HP Weichai engine, Euro 2 compliance. Factory direct pricing from Chengli.
factory good price chengli Overview.
factory good price chengli is an important factor in commercial vehicle safety.
Introduction.
This 20MT LPG tanker truck is manufactured by Chengli Factory. Direct purchase from the factory ensures a good price. The vehicle meets Euro 2 emission standards. Chengli offers competitive pricing for export orders.
The cab provides left-hand drive with 2 or 3 seats and one sleeper. Heating and cooling air conditioning ensures driver comfort. The diesel engine delivers 400HP power. Overall dimensions are 12000x2510x3845mm (LxWxH).
Key Features.
Key design features include robust construction and essential safety components. The tank body uses Q345R steel with 12mm thickness. End plates are also 12mm thick. Stress relief is achieved through heat treatment.
- Tank capacity: 40m³ (20mt) for LPG filling medium.
- Design pressure: 1.61MPa with 1mm corrosion allowance.
- Hydraulic test pressure: 2.1MPa.
- LPG pump: USA CORKEN 2″ for loading and unloading.
- Valve box located at the rear of the truck.
- Chinese brand level gauge, pressure gauge, and thermometer.
- Volume flow meter in liters.
- Liquid phase and vapour phase connections with Rego connector and cap.
- Includes 15m filling hose and Rego filling gun.
.
Performance and Configuration.

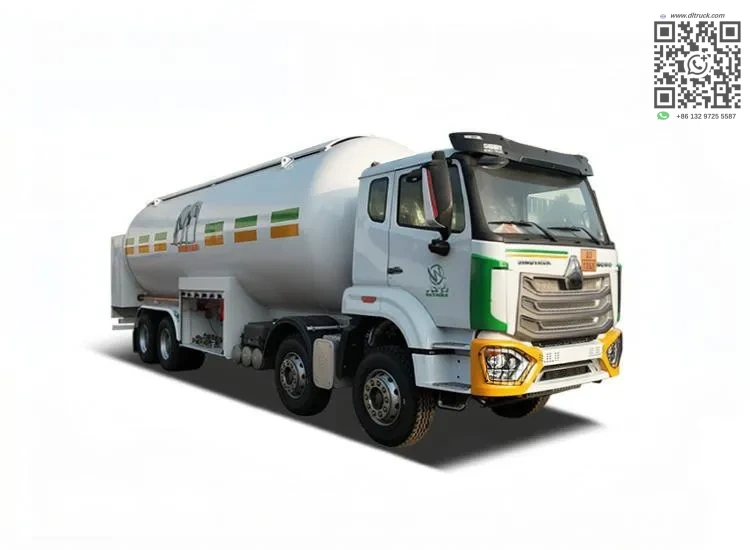

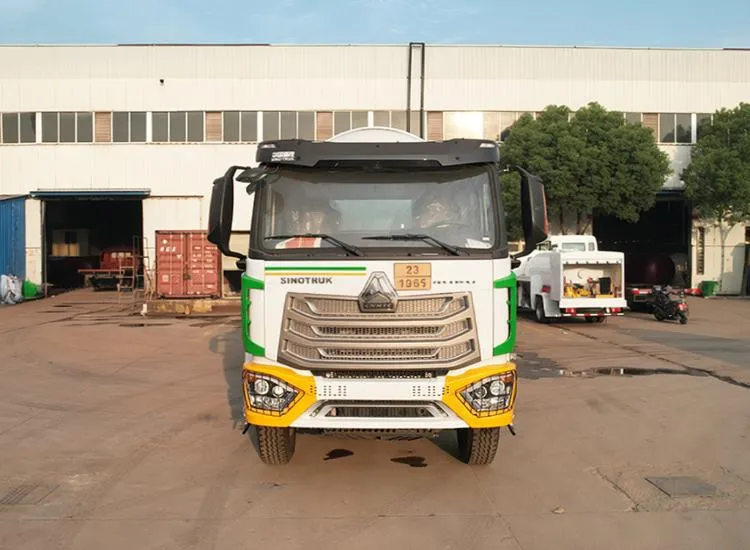

The Sinotruk HOWO NX cab supports left-hand drive. It accommodates 2 or 3 seats plus one sleeper. Heating and cooling air conditioning is standard. The Weichai diesel engine produces 400HP and complies with Euro 2 regulations. It is a 6-cylinder in-line, water-cooled, four-stroke, direct-injection unit.
Manual transmission offers 10 forward and 2 reverse gears. Front axle load rating is 9500kg. Rear axle load rating is 16000kg. The truck rides on 315/80R22.5 tires, with 12+1 pieces total. Gross vehicle weight (GVW) is 31000kg. Curb weight is 21000kg.
Tank material is Q345R steel. Body and end plate thickness are both 12mm. Stress relief is performed via heat treatment. The design pressure is 1.61MPa. Corrosion allowance is 1mm. Hydraulic test pressure is 2.1MPa. The LPG pump is a USA CORKEN 2″ model.
Applications.
This LPG tanker truck is intended for transporting liquefied petroleum gas. It is suitable for commercial fuel distribution and industrial gas supply. The vehicle can operate on highways and urban routes. The rear valve box allows safe access for filling operations. The included 15m filling hose and Rego gun facilitate efficient loading and unloading.
Why Choose This Truck.
Chengli Factory offers this truck at a good price. Direct factory sales reduce intermediary costs. The Sinotruk HOWO chassis is known for durability. The Weichai engine provides reliable performance. Essential safety features are integrated into the tank design. The company supplies professional support for export orders.
