Introduction.

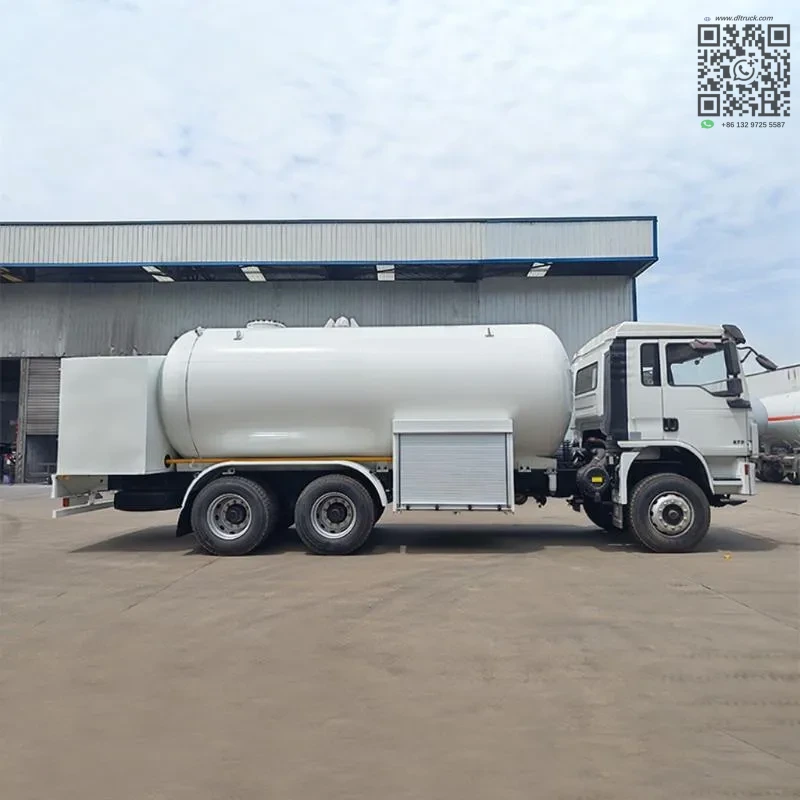

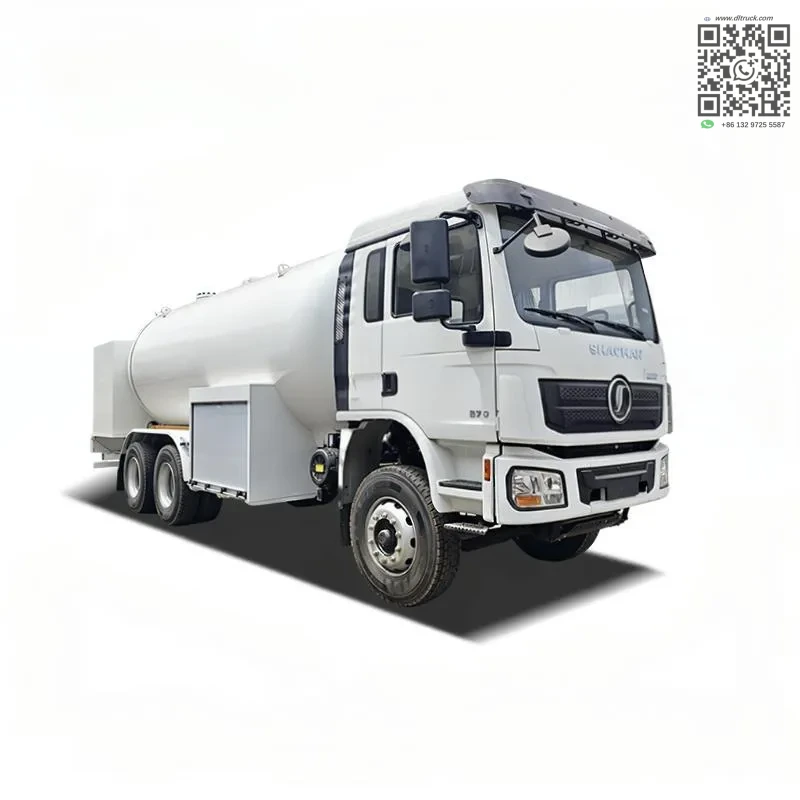

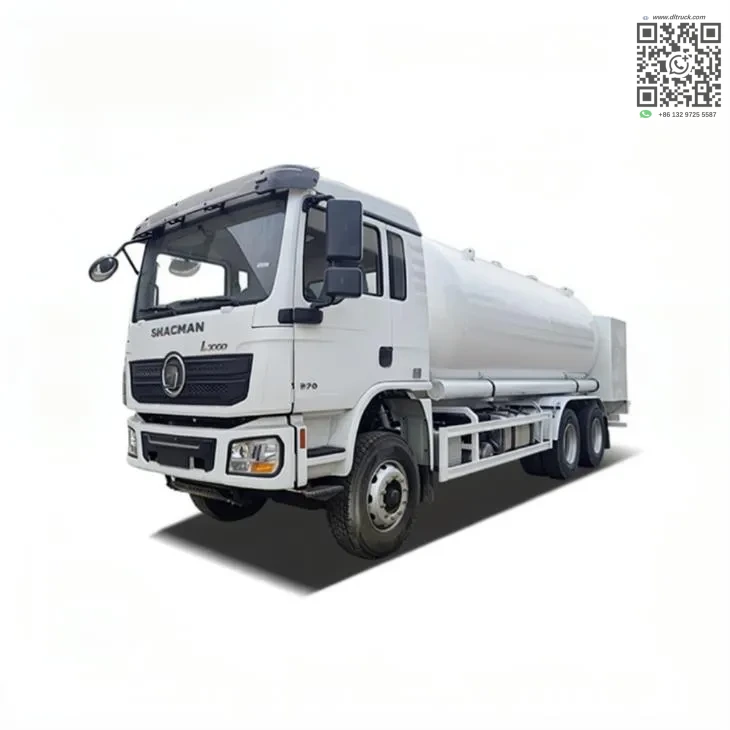

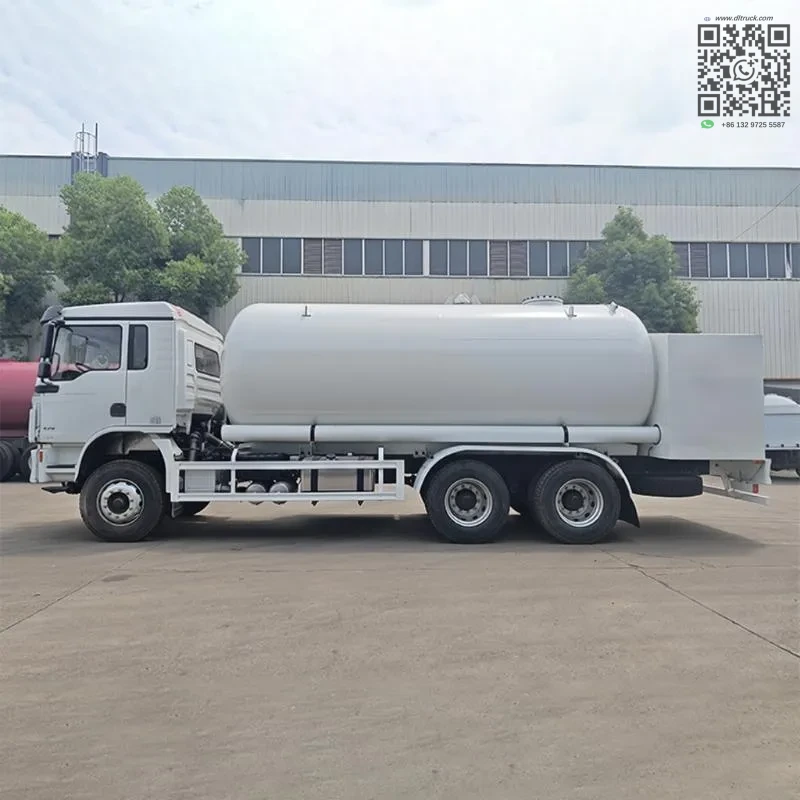

Chengli manufactures the 20 CBM LPG cylinder refilling truck. This unit fills liquefied petroleum gas cylinders from a onboard tank. The vehicle carries a 20 cubic meter tank built from Q345R carbon steel.

The design allows on-site propane cylinder refilling operations. The truck dispenses LPG through an integrated dispenser system with a 15-meter self-retracting filling hose and a REGO adapter A7791A.

Key Features.

The refilling truck integrates several components into one mobile unit.

• 20 CBM horizontal cylindrical tank with 10mm plate thickness.
• DN450 manhole (18 inch) for internal access.
• LPG pump for liquid transfer operations.
• Ball floating level gauge positioned at tank rear.
• 1pc LPG dispenser for precise cylinder filling.
• Integrated mechanical ticket printer for receipts.
• 15m self-retracting filling hose.
• REGO adapter A7791A (1 inch) filling gun.
• DN80 safety valves on the tank.
• DN50 liquid line and DN50 gas line.

Performance and Configuration.

The tank holds 20 CBM of liquefied petroleum gas. The rated filling weight is 10 tons or 10,000 kg of propane per load. The medium density range is 500 to 590 kg per cubic meter.

The operating temperature range is Not provided in source. The designed pressure is 1.61 MPa or 16.1 bar. The hydraulic test pressure reaches 2.21 MPa or 22.1 bar. Air tightness testing is verified at 1.61 MPa or 16.1 bar.

Corrosion allowance is 1 mm for the Q345R carbon steel construction. Standard equipment includes a pressure gauge, thermometer, two emergency shut-off valves. One tool box, anti-static grounding tape, valve box, LPG pump, two steel fenders, and two fire extinguisher holders.

Applications.

This truck serves LPG distribution companies and gas cylinder suppliers. Operators use the unit at filling stations, depot sites, and outdoor cylinder filling locations. The self-contained design eliminates the need for fixed pipeline infrastructure.

The mechanical ticket printer records each transaction automatically. Delivery records are printed alongside customer receipts for documentation purposes.

Why Choose This Truck.

Chengli produces this LPG refilling truck directly from the factory. The manufacturing base is located in China. Buyers receive competitive pricing by purchasing straight from the supplier without intermediary markup.

The complete refilling system fits on a single vehicle with overall dimensions of 9109 by 2480 by 3420 mm. The integrated dispenser, hose reel, printer, and pump are all factory-mounted and tested before shipment.
