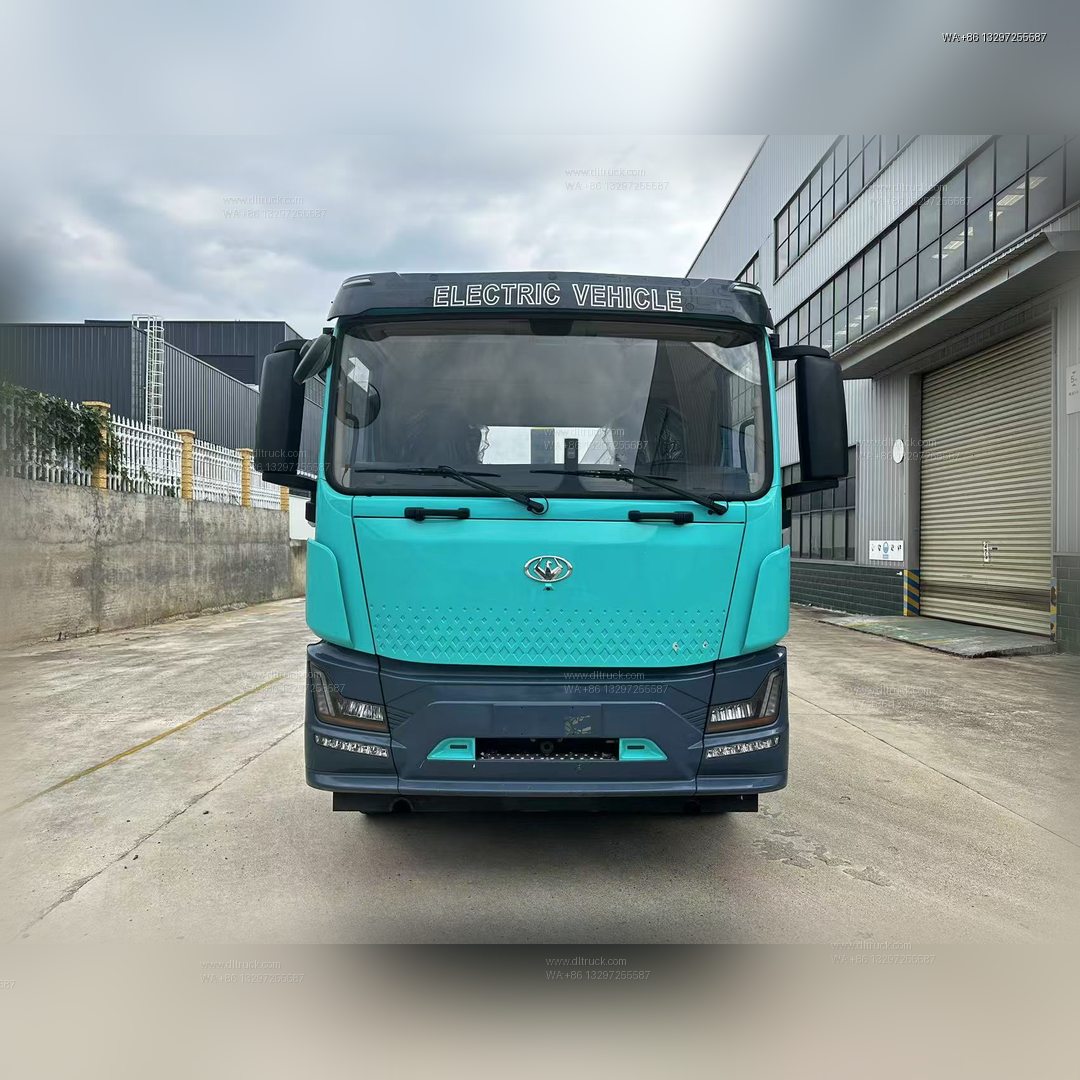

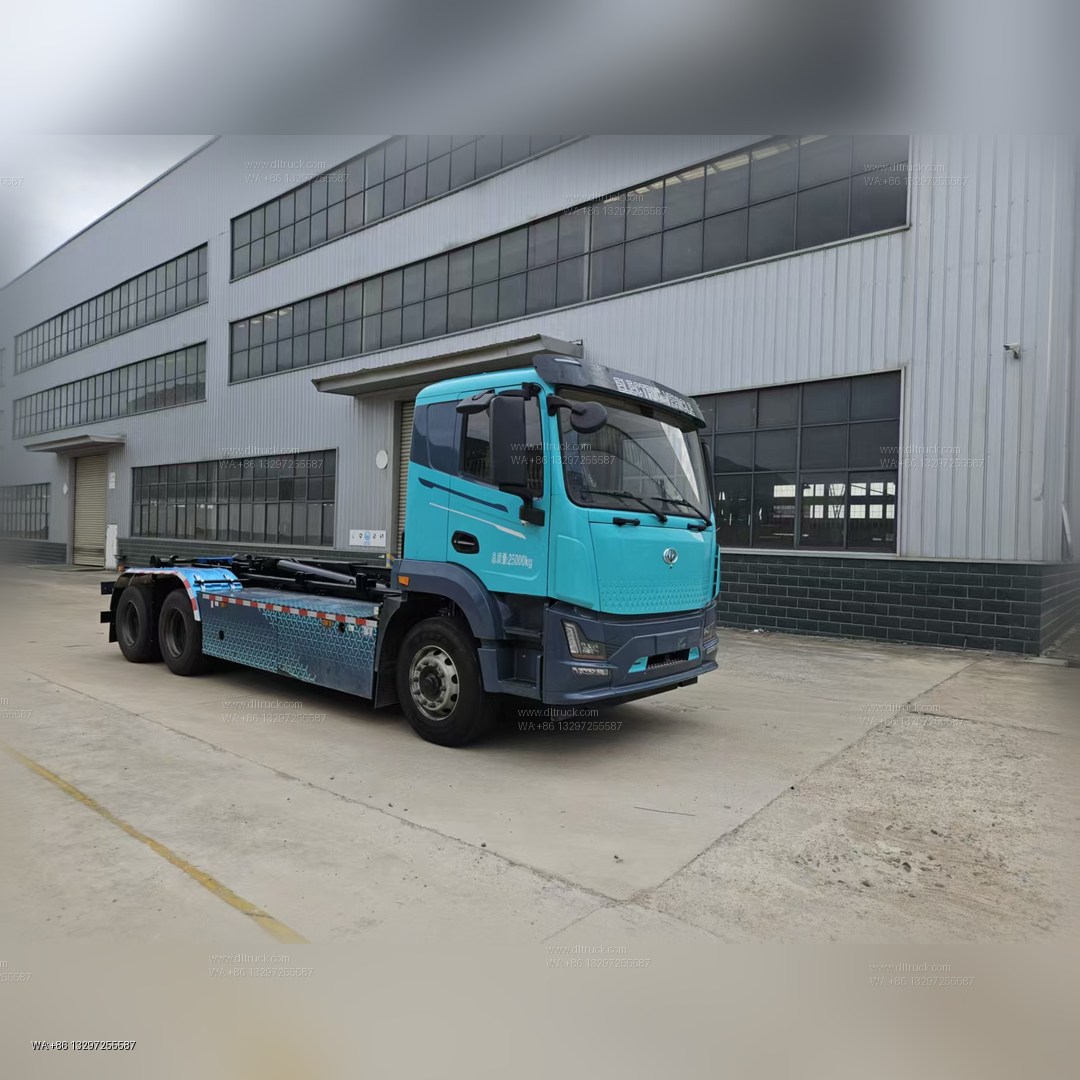

Electric Hook Lift Truck for Waste Transfer

The Electric Hook Lift Truck is purpose-built for efficient waste container transportation and transfer station operations. Developed on a self-designed 25-ton electric chassis, the vehicle integrates the chassis and hook lift system into one coordinated platform to improve stability, durability, and operating efficiency. Combined with a Shanghai Waler hook lift system, intelligent electronic controls, and a high-capacity electric drivetrain, it provides a clean and productive solution for municipal sanitation fleets and waste transfer operators.

Electric Hook Lift Truck Overview

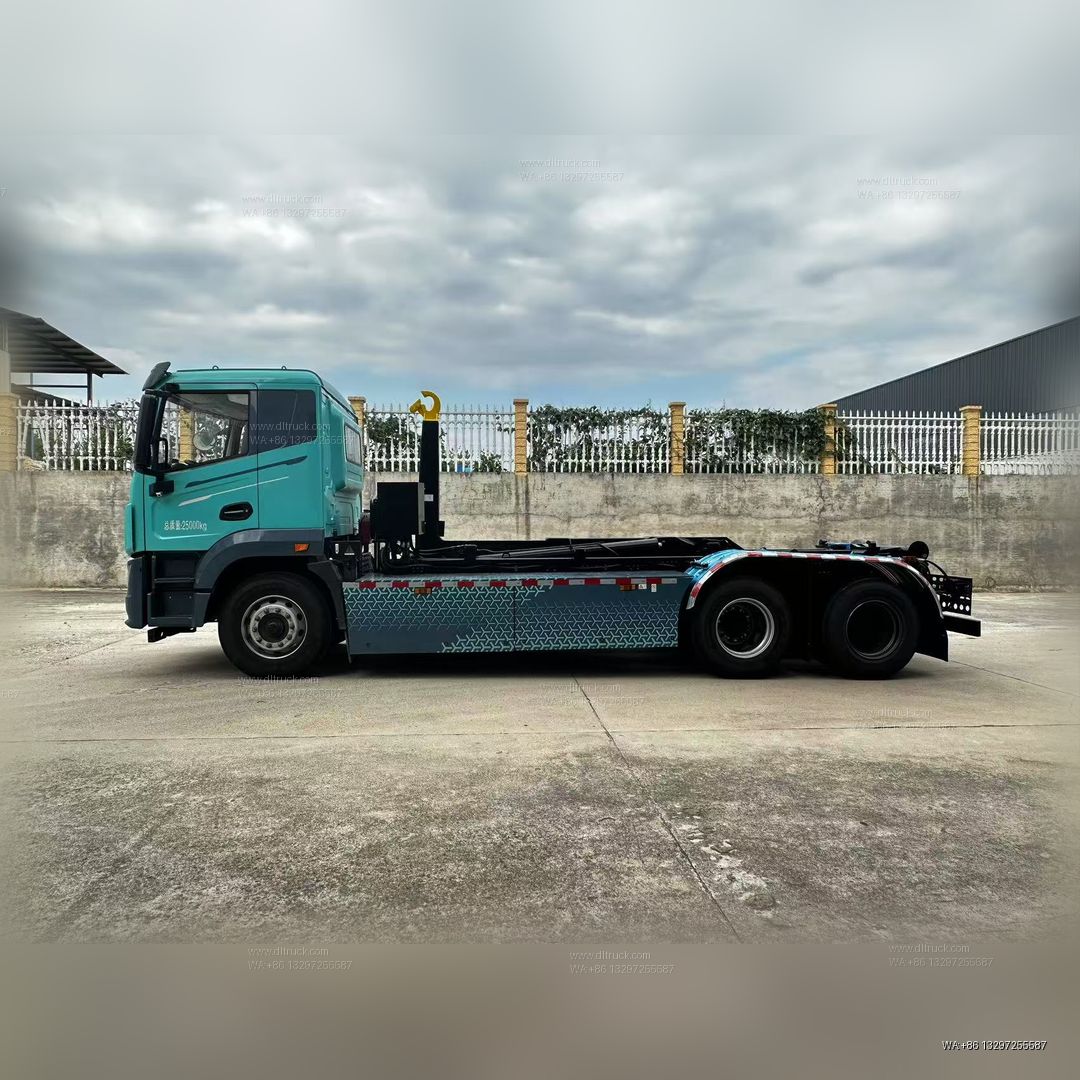

The Electric Roll Off Truck combines a heavy-duty electric chassis with a high-strength hydraulic hook lift mechanism. The integrated vehicle architecture reserves installation space and hydraulic interfaces during chassis development, eliminating unnecessary modifications while preserving structural strength and corrosion protection. Furthermore, operators can complete loading, unloading, tipping, and container replacement from inside the cab or by using the standard wireless remote controller.

Electric Hook Lift Truck with 20T Lifting Capacity

The hydraulic hook lift system handles containers weighing up to 20 tons, making it suitable for municipal waste transfer stations and large refuse containers. The telescopic hook arm provides smooth loading while maintaining stable alignment throughout the loading cycle.

Technical highlights include:

• 20T lifting capacity
• 52° dumping angle
• 100L hydraulic oil tank
• 30MPa hydraulic pressure
• 1,100mm hook arm sliding travel
• ≤52s loading cycle
• ≤65s unloading cycle
• ≤57s tipping cycle

Electric Hook Lift Truck with Premium European Hydraulic Components

The hydraulic system uses internationally recognized components to improve durability and operating precision. The multi-way control valve comes from Hydrocontrol (Italy), while the high-pressure piston pump uses an OMFB 84cc axial piston pump. In addition, the balance valves and hydraulic locks are supplied by Rexroth (Germany) or HBS (Italy).

Additional premium components include:

• Hydrocontrol pneumatic 5-section valve
• OMFB axial piston hydraulic pump
• Rexroth or HBS balance valves
• German or Italian high-pressure hydraulic hoses
• Imported hydraulic cylinder seals
• Hydraulic container locking system

Electric Hook Lift Truck with Intelligent Electric Power System

Powered by a 244.39kWh lithium iron phosphate battery, the vehicle delivers zero-emission operation for demanding municipal applications. The permanent magnet synchronous motor develops 250kW rated power and 360kW peak power, providing strong torque during container lifting and road transport.

Performance specifications include:

• 244.39kWh battery capacity
• 250/360kW motor output
• 480/1100Nm torque
• 265km driving range
• Maximum speed of 89km/h
• Dual DC fast charging
• 30%–80% charging in about 60 minutes

Electric Hook Lift Truck with Intelligent Vehicle Control

The intelligent operating system combines a touchscreen control display, integrated body controller, and wireless remote controller into one coordinated platform. Operators can monitor hydraulic status, sensor signals, and fault information in real time. Meanwhile, the system uploads operational data to remote fleet management platforms for faster diagnostics and improved maintenance planning.

Electric Hook Lift Truck Designed for Long Service Life

The hook lift frame uses S500MC high-strength steel with multiple cast-steel load-bearing components, including the hook head and critical stress points. Additionally, electrophoretic coating protects structural parts against corrosion for an expected service life of 6–8 years under normal operating conditions.

Safety features include:

• Automatic mechanical gravity hook lock
• Hydraulic safety interlock logic
• Load holding valves
• Container cushioning system
• Rear anti-lift support rollers
• Hydraulic container locking device
• 360° surround-view camera
• Hill-start assist
• Electronic parking brake
• Auto Hold

Applications

• Municipal waste transfer stations
• Household waste transportation
• Refuse container transport
• Roll-off waste container handling
• Industrial waste collection
• Construction waste transport
• Recycling transfer facilities
• Environmental sanitation projects
• Urban waste logistics
• Public sanitation departments

Optional Configurations

• Left-hand drive or right-hand drive
• Customer-specific paint scheme
• Fleet management system
• Additional warning lights
• Customized hook height
• Different container compatibility

FAQ

What is the lifting capacity?

The hydraulic hook lift system provides a 20-ton lifting capacity for heavy waste transfer containers.

Which hydraulic brands are used?

The truck uses premium European components including Hydrocontrol hydraulic valves, OMFB hydraulic pumps, and Rexroth or HBS balance valves.

Can one operator complete loading and unloading?

Yes. One operator can control loading, unloading, tipping, and container exchange from inside the cab or with the supplied wireless remote controller.

How fast does the battery recharge?

The dual DC fast charging system charges the battery from 30% to 80% in approximately 60 minutes under suitable charging conditions.

Conclusion

The Electric Hook Lift Truck combines a 20-ton hydraulic hook lift, premium European hydraulic components, a high-capacity electric power system, and intelligent electronic controls into a modern waste transfer solution. Its integrated chassis design, remote operation, corrosion-resistant construction, and advanced safety features help sanitation operators improve productivity while supporting zero-emission municipal waste transportation. Contact us today for customized configurations and global export solutions.
