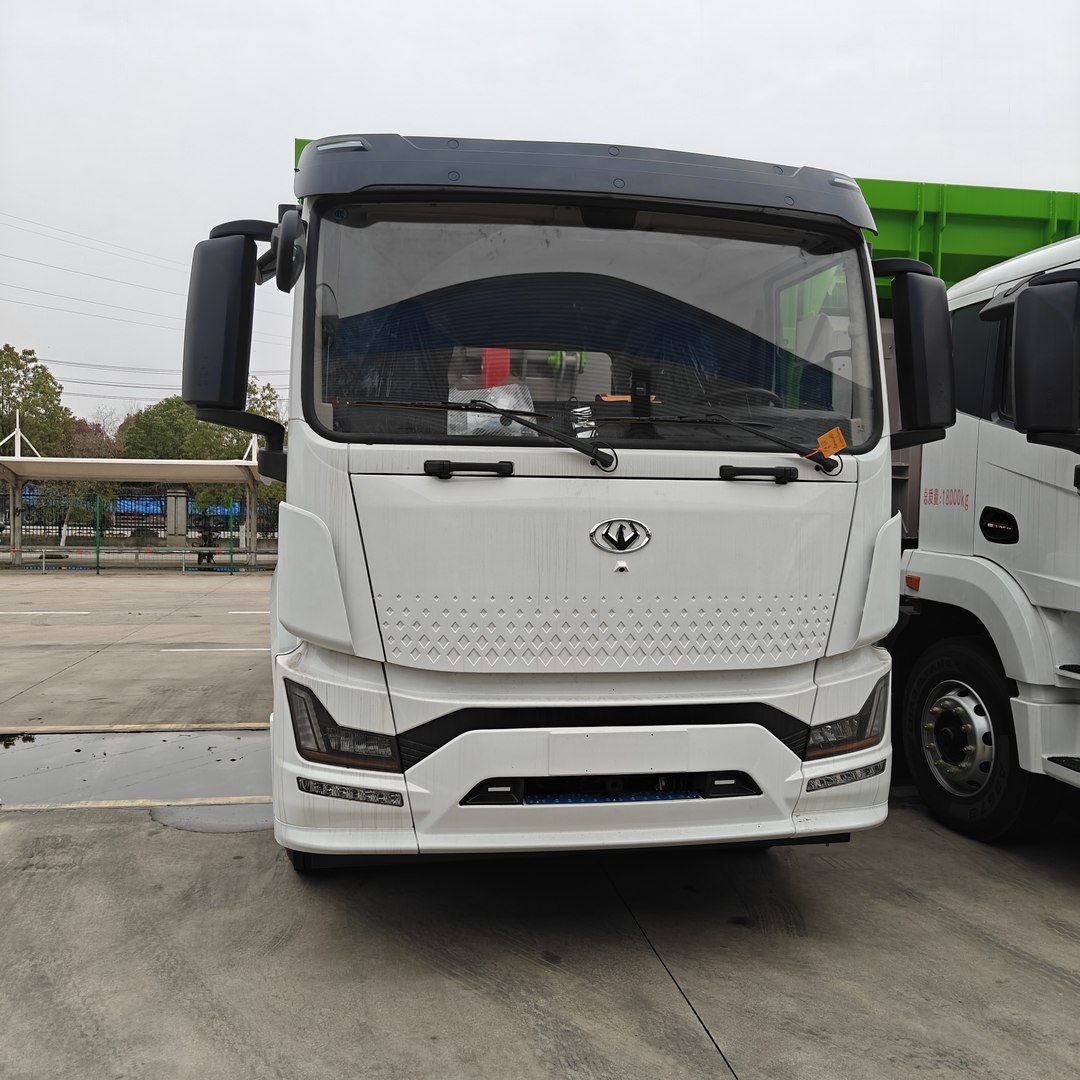

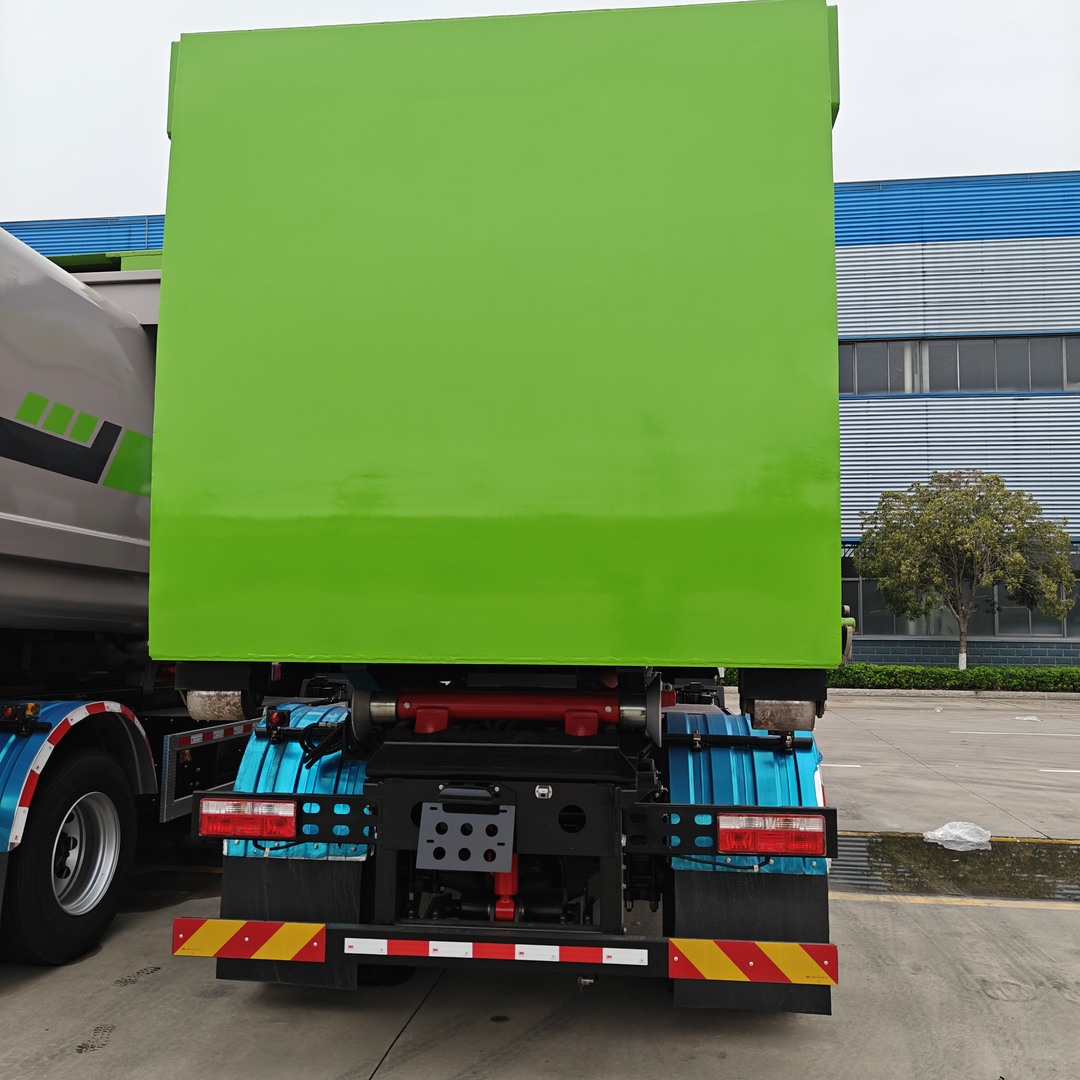

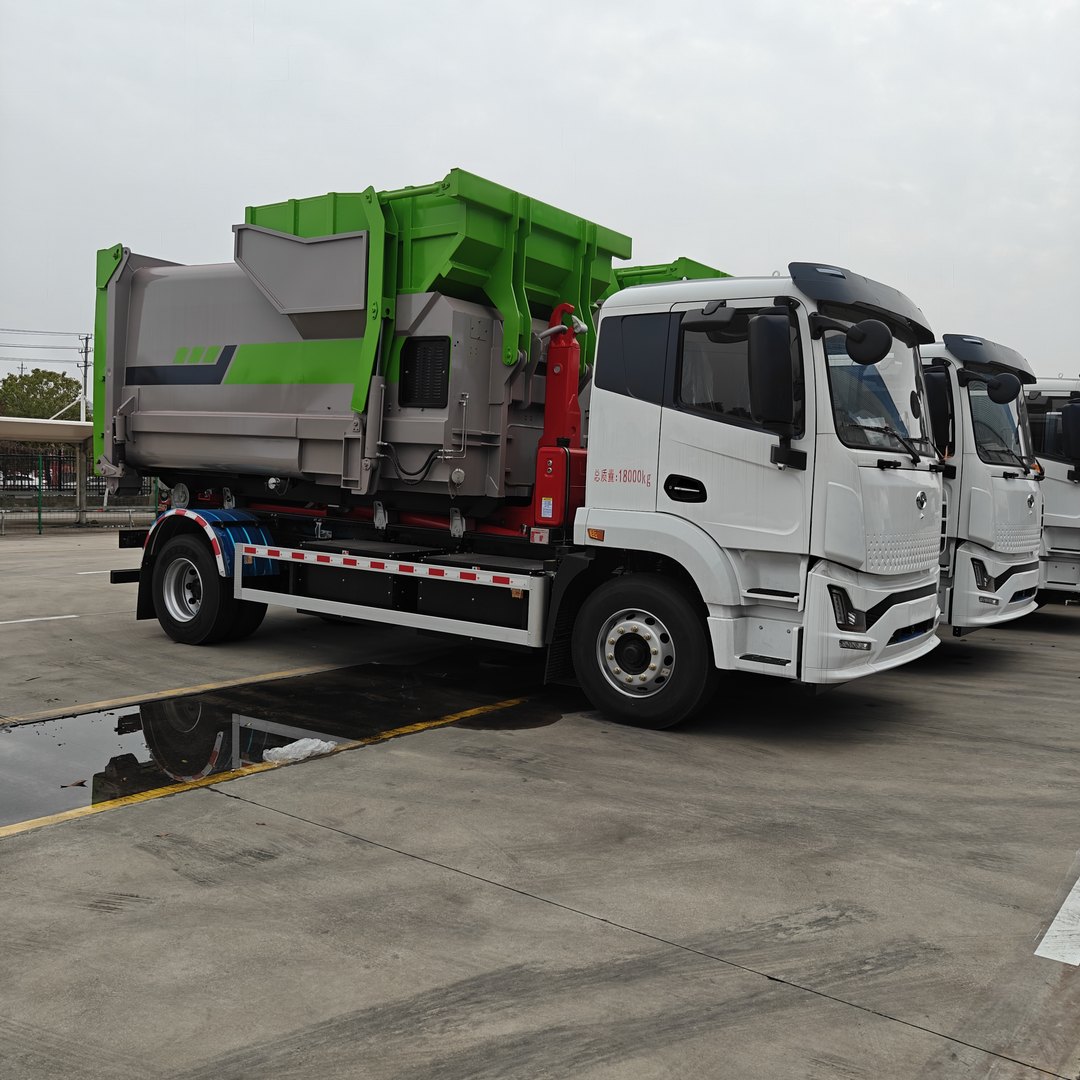

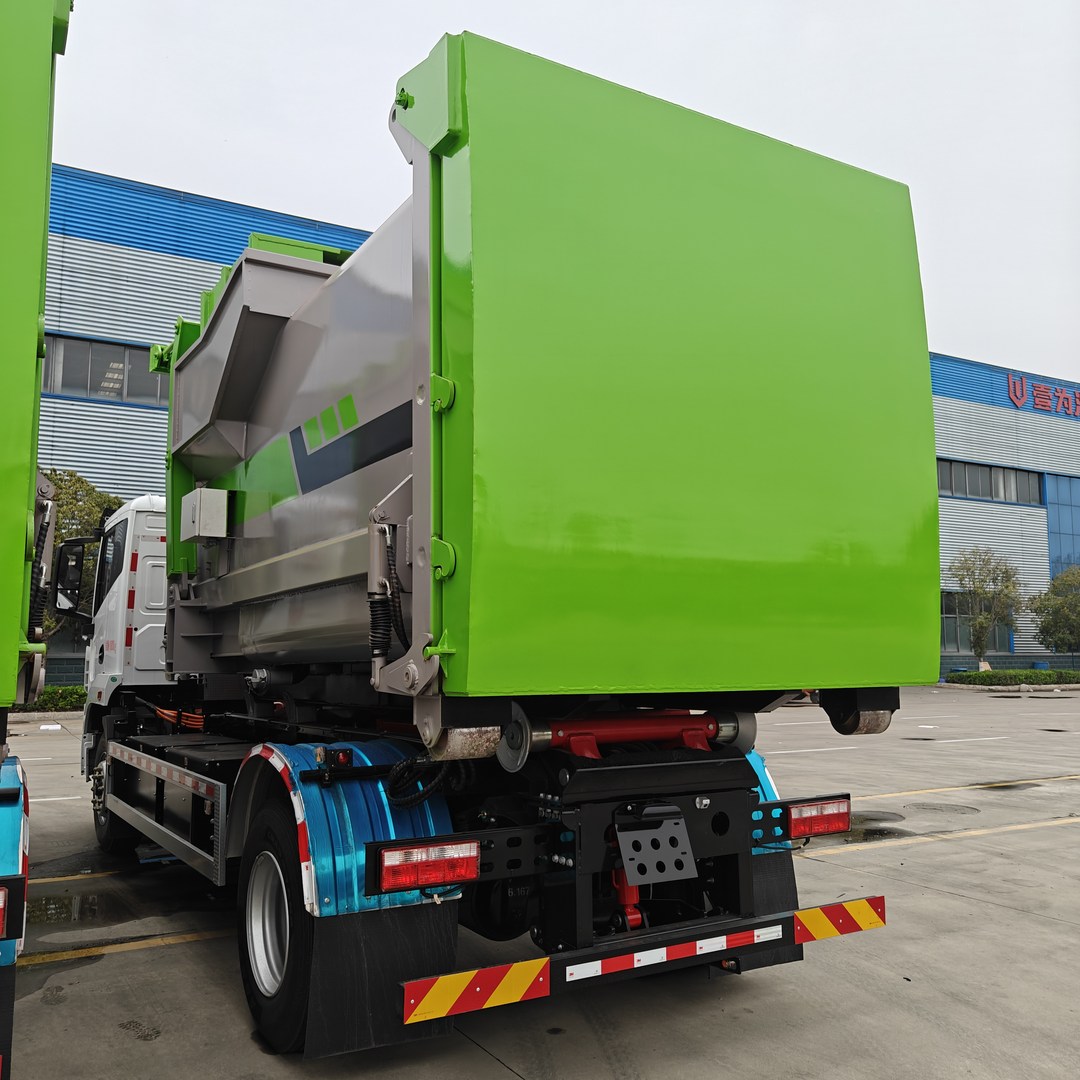

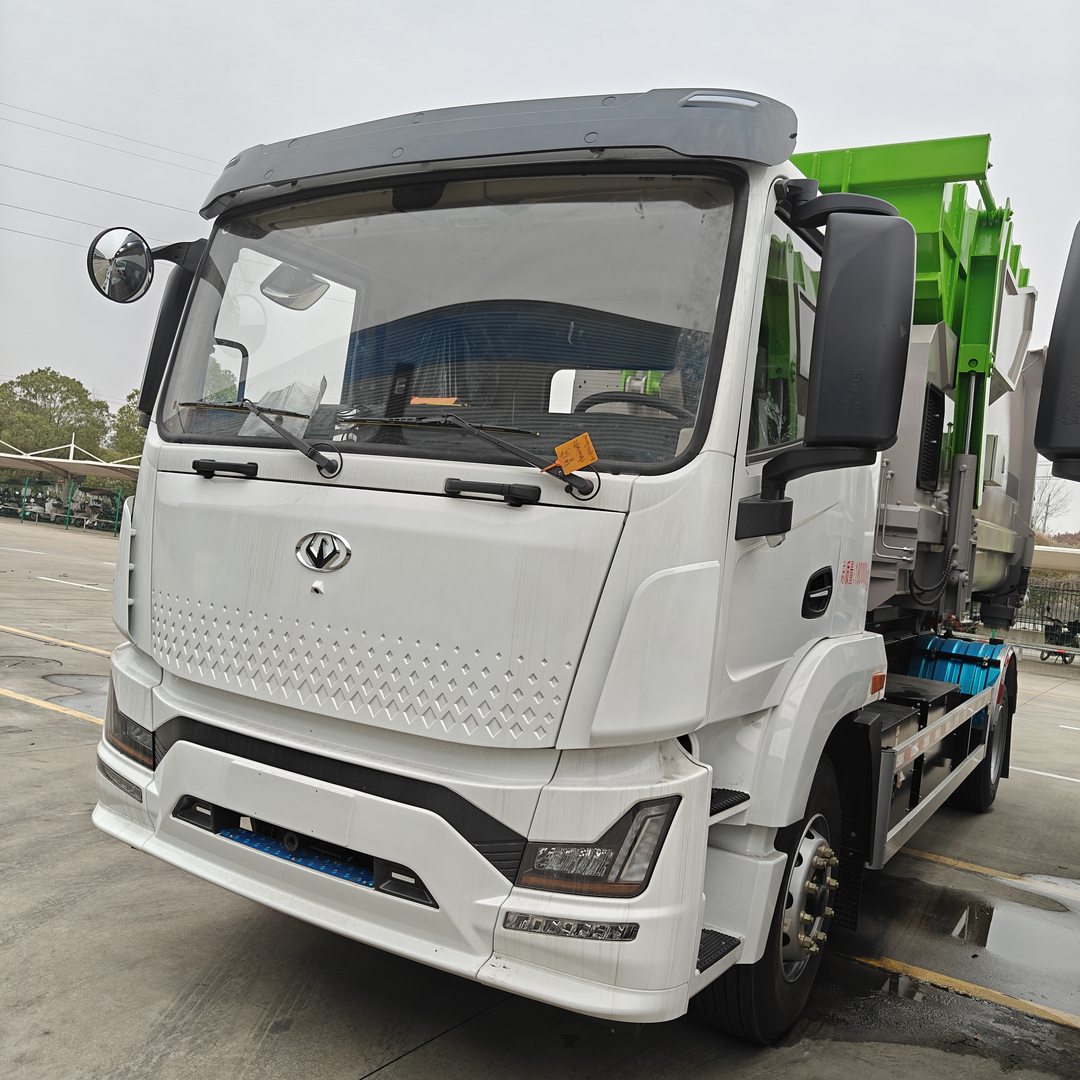

18T Electric Hook Lift Garbage Truck
✔ 420km Driving Range
✔ 16T Hook Lifting Capacity
✔ Fast 35min Charging
✔ Intelligent Vehicle Control
Product Specifications
| Item | Specification |
|---|---|
| Drive Type | 4×2 |
| Chassis Brand | IV AUTO |
| Motor Type | Permanent Magnet Synchronous Motor |
| Motor Power | 120kW Rated / 200kW Peak |
| Transmission | Electric Drive System |
| Container Capacity | Optional / Customizable |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Battery Capacity | 231.1 / 271.06 / 229.63kWh |
| Wheelbase | 4800mm |
| Tire | Heavy-Duty Tires |
| Fuel Type | Pure Electric |
| Emission | Zero Emission |
| Overall Dimension | 7560 × 2550 × 3130mm |
| Gross Vehicle Weight | 18000kg |
| Payload Capacity | 8020kg / 8370kg |
| Maximum Speed | 90km/h |
| Driving Range | 360–420km |
| Charging Time | 35 Minutes (SOC 30%-80%) |
| Hook Lift Capacity | 16T |
| Hook Height | 1570mm |
| Loading Time | ≤50s |
| Unloading Time | ≤65s |
| Dumping Time | ≤60s |
| Application | Municipal waste collection, transfer stations, container transport |
Product Description
Looking for the right truck?
Need a cleaner and more efficient waste transportation solution that reduces fuel costs while improving fleet productivity?
Electric sanitation fleets are becoming a practical choice for municipalities and contractors looking for lower operating costs, quieter operation, and better environmental performance.
Product Overview
The 18T Electric Hook Lift Garbage Truck combines a fully integrated electric chassis with an intelligent loading system for modern waste collection operations.
Built on the self-developed 18-ton electric platform, this vehicle integrates both chassis and body structure into one coordinated system. Powered by a permanent magnet synchronous motor with up to 200kW peak output, the truck delivers stable power and smooth operation for demanding municipal applications.
With 360–420km driving range and fast charging capability, the truck can support daily sanitation routes while reducing operating expenses.
Why This Truck Stands Out

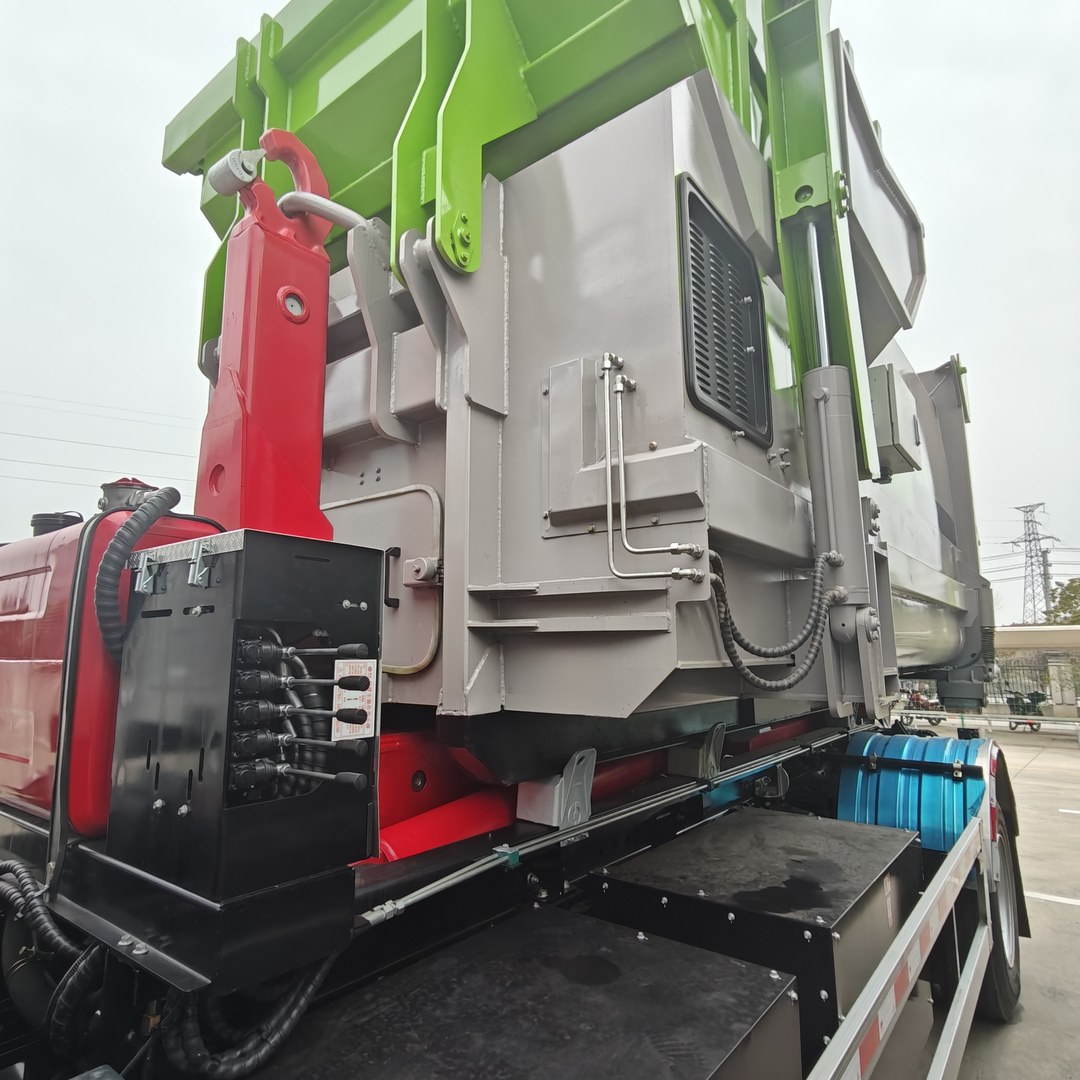

16T Heavy-Duty Hook Lift Capacity
The hook arm system delivers lifting capacity up to 16 tons, handling heavy containers with reliable performance.
Smart Vehicle Operation
The electric hook lift garbage truck uses a control mode combining:
- Display screen
- Electronic controller
- Wireless remote control
Operators can manage loading and unloading with simplified controls and better working visibility.
Fast Charging Performance
Battery charging from 30% to 80% takes approximately 35 minutes, reducing waiting time and improving vehicle utilization.
Integrated Safety System
Several operating safety measures are built into the system:
- Container support locking
- Hook locking protection
- Safety operation sequencing
- Stability protection system
- Intelligent operational monitoring
Corrosion Resistant Structure
Critical components such as:
- Hook assemblies
- Support bases
- Rollers
- Guide wheels
receive anti-corrosion treatment and electrostatic powder coating for longer service life.
High Vehicle Utilization
The detachable container design allows one vehicle to operate with multiple containers, increasing fleet efficiency.
The 18T electric hook lift garbage truck provides an effective solution for urban sanitation operations moving toward cleaner transportation.
Where It Works Best
✔ Municipal sanitation departments
✔ Waste transfer stations
✔ Urban waste collection
✔ Industrial park cleaning
✔ Environmental service projects
✔ Construction waste transport
✔ Public facility operations
✔ Smart sanitation fleets
Chassis Benefits
The integrated electric chassis platform provides practical operating advantages:
- Lower energy consumption
- Reduced maintenance cost
- Quiet operation
- Stable power delivery
- Smooth acceleration performance
- Reduced downtime
- High operating efficiency
Electric drive systems also eliminate many routine engine maintenance requirements.
Export & Custom Options
- CKD / SKD shipment available
- Left-hand drive / Right-hand drive
- Customized company logos
- Multiple container sizes available
- Different battery capacities
- Country-specific configurations
- Fleet management integration options
- Smart sanitation platform access
FAQ
What is the driving range of this truck?
Depending on battery configuration, driving range reaches approximately 360–420km.
How long does charging take?
Charging from 30% to 80% SOC takes around 35 minutes.
What lifting capacity does the hook system support?
The hook lift system can handle up to 16 tons.
Can the truck connect to fleet management systems?
Yes. The vehicle can connect with smart sanitation management platforms for real-time fleet monitoring.
Request A Quote
Need pricing, battery options, shipping costs, or customized configurations?
Send your inquiry today and get an electric sanitation solution built for your market requirements.
