shacman truck mounted crane
- Heavy Lifting with Powerful Torque
- Longer Reach, Fewer Repositions
- Heavy-Duty Power for Tough Conditions
- Adjustable Stability for Every Jobsite
- Lift and Transport in One Solution
Product Specifications
| Item | Specification |
|---|---|
| Drive Type | 6×4 Left-Hand Drive |
| Chassis Brand | SHACMAN X3000 |
| Engine | Weichai WP10.340E32 |
| Horsepower | 340HP |
| Transmission | Heavy-Duty Manual Transmission |
| Crane Type | Hydraulic Truck Mounted Crane |
| Maximum Lifting Capacity | 12T |
| Maximum Lifting Moment | 220kN·m |
| Maximum Hydraulic Outreach | 15.2m |
| Slewing Angle | 360° |

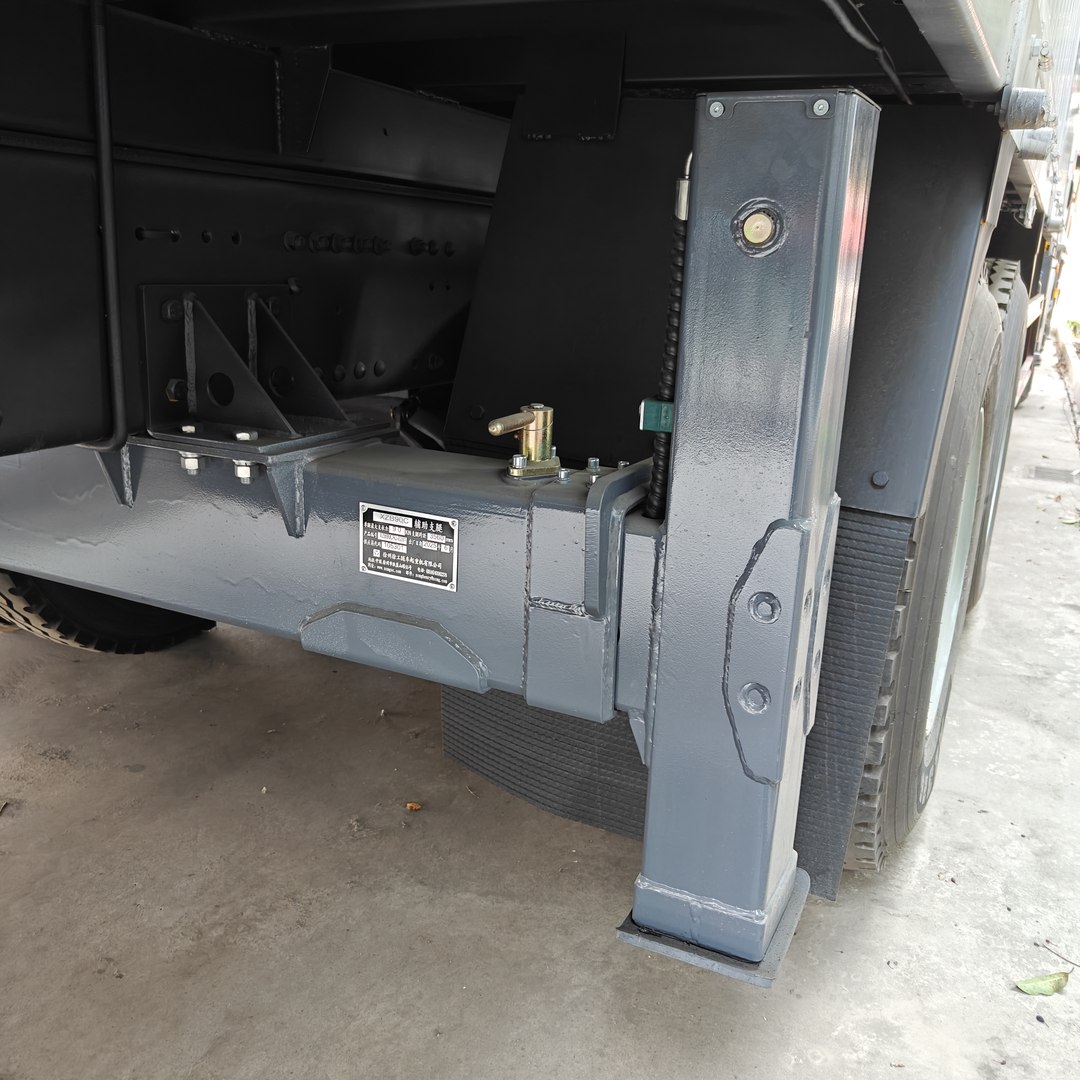

| Stabilizer Spread | 2480–6080mm |
| Hydraulic Pressure | 26MPa |
| Recommended Pump Capacity | 50+50L/min |
| Hydraulic Oil Tank | 120L |
| Crane Weight | 3400kg |
| Wheelbase | 4350+1300mm |
| Gross Vehicle Weight | 25,000kg |
| Curb Weight | 17,000kg |
| Rated Payload Capacity | 8,000kg |

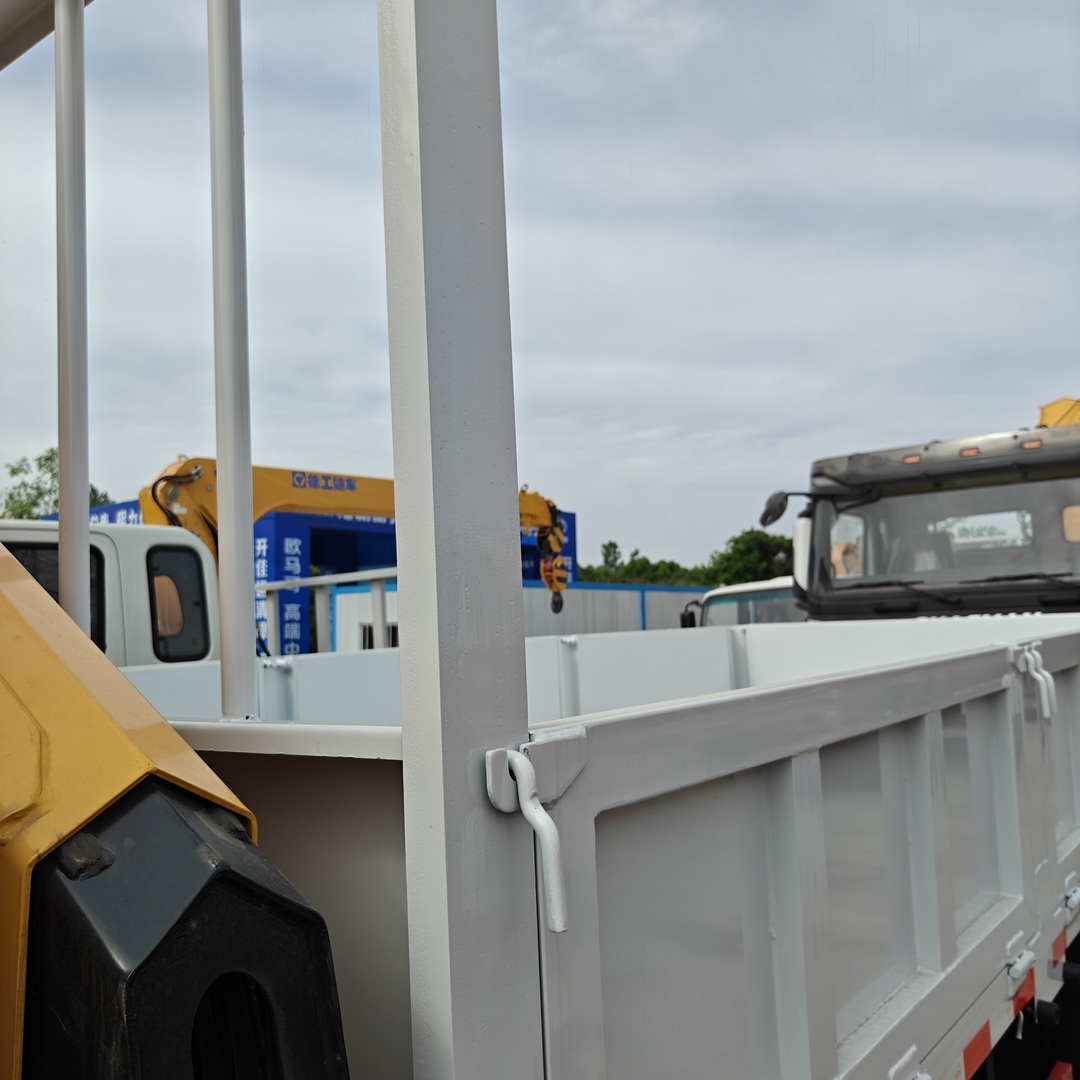

| Cargo Box Size | 7000 × 2500 × 600mm |

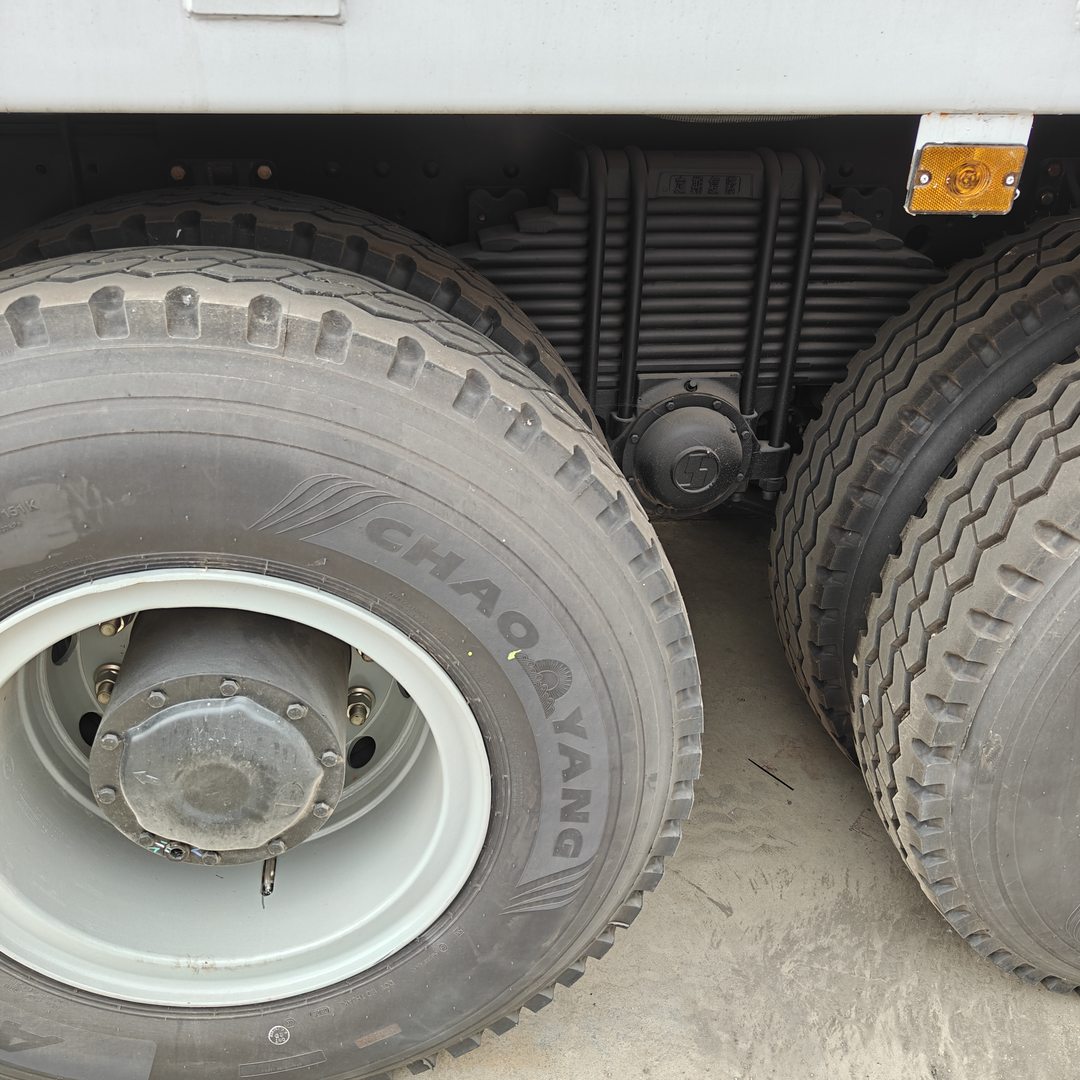

| Tire | 12.00R20 |
| Tire Quantity | 10+1 |
| Front Axle | 5T |
| Rear Axle | 10T + 10T |
| Fuel Type | Diesel |
| Emission | Euro III |
| Overall Dimension | 11000 × 2500 × 3800mm |
| Application | Construction, Equipment Handling, Logistics, Industrial Operations |
Product Description
Looking for the right truck?
Need a truck that can lift heavy materials, transport cargo, and work continuously on demanding jobsites?
The SHACMAN X3000 6×4 12T Truck Mounted Crane combines lifting performance and transport capability in one heavy-duty platform. It helps reduce equipment costs while improving operational efficiency for large projects.
Product Overview

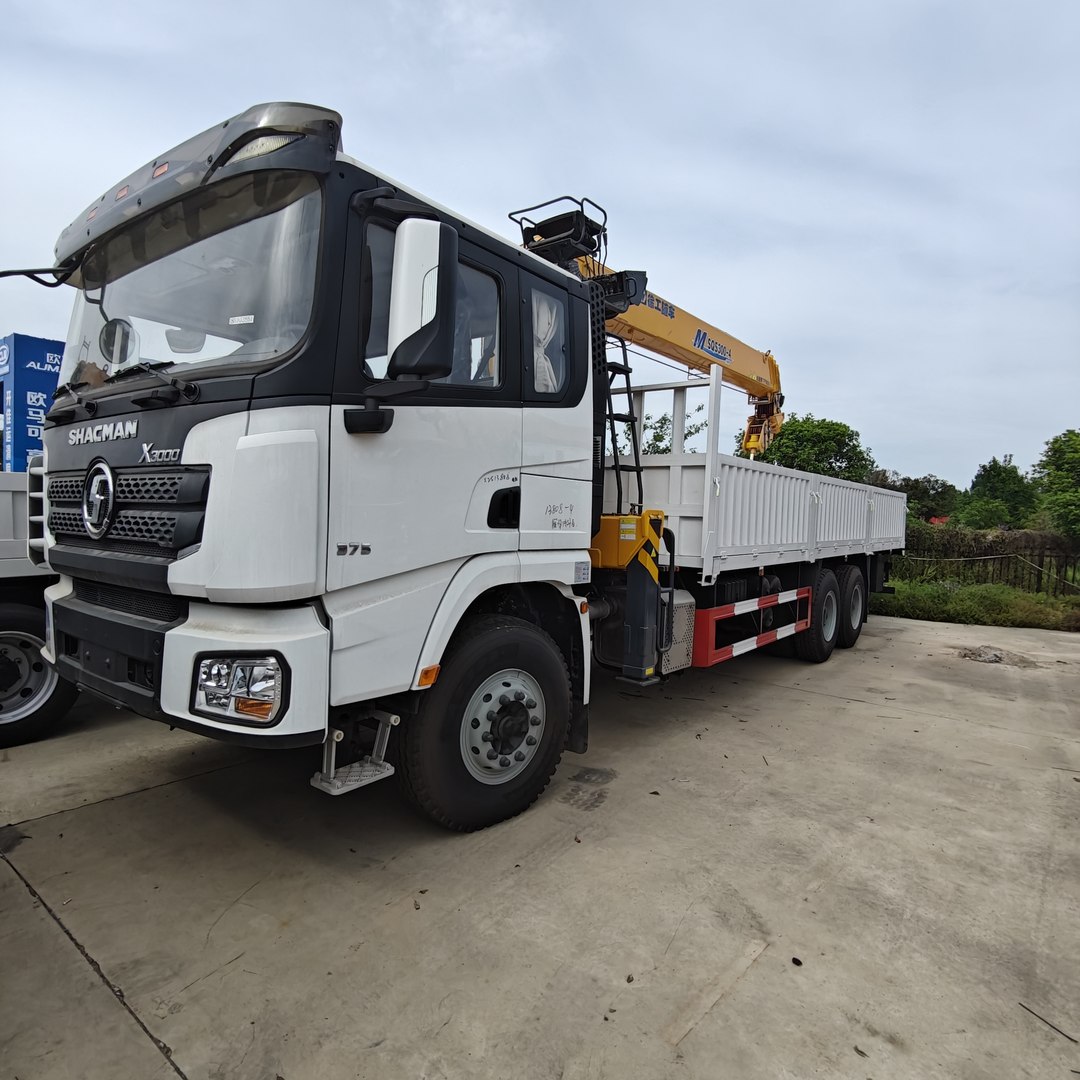

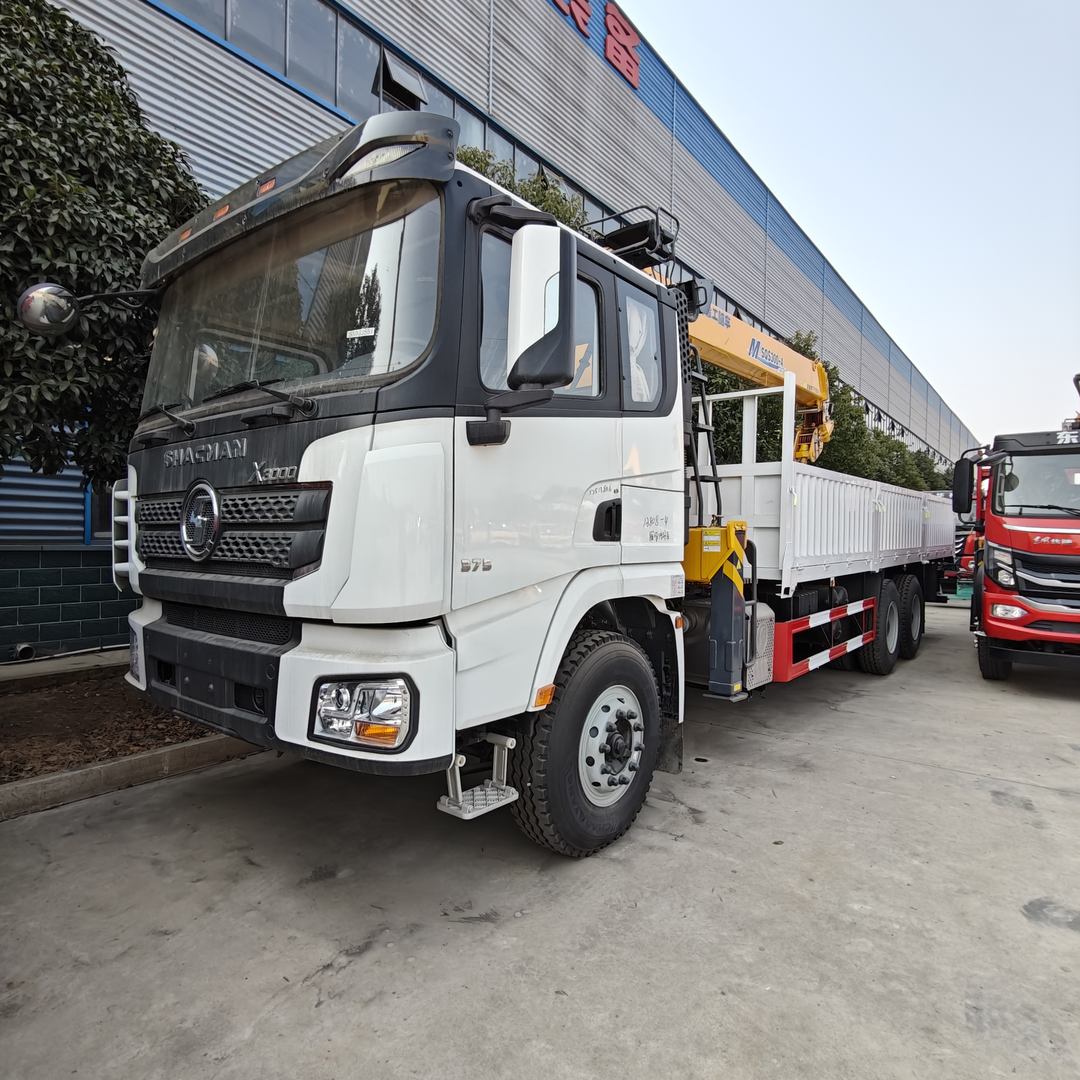

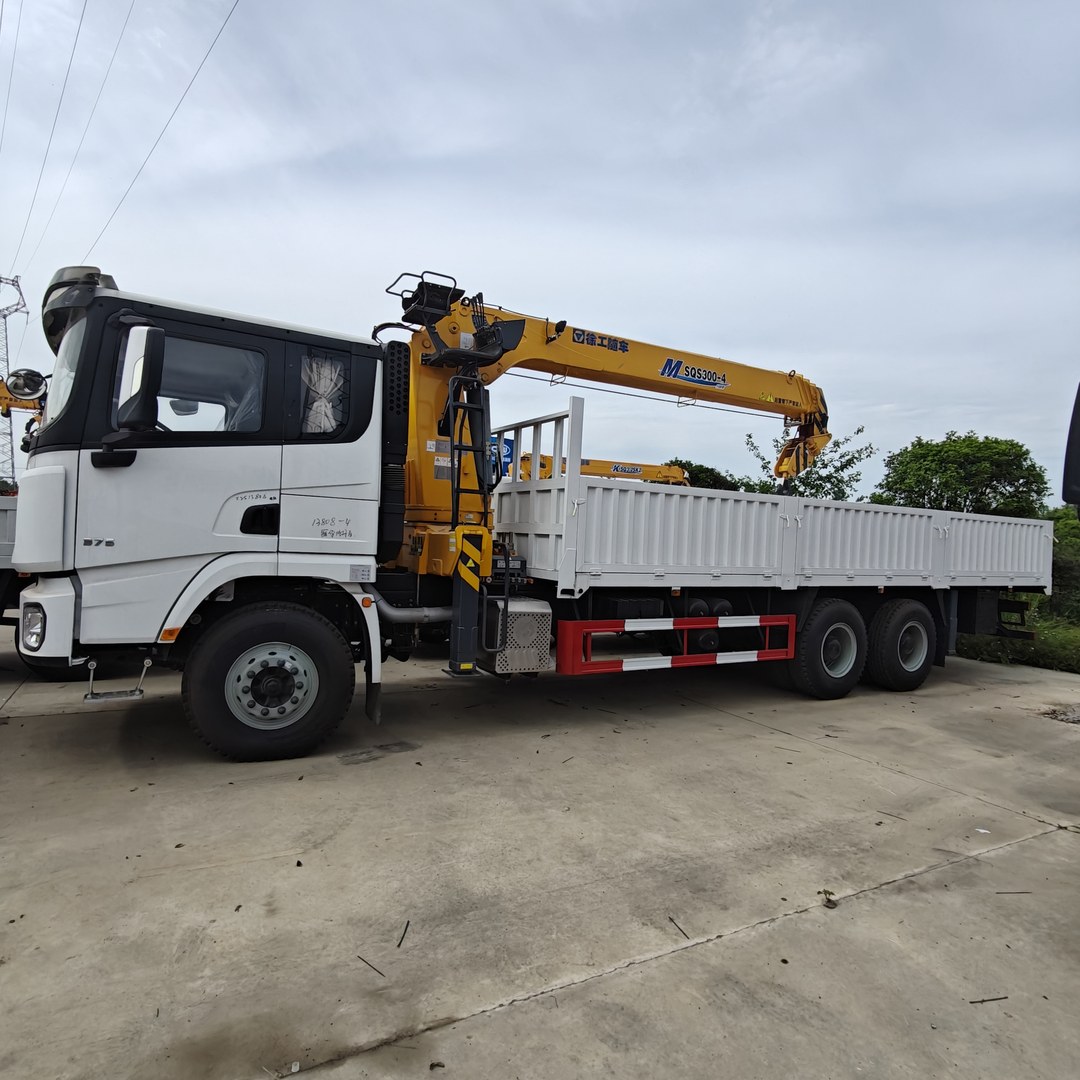

The SHACMAN X3000 6×4 12T Truck Mounted Crane is built for customers handling heavy lifting tasks in construction, logistics, infrastructure, and industrial operations.
Mounted on the SHACMAN X3000 heavy-duty chassis and powered by a 340HP Weichai engine, the vehicle delivers stable driving performance under heavy load conditions. The hydraulic crane system offers a maximum lifting capacity of 12 tons and hydraulic outreach reaching 15.2 meters.
With full 360° rotation capability and a large cargo platform, the truck can lift, transport, and position materials efficiently across different work environments.
The SHACMAN X3000 6×4 12T Truck Mounted Crane delivers strong lifting performance while maintaining reliable transport capability.
Why This Truck Stands Out
Heavy Lifting Capability
The crane handles loads up to 12 tons, making it suitable for machinery installation, steel structures, construction materials, and industrial cargo.
Long Working Reach
A hydraulic outreach of 15.2 meters provides greater coverage and reduces the need for constant vehicle repositioning.

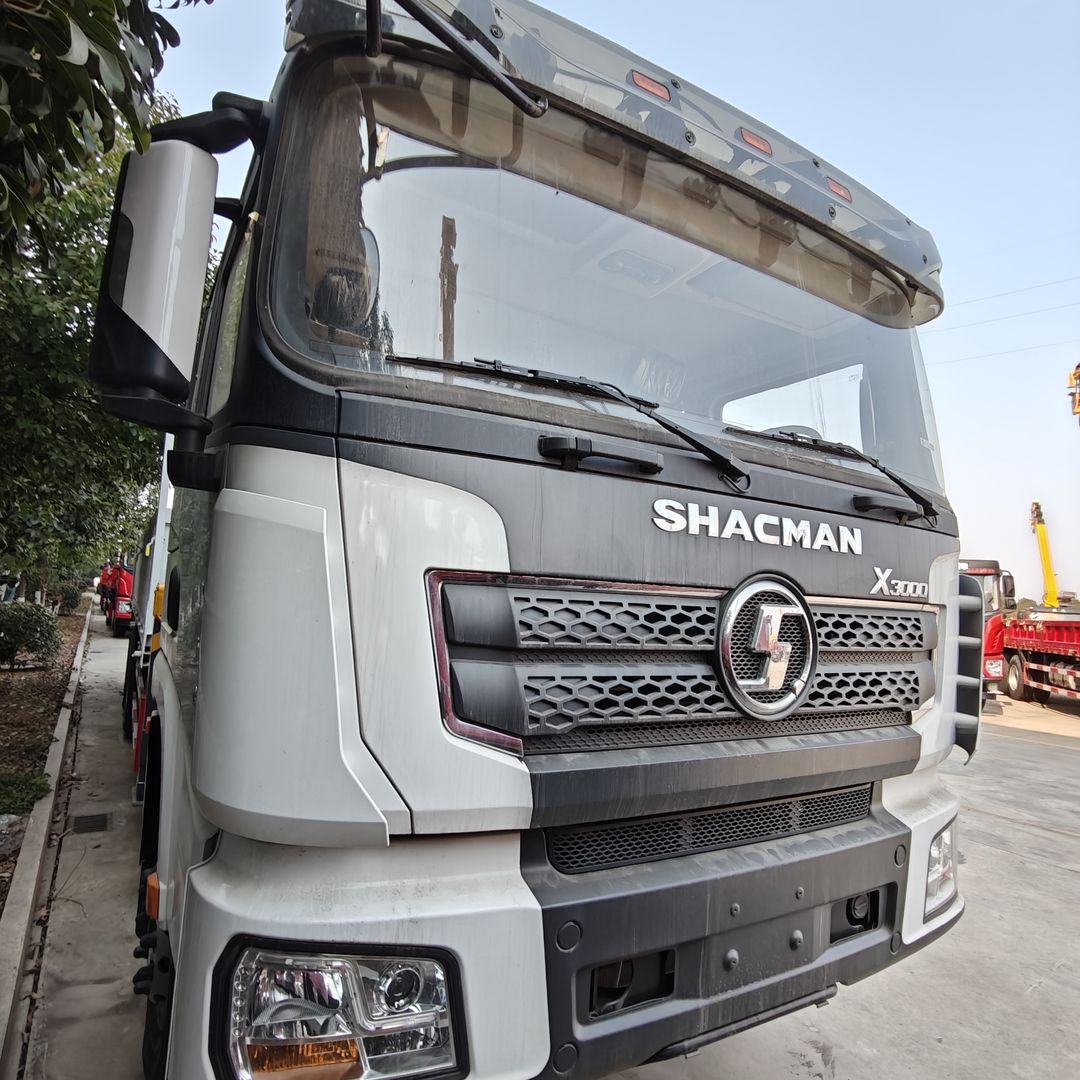

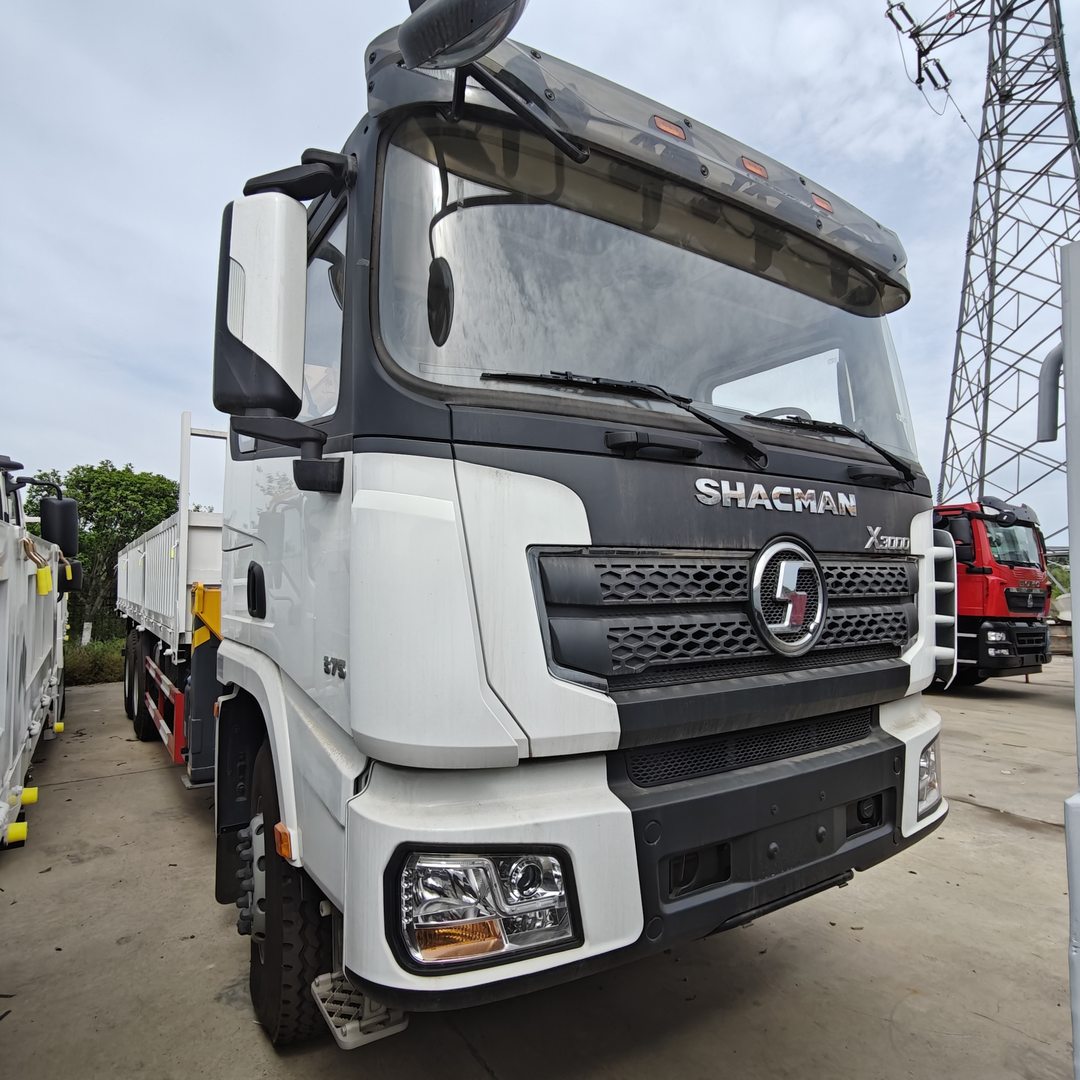

Heavy-Duty Chassis Platform
The SHACMAN X3000 chassis combines strong frame construction with durable axle systems for demanding work conditions.

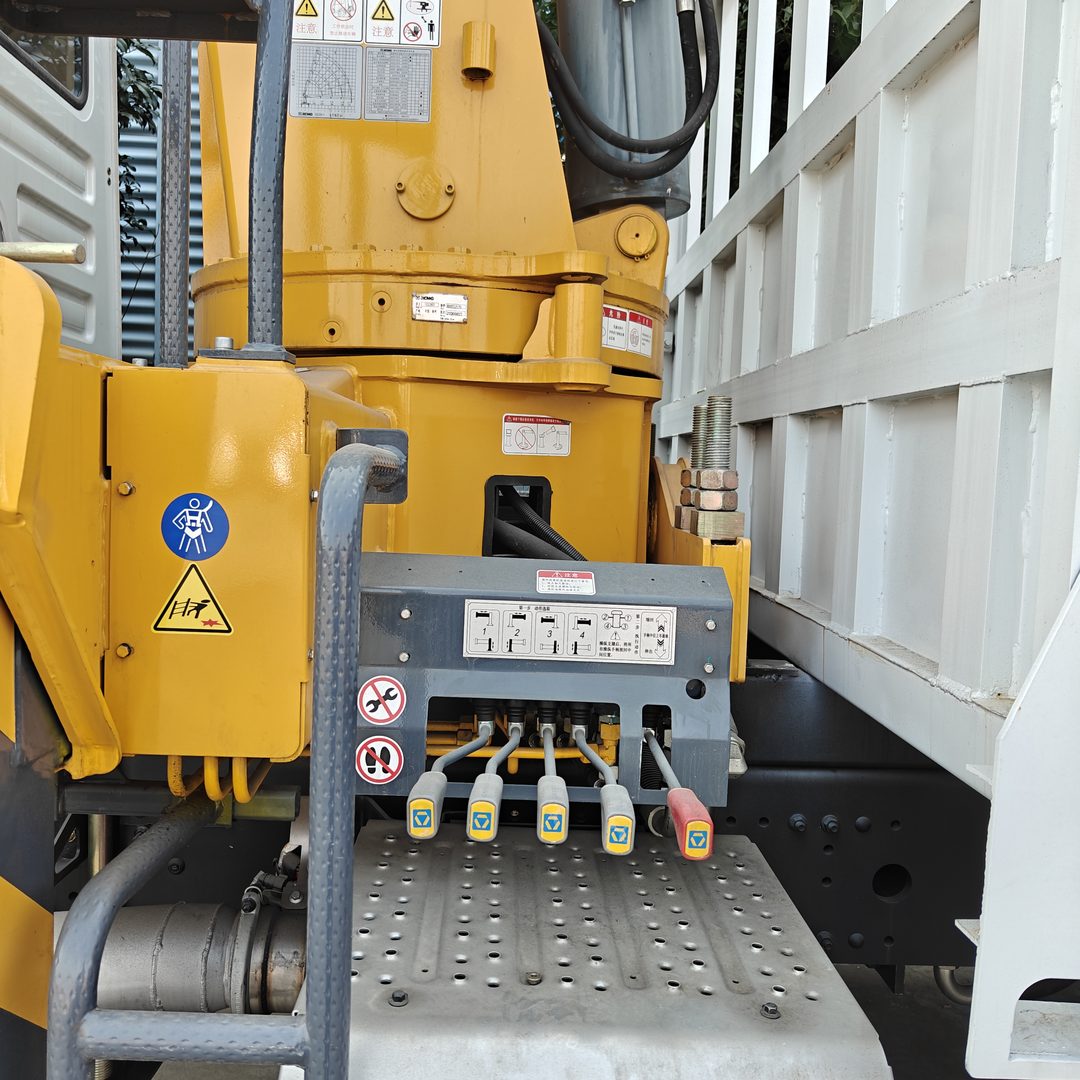

Stable Hydraulic Performance
The hydraulic system operates at 26MPa and uses a dual-flow pump configuration for smooth lifting and accurate load control.
The SHACMAN X3000 6×4 12T Truck Mounted Crane provides a practical solution for customers requiring lifting power and transport efficiency in one machine.
Where It Works Best
✔ Construction projects
✔ Industrial equipment installation
✔ Logistics operations
✔ Infrastructure development
✔ Steel structure handling
✔ Port terminals
✔ Mining projects
✔ Municipal engineering work
✔ Heavy cargo transport
Chassis Benefits
The SHACMAN X3000 platform provides practical advantages for demanding operations:
- Strong load carrying performance
- Reliable engine output for heavy work
- Convenient maintenance access
- Good spare parts availability
- Fuel-efficient powertrain performance
- Stable operation on long-distance routes
The reinforced axle configuration also improves durability during continuous heavy-load applications.
Export & Custom Options
Available customization options include:
- CKD / SKD supply
- Left-hand drive or right-hand drive
- Company logo customization
- Cargo body customization
- Different crane brands
- Straight boom or folding boom options
- Additional hydraulic outriggers
- Color customization
- Euro emission standard options
- Optional lifting attachments
Optional attachments:
- Work basket
- Log grabber
- Brick clamp
- Winch system
- Drilling equipment
FAQ
Q1: What is the maximum lifting capacity of this truck crane?
A: The crane provides a maximum lifting capacity of 12 tons.
Q2: What is the maximum working reach?
A: The hydraulic outreach reaches up to 15.2 meters.
Q3: Is this truck suitable for heavy industrial projects?
A: Yes. The heavy-duty chassis and hydraulic system make it suitable for construction, mining, and industrial applications.
Q4: Can export specifications be customized?
A: Yes. Steering position, crane type, emissions, colors, and optional equipment can be customized according to market requirements.
Request A Quote
Need pricing, shipping costs, or custom options?
Send your lifting requirements, destination market, and project details. We can provide a suitable truck-mounted crane solution based on your operating needs.
