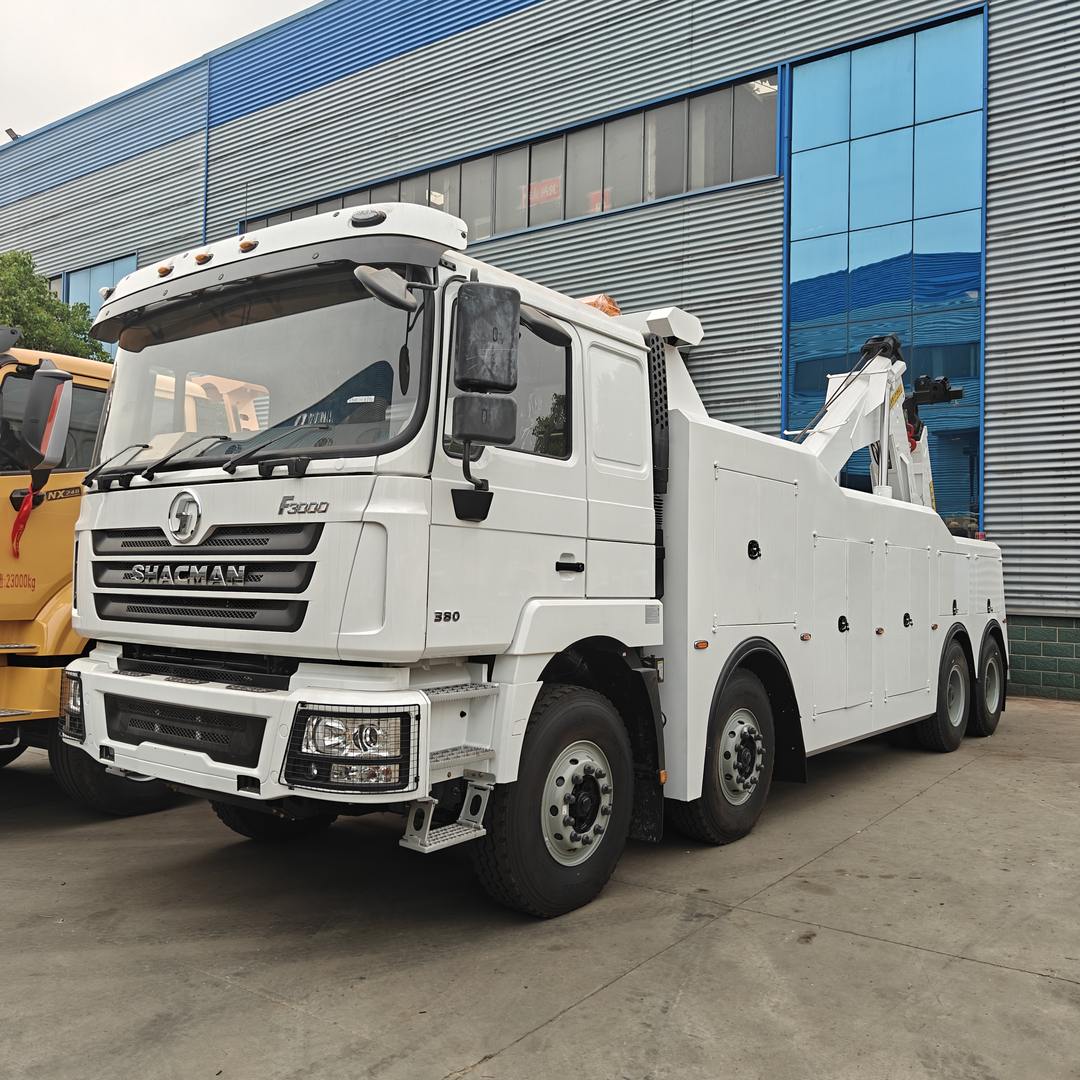

SHACMAN 41 Ton Integrated Tow Recovery Wrecker Truck
Heavy-duty integrated tow and recovery truck designed for road rescue and vehicle towing operations.
Built on SHACMAN SX5419TXJMC6Z1 4-axle chassis with multiple Weichai diesel engine options.
Equipped with integrated lifting and towing arm system for disabled vehicle recovery tasks.
Right-hand drive customization is available for export market applications.
| Item | Specification |
|---|---|
| Vehicle Type | Heavy Duty Recovery Wrecker Truck |
| Product Model | CL5410TQZ6BZQ |
| Steering Type | Right-Hand Drive (RHD) Customized |
| Drive Type | 8×4 |
| Chassis Brand | Shacman |
| Chassis Model | SX5419TXJMC6Z1 |
| Overall Dimensions (mm) | 10500 / 10900 / 11500 × 2550 × 3360 |
| Gross Vehicle Weight (kg) | 41000 |
| Curb Weight (kg) | 25160 |
| Towing Capacity (kg) | 15710 (2 persons) / 15645 (3 persons) |
| Cabin Capacity | 2 / 3 Persons |
| Wheelbase (mm) | 1800+3575+1400 / 1800+3975+1400 / 1800+4575+1400 |
| Front / Rear Overhang (mm) | 1525 / 2200 |
| Approach / Departure Angle | 16° / 12° |
| Axle Load (kg) | 7500 / 7500 / 13000 / 13000 |
| Number of Axles | 4 |
| Tire Specification | 12.00R20 18PR / 12.00R20 20PR |
| Number of Tires | 12 |
| Front Track (mm) | 2036 / 2036, 2070 / 2070 |
| Rear Track (mm) | 1860 / 1860 |
| Suspension | 14/14/12, 3/3/5 Leaf Spring |
| Fuel Type | Diesel |
| Emission Standard | Euro VI |
| ABS | Equipped |
| Max Speed (km/h) | 89 / 100 |
| Engine Model | WP9H310E62 |
| Engine Displacement | 8.8L |
| Engine Power | 228 kW |
| Horsepower | 310 HP |
| Engine Model | WP9H336E62 |
| Engine Displacement | 8.8L |
| Engine Power | 247 kW |
| Horsepower | 335 HP |
| Engine Model | WP10H400E62 |
| Engine Displacement | 9.5L |
| Engine Power | 294 kW |
| Horsepower | 400 HP |
| Engine Model | WP10H375E62 |
| Engine Displacement | 9.5L |
| Engine Power | 276 kW |
| Horsepower | 375 HP |
| Engine Model | WP9H350E62 |
| Engine Displacement | 8.8L |
| Engine Power | 257 kW |
| Horsepower | 350 HP |
| Engine Model | WP12.460E62 |
| Engine Displacement | 11.6L |
| Engine Power | 338 kW |
| Horsepower | 460 HP |
| Engine Model | WP12.430E62 |
| Engine Displacement | 11.6L |
| Engine Power | 316 kW |
| Horsepower | 430 HP |
This heavy-duty recovery wrecker truck is designed for professional highway rescue, accident recovery, and heavy vehicle towing operations.
Equipped with an integrated lifting and towing system for recovering trucks, buses, trailers, and construction equipment.

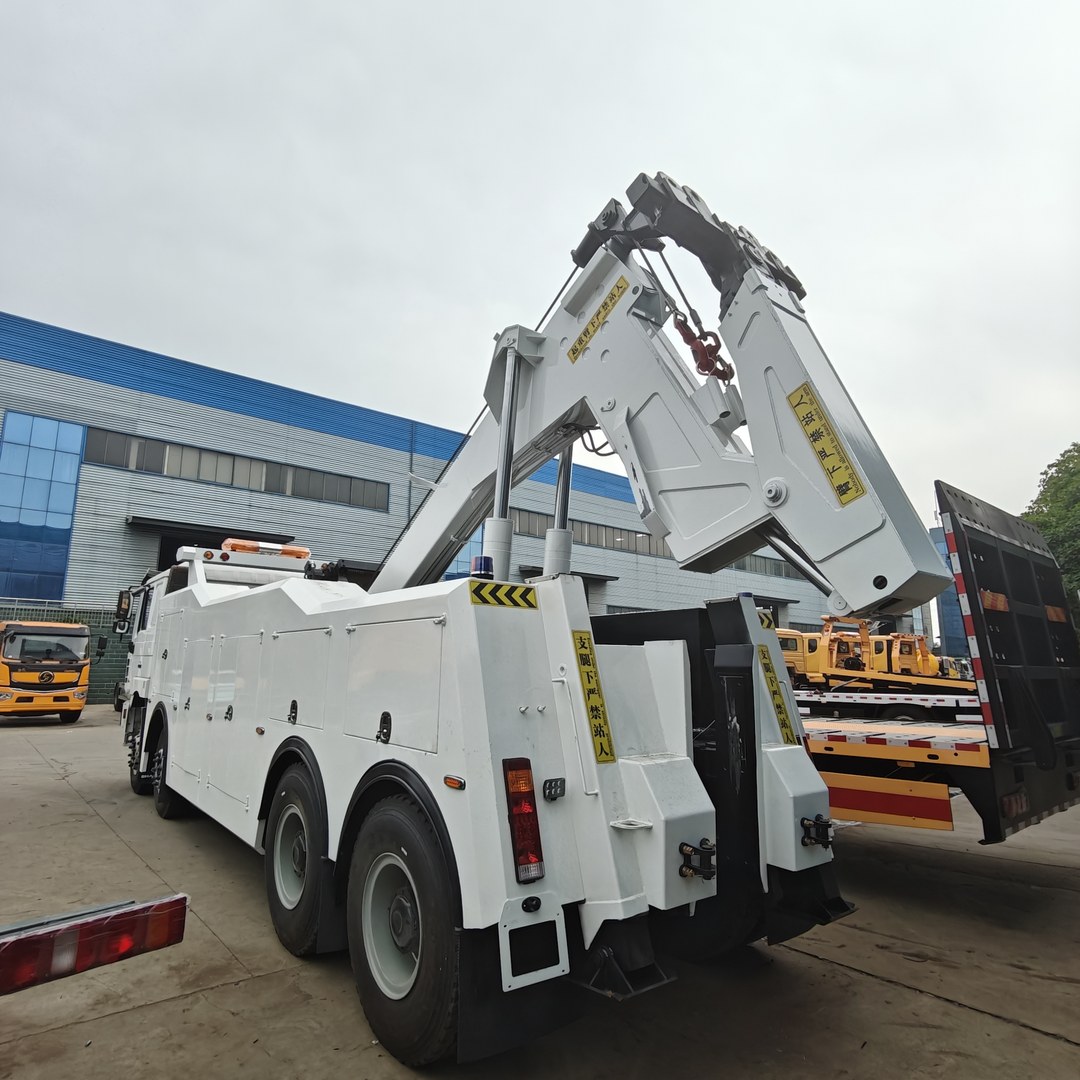

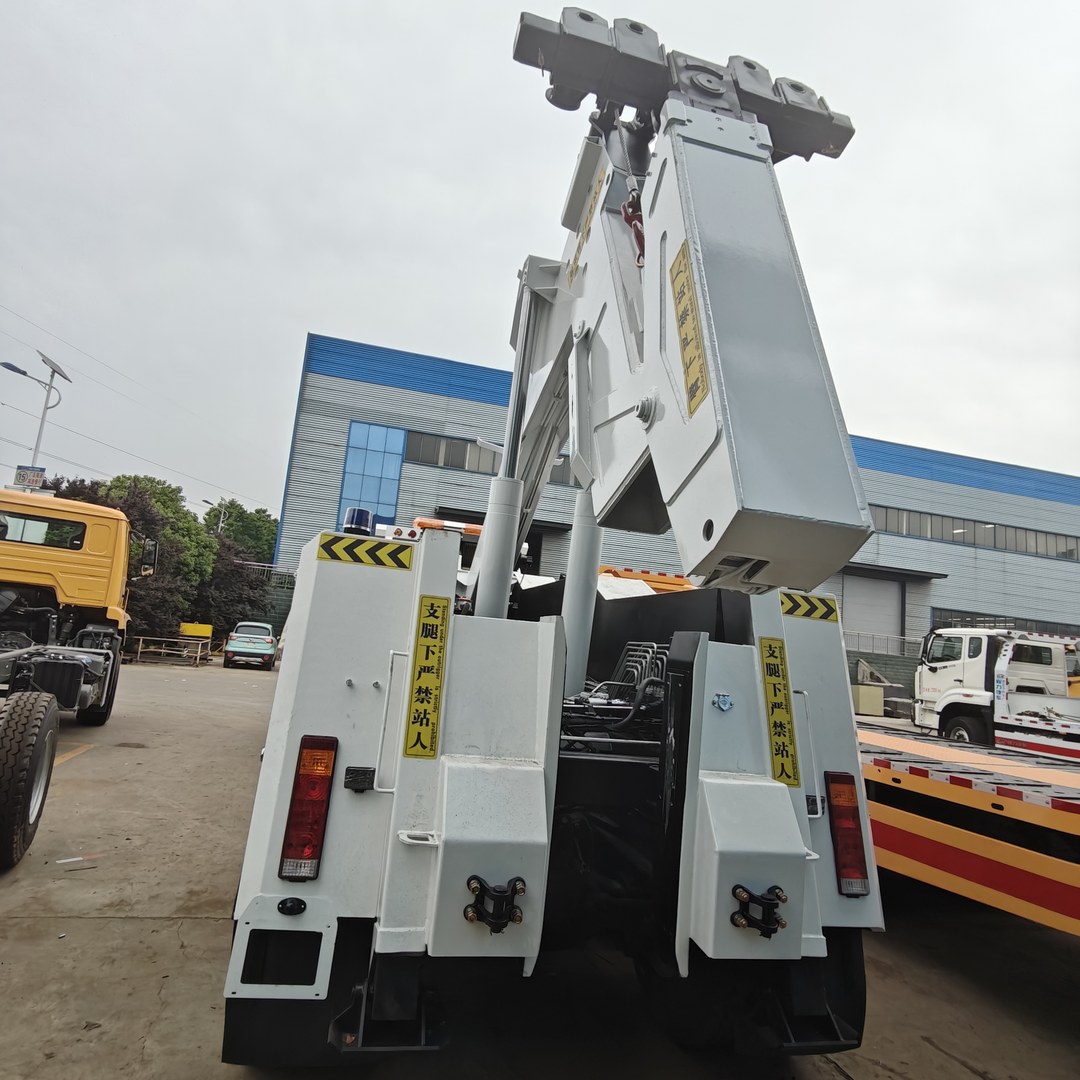

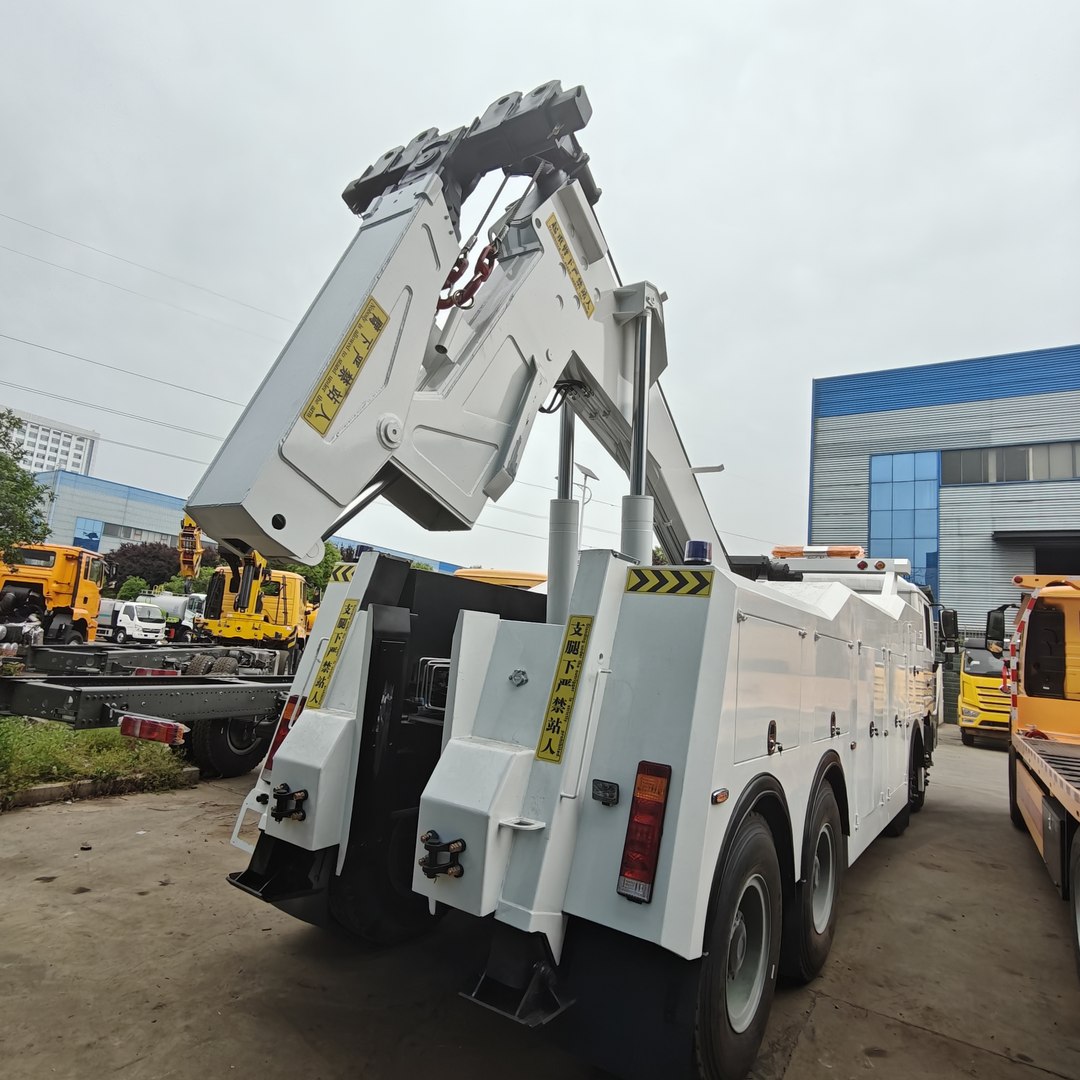

The hydraulic underlift arm provides strong lifting, dragging, and towing capability for difficult roadside recovery work.
Customized right-hand drive configuration makes it suitable for countries requiring RHD commercial vehicles.
Built on a reliable Shacman heavy-duty chassis with multiple powerful Weichai engine options up to 460HP.
Heavy-duty suspension and reinforced chassis structure improve operational stability during demanding rescue work.
Available with multiple wheelbase and body length configurations for different towing requirements.
Optional cab styles, mirrors, lighting systems, and upper body designs available for customized export solutions.
Suitable for highway rescue companies, emergency recovery fleets, logistics operators, police towing services, and industrial recovery applications.
Q: What kind of vehicles can this wrecker recover?
A: It is designed for towing and recovery of trucks, buses, trailers, and heavy commercial vehicles.
Q: Does this truck support lifting and towing functions together?
A: Yes. The integrated hydraulic lifting and towing system allows efficient multi-function recovery operations.
Q: Is this truck available in right-hand drive?
A: Yes. This model supports customized right-hand drive configuration for export markets.
Q: Is the truck suitable for highway emergency rescue work?
A: Absolutely. The powerful chassis and hydraulic towing system are built for professional highway recovery operations.
Q: Can the truck handle heavy-duty daily operation?
A: Yes. The reinforced Shacman chassis and heavy-duty suspension are designed for intensive recovery work.
Q: Are multiple engine options available?
A: Yes. Weichai engine options from 310HP to 460HP are available to match different market requirements.
Q: Is the truck stable during towing operations?
A: Yes. The 8×4 heavy-duty chassis provides excellent balance, traction, and stability.
Q: Why choose this heavy-duty recovery wrecker truck?
A: It offers powerful towing capability, durable hydraulic performance, reliable Shacman chassis strength, and customized right-hand drive solutions for professional rescue businesses.
