China Sinotruk 16 Tons Flatbed Rollback Tow Truck with 12 Tons Crane – Factory Good Price Chengli

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

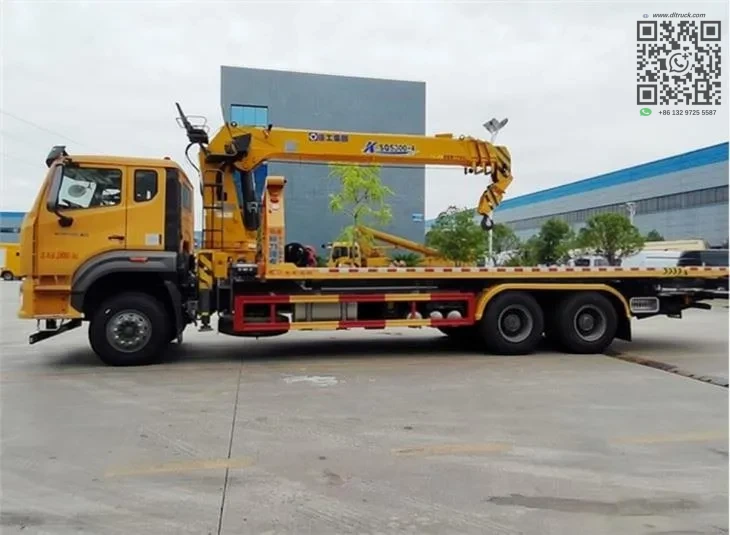

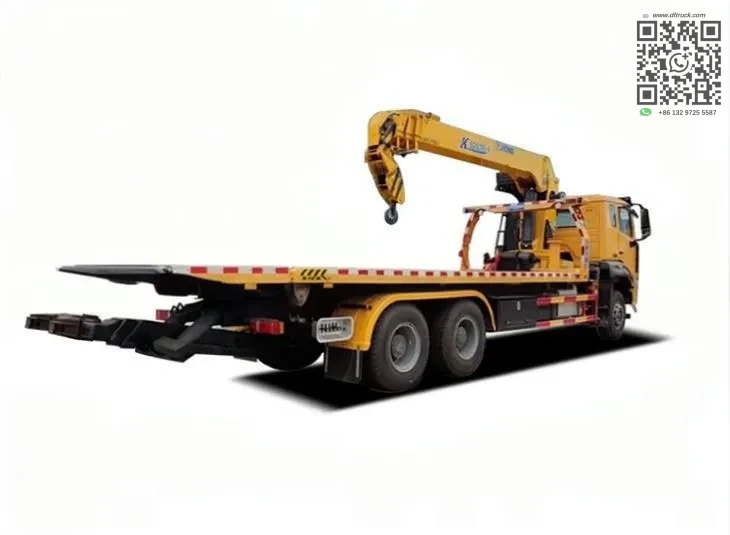

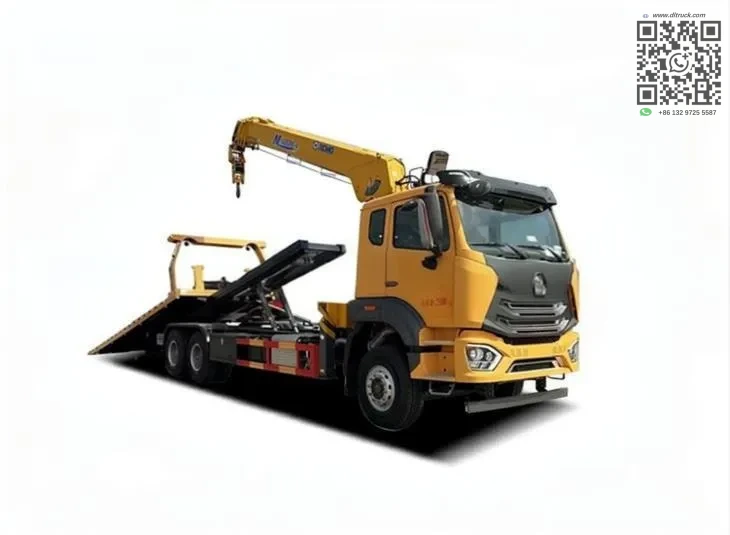

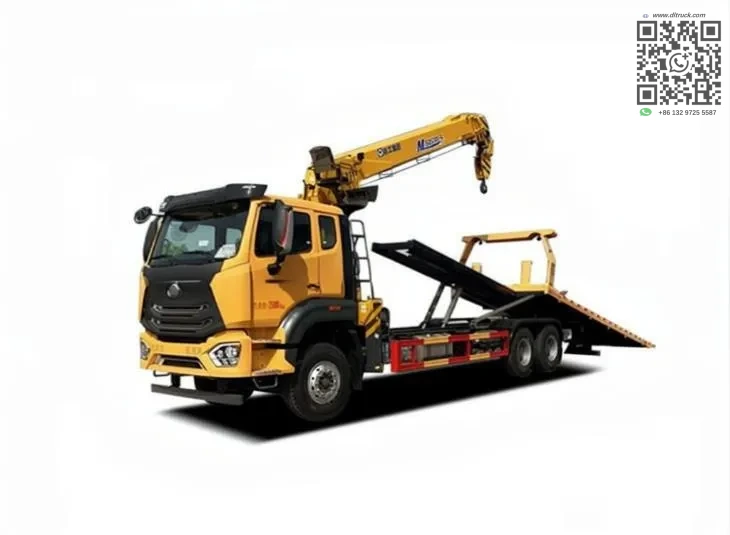

We manufacture Sinotruk 16-ton flatbed rollback tow trucks with integrated crane systems. This model is built for commercial recovery fleets and municipal operators. The truck combines flatbed transport with under-lift recovery capability.

The chassis is a Sinotruk rigid frame. The cab is the HW76 type. It has two seats and a sleeping berth. Air conditioning is standard. Multiple exterior colors are available including white, orange, and yellow.

Key Features.

• Flatbed plate measures 8500 by 2550 mm.
• Rated maximum loading capacity is 16000 kg.
• Under-lift boom effective length is 1700 mm with 1360 mm telescopic stroke.
• Max under lift capacity at full extension is 6500 kg.
• Crane capacity available in 10 tons, 12 tons, or 14 tons.
• Crane brands include Palfinger, Shimei, CLW, and UNIC.
• HW76 cabin with air conditioning and sleeper berth.
• 273 kW / 371 HP six-cylinder diesel engine.
• EURO II emission standard.

Performance and Configuration.

The powerplant is a 6-cylinder in-line water-cooled diesel engine. It features a turbo charger and inter-cooler. Power output is rated at 273 kW or 371 HP. The engine meets the EURO II emission standard.

The transmission is a HW19710 unit. It provides 10 forward speeds and 2 reverse speeds. Front axle capacity is 9 tons. The driving axle assembly is rated at 16 tons per side.

The steering system is a ZF8118 hydraulic unit with power assistance. The braking system uses dual circuit compressed air for service braking. Parking and emergency braking uses spring energy with compressed air operation. An engine exhaust brake provides auxiliary braking. The tire specification is 12.00R20. The truck carries 10 tires plus one spare. The fuel tank holds 400 liters.

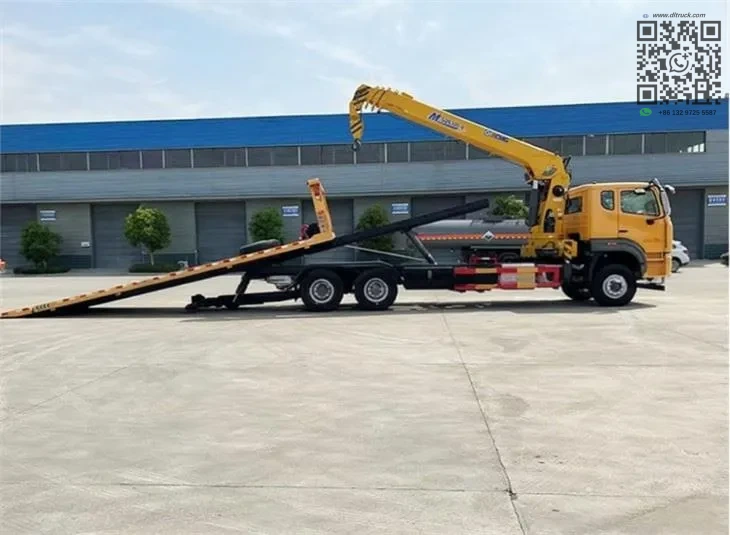

The under-lift boom has a 1700 mm effective length and a 1360 mm telescopic stroke. When fully retracted, ground clearance is 800 mm. The flatbed plate dimensions are 8500 by 2550 mm. The moving range of the flatbed is 3760 mm. Rated towing capacity is available at 80 to 150 kN as an option. Steel rope diameter options are 16 to 22 mm with a length of 50 meters. Minimum line speed is Not provided in source per minute.

Applications.

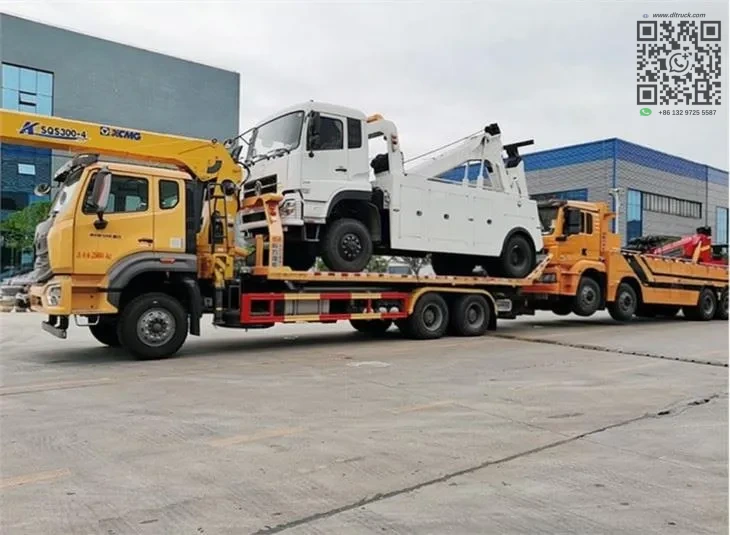

This tow truck is used for highway breakdown recovery and flatbed vehicle transport. The integrated crane and under-lift system allow operators to recover disabled vehicles without additional equipment. The flatbed can carry construction machinery and heavy equipment between job sites.

Common work environments include highway patrol services, municipal road maintenance departments, and private recovery companies. The truck operates on paved roads and can access rural routes. The 400-liter fuel tank supports long-haul recovery missions.

Why Choose This Truck.

The Chengli factory offers this truck at competitive direct pricing. Buying from the manufacturer removes middleman costs. The HW76 cabin with air conditioning and sleeper berth provides operator comfort on long shifts.

The combination of a 16-ton flatbed and an optional 12-ton crane covers most recovery scenarios in a single vehicle. Spare parts and service support are available through the factory supply chain. The proven Sinotruk chassis and engine platform reduces downtime and maintenance complexity.
