China ISUZU FTR 8 Tons Tilt Tray Wrecker Truck With 5 Tons Crane – Chengli

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

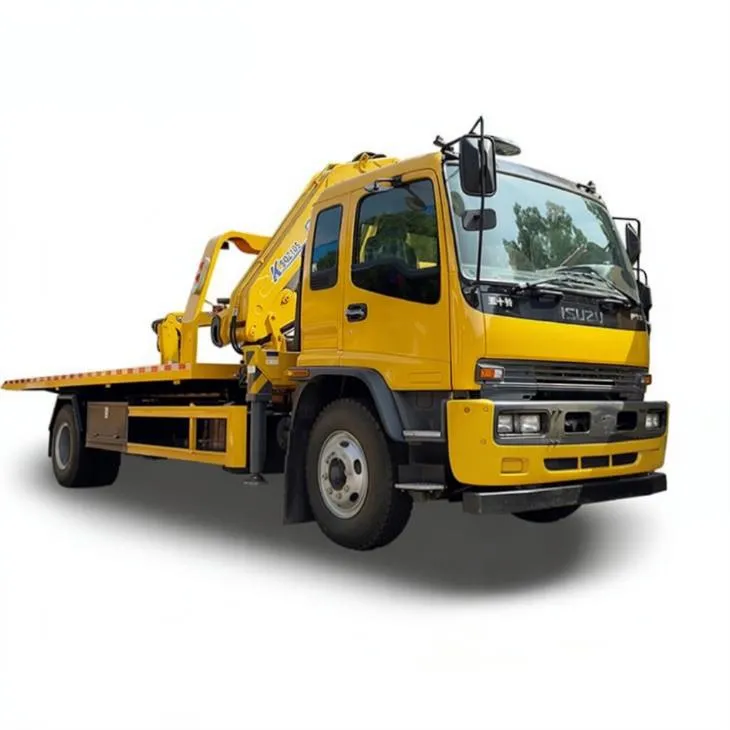

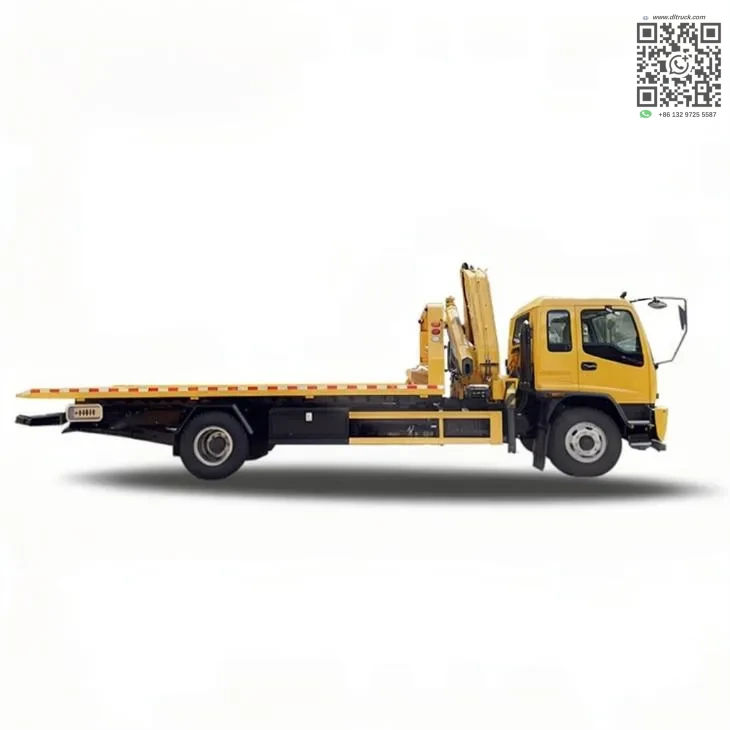

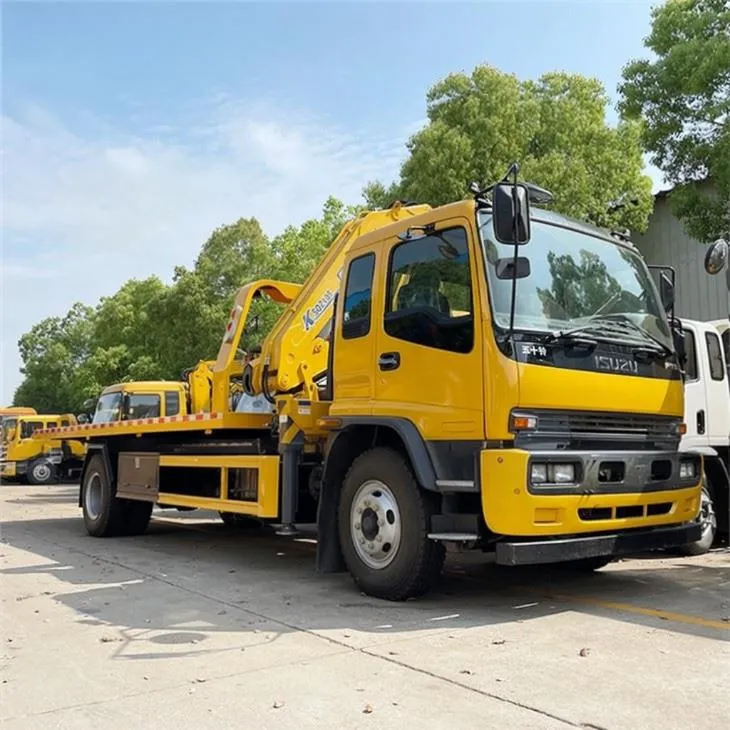

The ISUZU FTR 8 tons tilt tray wrecker truck combines a robust chassis with an integrated crane for. Roadside recovery work. This unit carries a 5 tons crane as standard configuration. The tilting flatbed design allows vehicles to be driven or winched onto the platform for transport.

Chengli manufactures this wrecker directly at factory good price. Each truck is built on the proven ISUZU FTR 4X2 chassis with left-hand drive configuration.

Key Features.

• 8000 kg maximum lifting capacity on tilt platform.

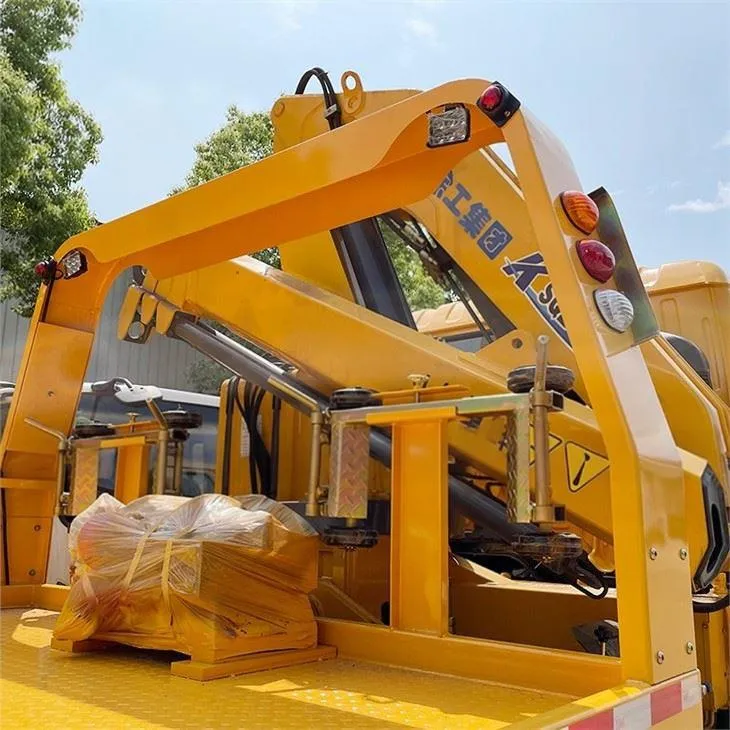

• 5 ton rated crane available from XCMG, Palfinger, or CLW.
• Full hydraulic control handled by stick levers at both rear sides.
• 6mm checked plate platform with electrophoresis pre-treatment.
• Wire rope winch with 35m length and 12mm diameter cable.
• Auxiliary trolley units and fastening straps included.
• Euro V compliant 205HP turbocharged diesel engine.
• ISUZU FTR cabin with air conditioning for three occupants.

Performance and Configuration.

The powertrain uses a 4-cylinder in-line direct injection engine with water cooling, turbocharging, and inter-cooling. Displacement measures 5193 ml. The six-forward one-reverse MLD gearbox delivers power to the rear axle in a 4X2 layout.

Braking includes dual circuit compressed air service brakes. Spring energy parking brakes on the rear wheels, and an auxiliary engine exhaust valve brake. Maximum driving speed reaches 95 km/h.

The tilt platform measures 6200 mm in length and 2550 mm in width. Minimum inclination angle is 8 degrees with a working itinerary of 2700 mm. Ground clearance sits at 1250 mm. Rated traction capability is 50 KN. The truck rides on 10.00R20 or 11.00R20 tires with a spare.

Applications.

This wrecker handles broken-down vehicle recovery on highways and urban roads. The tilt tray and winch system support disabled cars, light trucks, and small buses. The optional crane adds lifting capability for recovery situations that require vertical access.

Why Choose This Truck.

Chengli supplies this wrecker at factory good price with direct manufacturer support. The ISUZU FTR chassis is widely recognised for durability and parts availability. Buyers can choose between straight boom or knuckle boom crane configurations from established brands.
