Introduction.

CHENGLI manufactures the HOWO 6×6 45m aerial work platform truck in China. The vehicle provides a 45-meter working height calculated from ground level to the maximum reachable altitude of the. Operator inside the platform basket. Factory good price chengli delivers this unit directly to international buyers.

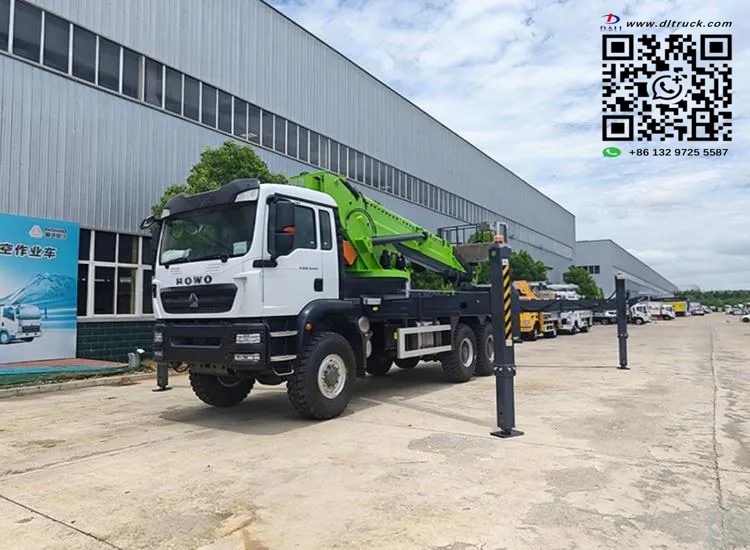

The truck combines a 6×6 HOWO chassis with a full hydraulic boom system. It includes dual control stations. Operators can work from the turntable or from inside the basket.

Key Features.

• Grade 960 ultra-high-strength steel boom with 18-sided cross-section.
• Dual vertical slewing motors lock out mechanical backlash.
• KAIMEI military-grade proportional valve hydraulic system.
• Compact aluminum alloy basket: 1400mm x 800mm x 1150mm.
• 300kg rated basket capacity for 2 persons.
• 3000W pure sine wave power inverter (AC 220V) in basket.
• Fully closed-loop hydraulic automatic leveling system.
• Emergency 24V DC battery-driven electric-hydraulic pump.
• IP67 weatherproof basket control box with DUMAN joystick.
• Turntable DUMAN touchscreen LCD with real-time telemetry.
• X/V-type two-stage swing outriggers with extra-wide span.
• Soft-Leg Detection sensors and electronic tilt indicators.
• Cable force balance mechanism equalizes left and right wire ropes.

Performance and Configuration.

The boom is fabricated from Grade 960 ultra-high-strength steel. Its advanced 18-sided geometric cross-section distributes structural stress evenly. This design enhances wind resistance by 30 percent compared to conventional round or square booms.

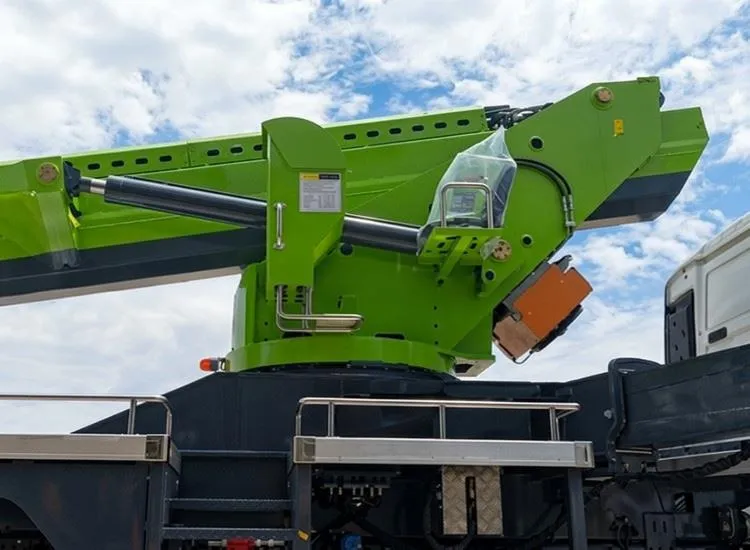

Two symmetric vertical slewing motors act simultaneously on the heavy-duty turntable. This arrangement completely locks out mechanical backlash. The result is elimination of lateral basket sway under high-altitude gusts.

The hydraulic core uses a premium KAIMEI military-grade high-pressure proportional valve block matrix. It enables exceptionally smooth multi-action composite moves. Telescoping, luffing, and slewing can operate concurrently with precise control.

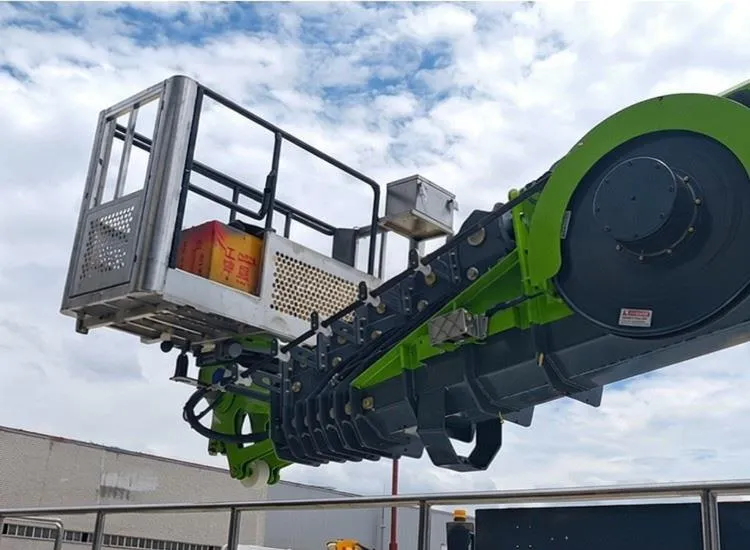

The basket is a compact 1400mm x 800mm x 1150mm high-rigidity aluminum alloy unit. It supports a 300kg rated capacity. The design is purpose-built for high space-clearance and low wind resistance. Standard layout accommodates 2 persons with anti-slip punched floors, wrap-around high guardrails, and heavy-duty safety harness anchorage points.

A 3000W pure sine wave power inverter is integrated into the basket. It provides AC 220V power and is protected by an independent CHNT leakage circuit breaker waterproof module. The fully closed-loop hydraulic automatic leveling system uses dynamic real-time feedback. The basket remains perfectly parallel to the ground during any boom luffing or telescoping movement.

An advanced mechanical tension balance mechanism strictly equalizes operational stress between the left and right steel wire ropes. This eliminates telescoping jerks and reduces structural wear over time.

The emergency power source is a 24V DC battery-driven electric-hydraulic pump. It is entirely independent of the main engine. It enables full hydraulic-electric emergency override to safely lower and retract the boom when needed.

The basket control box is an IP67 weatherproof aluminum alloy enclosure. It houses a high-precision DUMAN electronic joystick, remote engine start-stop toggle, and a physical mushroom-head emergency stop button.

The turntable station includes an ergonomic shock-absorbing operator seat. Dual-axis pilot joysticks control boom functions. A DUMAN touchscreen LCD displays real-time telemetry including angles, extension, radius, and load weights.

The chassis electronic box is a heavy-duty lockable side cabinet. It contains a manual red rotary master power cut-off switch. Upper and lower hydraulic circuit routing selector, and dedicated cooling fan and warning strobe toggles.

Manual outrigger levers use a low-chassis 6-lever mechanical proportional valve matrix. Four levers control independent left and right front and rear outriggers. Two levers handle synchronized auto-extension. Shock-resistant glycerin pressure gauges flank the lever panel.

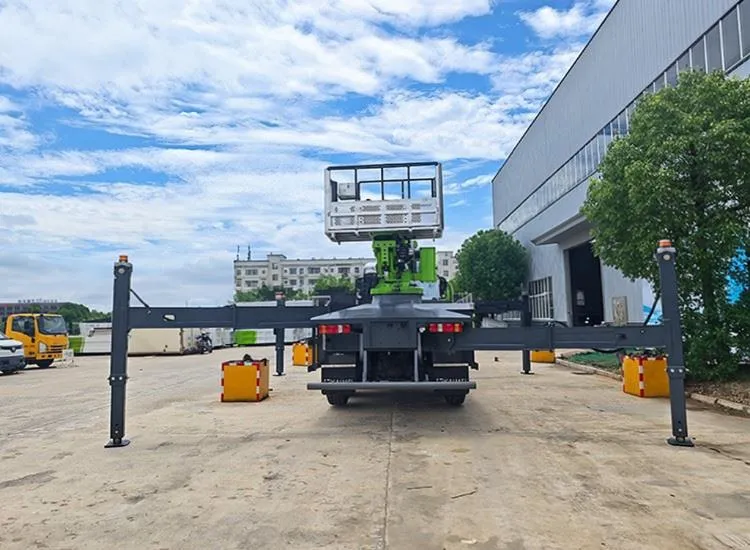

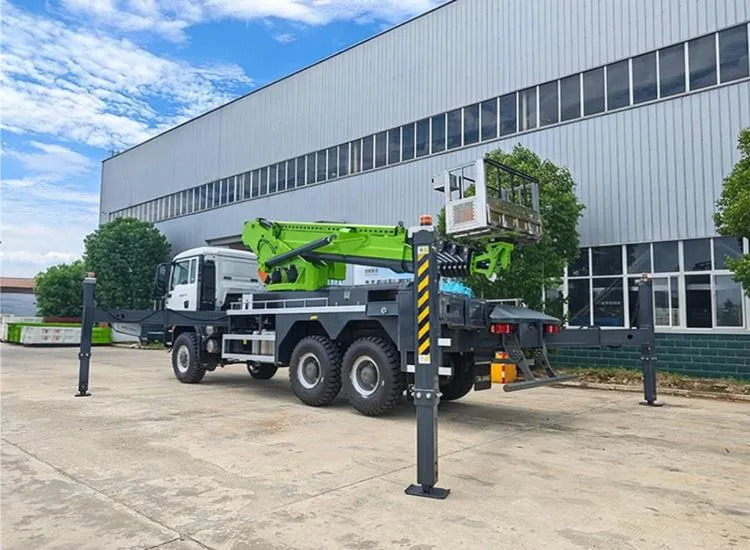

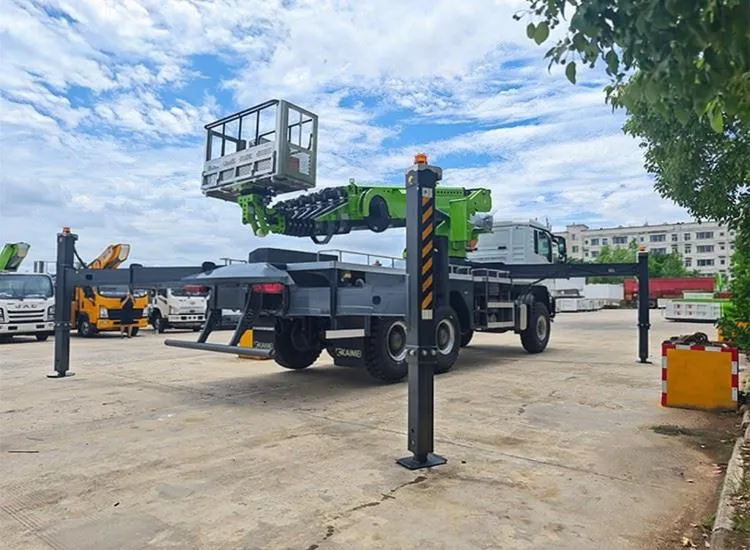

The outrigger geometry features heavy-duty full-hydraulic extra-wide span X/V-type two-stage swing outriggers. They are paired with oversized anti-slip foundation timber pads. Embedded soft-leg detection sensors and multi-axis electronic tilt indicators instantly trigger acoustic-optic alarms and movement lockouts if any. Outrigger experiences micro-slippage.

Applications.

This aerial work platform truck is designed for installation, maintenance, and repair tasks at height. It serves the utility, telecommunications, and municipal sectors.

Common applications include power line work, street lighting maintenance, tree trimming, sign installation, and building maintenance. The 45-meter reach and 300kg basket capacity accommodate most commercial and industrial elevated work requirements.

Why Choose This Truck.

CHENGLI sells this unit at factory good price chengli terms. Direct factory sourcing removes intermediary markups. Buyers receive a complete machine with documented specifications and factory support.

The vehicle integrates a comprehensive safety package. Emergency hydraulic pump, soft-leg detection, leakage protection, and mechanical tension balance work together to protect operators at height. Dual control stations allow flexible operation from ground or basket level. The compact basket and strong Grade 960 steel boom deliver reliable performance across diverse work environments.
