Factory Good Price Chengli 5CBM LPG Skid Station

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

The Chengli 5CBM LPG skid station is a complete liquid petroleum gas storage and dispensing unit. It integrates the pressure vessel, piping, valves, and metering package on a single skid frame. The factory delivers the assembled station ready for site installation. This configuration shortens commissioning time and reduces on-site welding work.

The vessel uses carbon steel Q345R, which is a standard material for pressure equipment. The tank holds 5000 liters and is rated for a design pressure of 1.77MPa. Chengli offers this station directly from the factory at competitive pricing.

Key Features.

The skid station combines all critical components in a compact footprint. Each element is selected for durability and compliance with pressure-vessel standards.

• Carbon steel Q345R pressure vessel with 10.0mm shell thickness.
• Tank diameter of 1600mm and overall dimensions of 3070x1620x2210mm.
• 100% non-destructive flaw detection on all weld seams.
• Stress-relief heat treatment performed at 600-640℃.
• Hydraulic pressure test carried out at 2.21MPa before delivery.
• Filling ratio set to 0.95 for safe LPG volume management.

Performance and Configuration.

The Q345R tank provides strong pressure containment for routine LPG storage. The 10.0mm shell thickness and 1600mm diameter give the vessel a robust structure. The 0.95 filling ratio leaves proper ullage space inside the tank. This margin allows liquid expansion during temperature changes.

Chengli applies 100% flaw detection to every welded joint. The heat treatment at 600-640℃ removes residual welding stresses. The hydraulic test at 2.21MPa verifies leak-tight integrity before the unit leaves the factory. These steps form part of the manufacturer quality-control process.

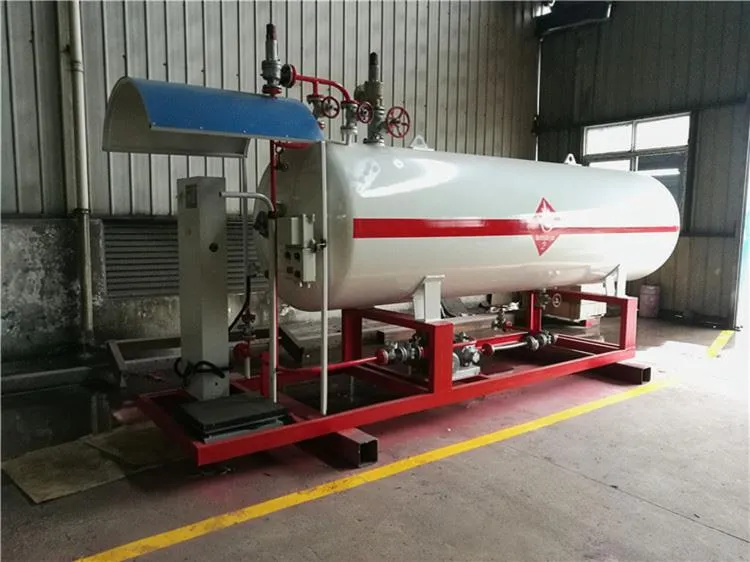

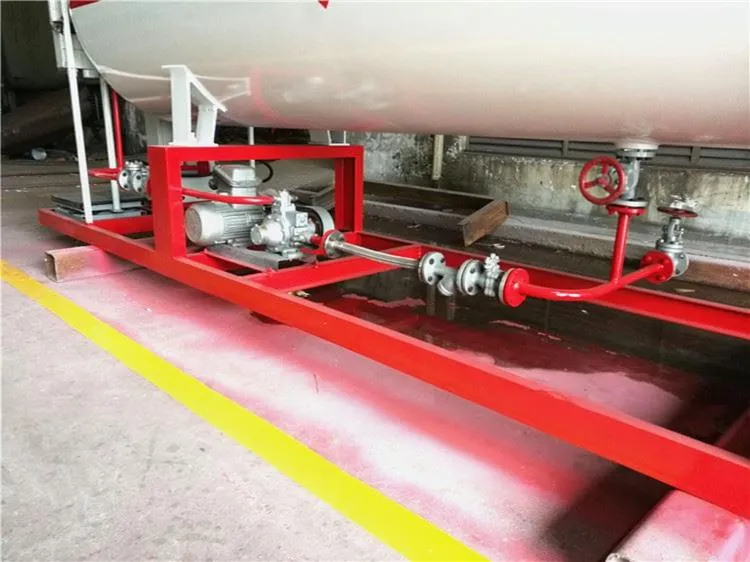

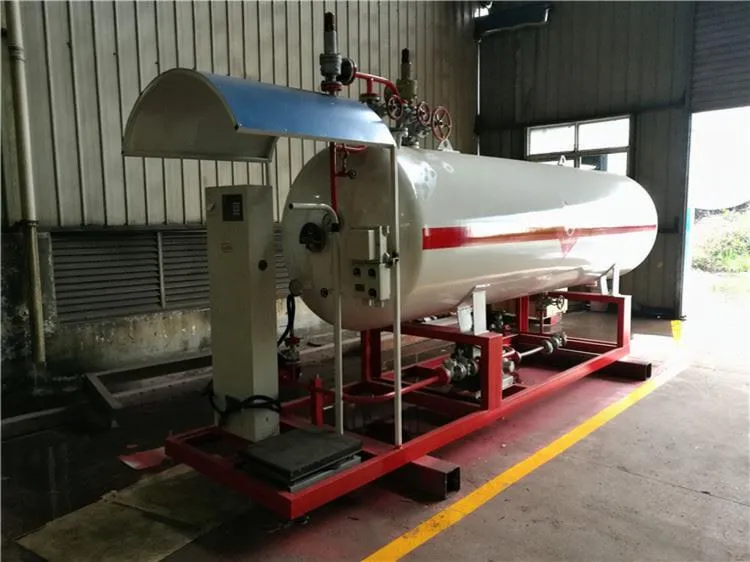

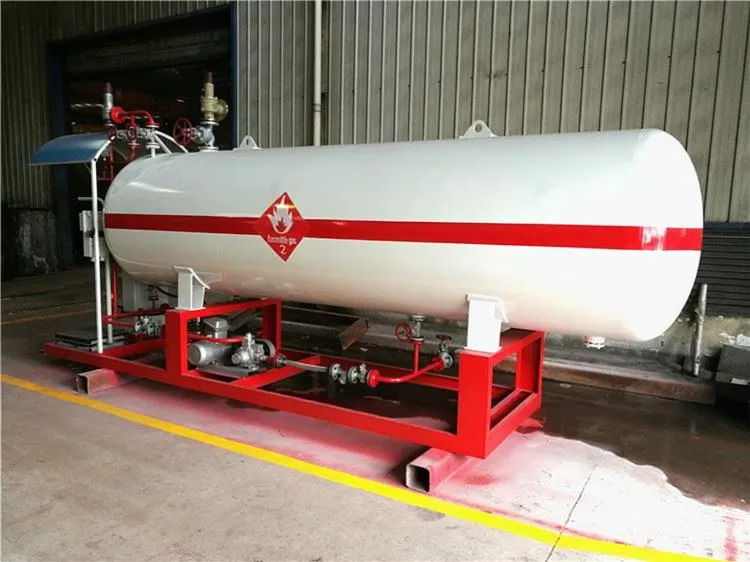

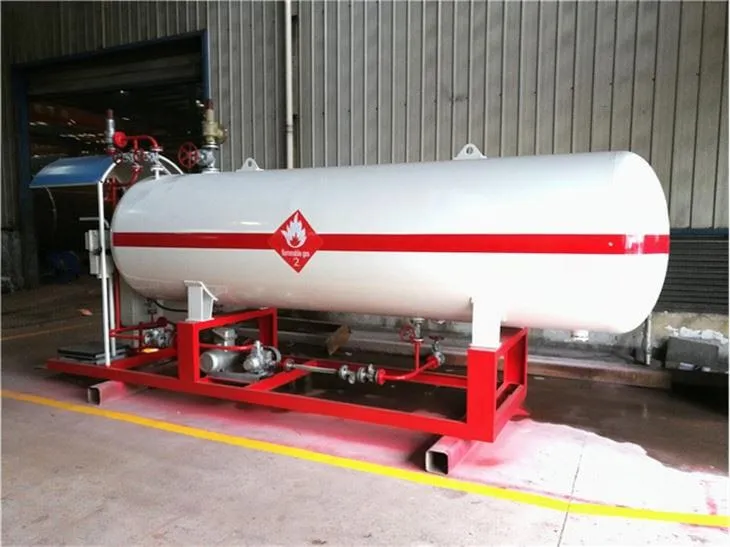

The skid-mounted design places the vessel, pipework, valves, and gauges on a single steel frame. This arrangement simplifies transport and site positioning. Operators connect supply and discharge lines after the skid is leveled. Safety devices such as pressure relief valves and rupture discs are fitted as required by pressure-vessel regulations.

Applications.

The 5CBM LPG skid station is suited for gas stations, industrial plants, construction sites, and rural logistics hubs. Fleet operators use it for vehicle fueling depots. Municipal and commercial kitchens also rely on this type of station for bulk LPG supply. The compact footprint makes it practical where space is limited.

Why Choose This Truck.

Chengli builds the station at its own factory and sells it without middleman markup. Buyers receive a fully tested pressure vessel with documentation. The factory direct model keeps the price competitive while maintaining full traceability of materials and weld records.

The integrated skid approach means fewer on-site assembly steps. The vessel is tested, coated, and shipped complete. Site crews focus on foundation work, piping connections, and commissioning. This model suits fleet buyers and municipal procurement programs that need dependable LPG infrastructure at a clear cost.
