Factory Good Price Chengli 4-Ton Full Landing Flatbed Tow Truck

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

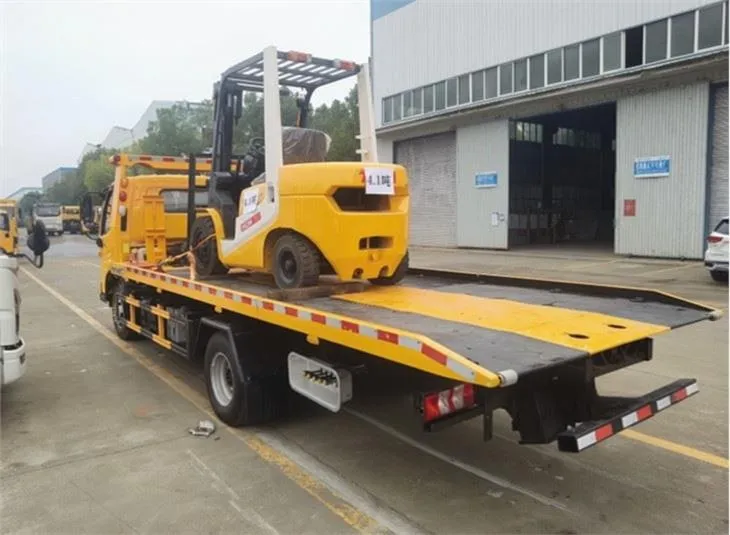

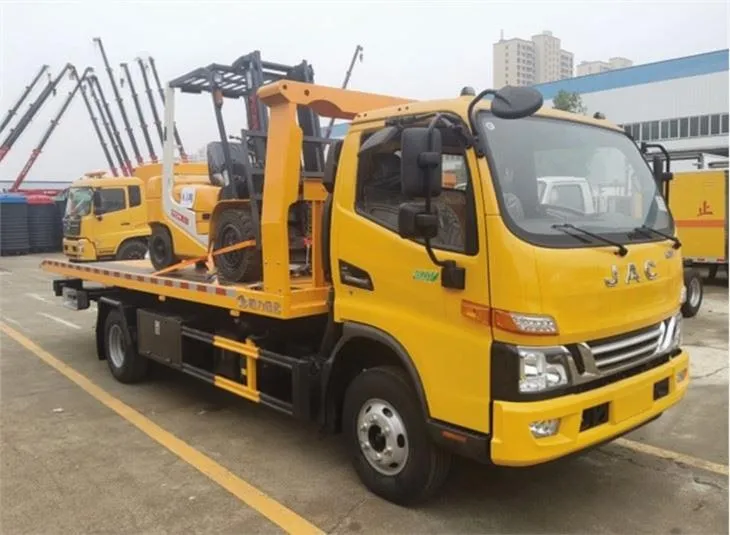

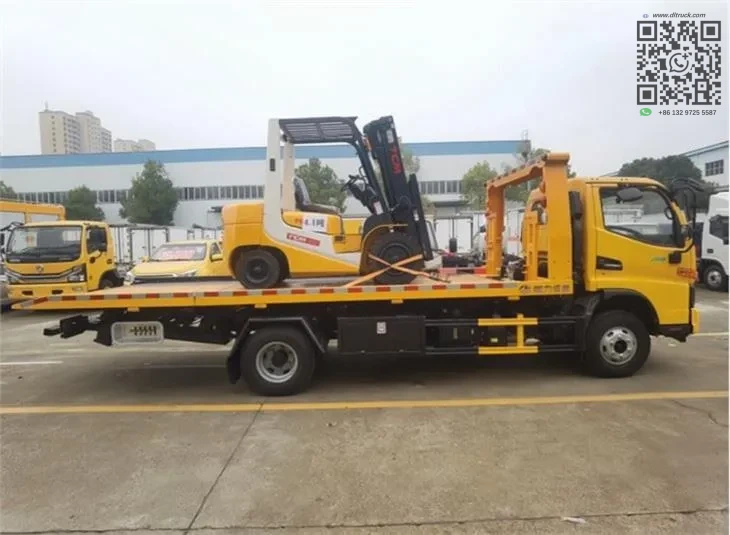

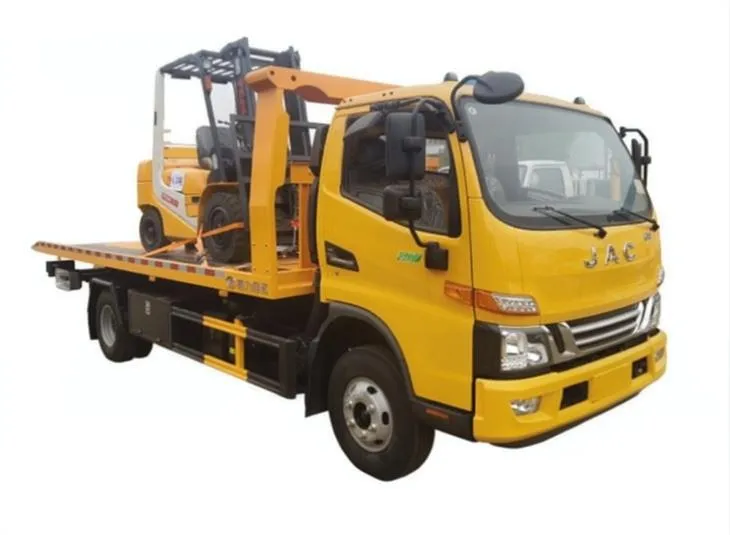

Chengli is a major Chinese manufacturer of tow trucks and recovery vehicles. We supply a 4-ton full landing flatbed tow truck at a competitive factory price. This flatbed wrecker is built on a JAC commercial chassis. It features a Cummins diesel engine. The vehicle is designed for vehicle recovery and towing tasks.

The flatbed can carry a carrying mass up to approximately 4000 kg. The overall dimensions are 7470 mm by 2350 mm by 2440 mm. The flatbed platform itself measures 5950 mm by 2300 mm. The wheelbase is 3815 mm for stable towing and transport.

Key Features.

The vehicle includes a complete hydraulic towing and transporting system. The setup combines a flatbed, winch, and under-lift towing arm. Operators control the hydraulic functions from a lever inside the cab.

• 4000 kg hydraulic winch with 21m steel wire rope.
• Rear towing arm assembly for under-lift recovery.
• Two auxiliary support wheels for stabilized loading.
• LED rear tail lights with electronic side markers.
• Toolbox mounted on both sides of the flatbed.
• Four bundle ropes for securing carried vehicles.

Performance and Configuration.

The JAC chassis is powered by a Cummins B140 33 diesel engine. It produces Not provided in source. The engine is a 4-cylinder turbocharged and intercooled unit. It meets Euro 2 emission standards. The 6-speed manual transmission provides 6 forward gears and 1 reverse gear.

The truck uses a 4×2 traction layout. Maximum speed is 110 km/h. The vehicle rides on 7.00R16 tires. It carries six tires plus one spare tire. The gross vehicle weight is approximately 8675 kg. The net weight is approximately 4480 kg.

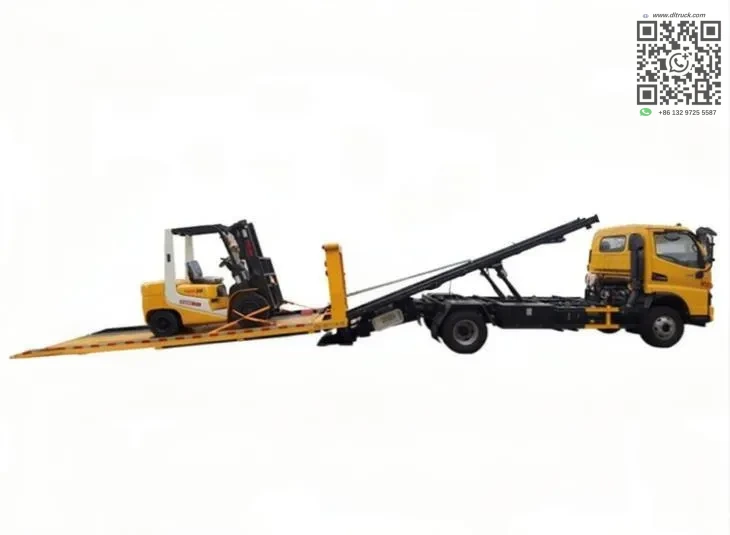

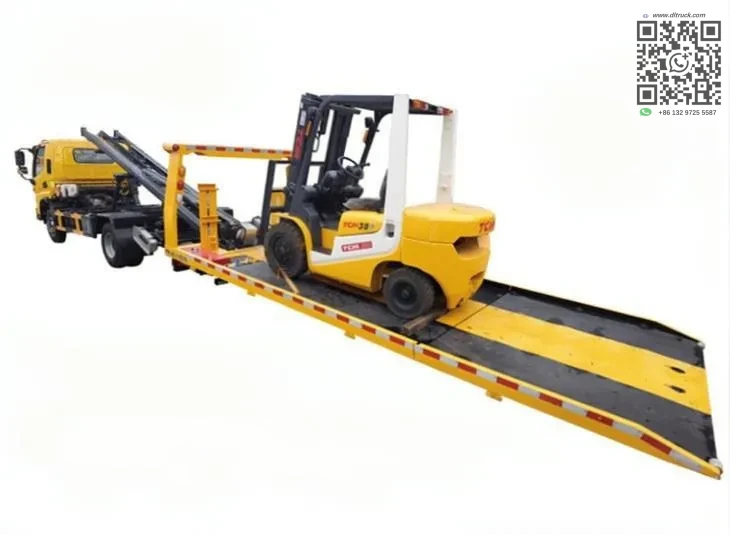

The hydraulic winch pulls vehicles onto the flatbed at 8 m/min. The flatbed tilts to a minimum angle of 10 degrees. The flatbed working stroke is Not provided in source. Operators transport vehicles by driving them up the tilted bed. The winch then pulls the vehicle into the final carrying position.

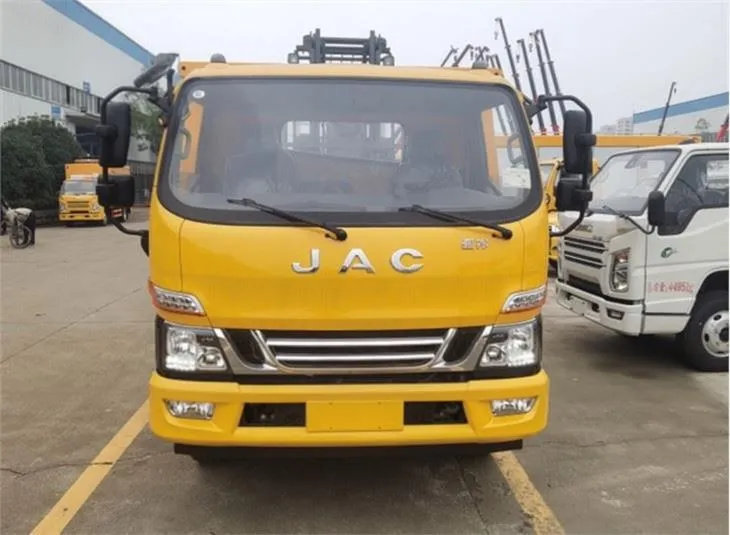

The JAC cabin seats three passengers in a single row. It includes power steering, an ABS braking system, and an air conditioner. A roof warning light is mounted above the cab. The truck is left-hand drive for markets that require this configuration.

Applications.

This flatbed tow truck is suited for highway vehicle recovery. It can transport disabled or broken-down cars to repair shops. Accident scene towing is another common use case. Municipal road services and transport companies also operate these vehicles daily.

Construction sites and industrial areas may use the truck for moving disabled machinery. The 4000 kg carrying capacity covers most standard passenger vehicles and light vans. The flatbed design protects carried vehicles from road debris during transit.

Why Choose This Truck.

Chengli manufactures this tow truck directly in China. Factory pricing removes intermediary markups and keeps costs low. The JAC chassis and Cummins engine are proven combinations in the recovery vehicle market. Spare parts and service support are widely available.

The 2022 manufacturing year reflects a recent build standard. The included winch, towing arm, auxiliary wheels, and toolbox provide a complete ready-to-operate package. Contact us for a quote and specifications for your market requirements.
