Factory Good Price Chengli 30 Ton Wrecker Tow Truck with Crane

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

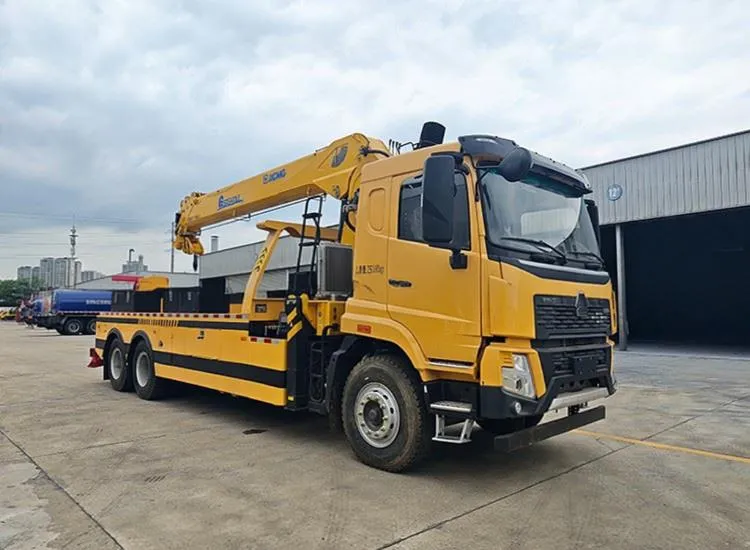

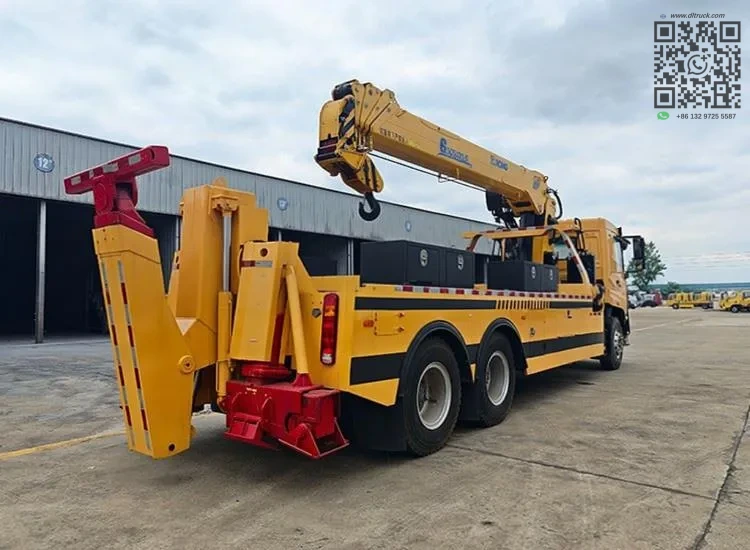

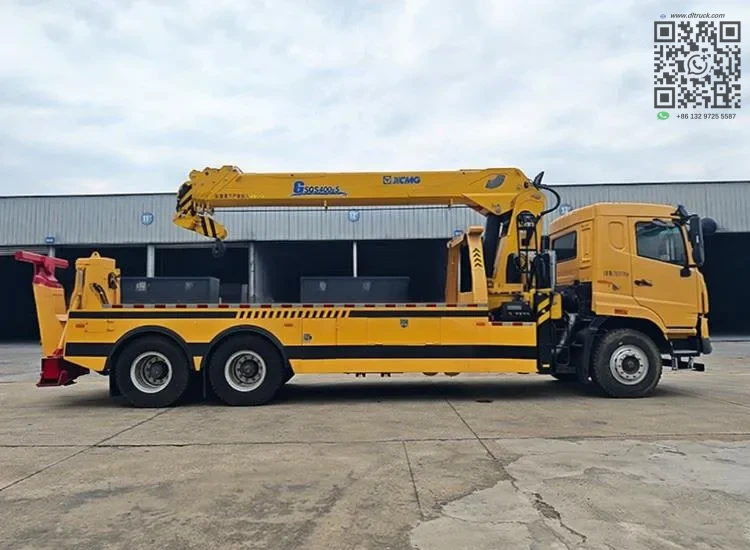

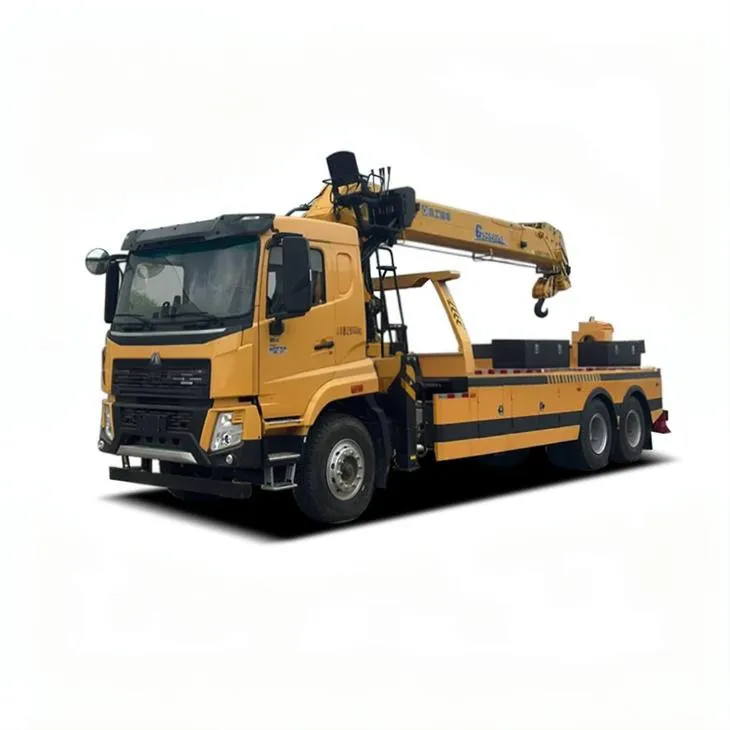

The Chengli 30 ton wrecker tow truck is a dedicated 1-to-1 recovery vehicle built for heavy vehicle transportation. And roadside assistance. This unit combines an underlift towing system with a 16 ton XCMG crane in one integrated body.

Our factory produces this wrecker at competitive prices. The underlift provides only underlift towing without flatbed loading capability. It carries a maximum towing capacity of 30,000 kg for heavy trucks and commercial vehicles.

Key Features.

The vehicle integrates two primary lifting systems on a separated steel body with multi compartment tool cabins on both sides.

• 30,000 kg maximum towing capacity rated for heavy recovery work.
• 16,000 kg underlift capacity when fully retracted at 12,000 kg fully extended.
• XCMG GSQS400-5 five section telescopic stiff boom crane with 16 ton lifting capacity.
• Crane reaches 18,300 mm maximum lifting height and 15,500 mm working radius.
• 360 degree continuous crane rotation for flexible positioning.
• Three section telescopic independent underlift with 3,350 mm effective length.
• Underlift folding and tilt range from -7 to 92 degrees.
• Fifty four hydraulic stabilizers with H-type front span and L-type rear configuration.
• Dual control system with elevated top seat and dual side ground levers.
• 16 ton hydraulic winch integrated into the crane assembly.
• Five pairs of standard towing forks in different sizes for various truck axles.
• L-shaped tire cradles and towing fork bases included as standard accessories.
• LED yellow light bar with loudspeaker and two rear LED working lights.
• Auxiliary brake air line with dual coupling assembly for towed vehicle braking sync.

Performance and Configuration.

The XCMG GSQS400-5 crane delivers 16 tons of lifting capacity through its five section telescopic stiff boom. The crane operates through 360 degrees of continuous rotation. The hoisting winch rated at 16 tons is integrated directly with the crane structure for coordinated lifting and recovery operations.

The underlift system uses a three section telescopic design with an effective length of 3. 350 mm and a telescopic stroke of 1,650 mm. It lifts up to 16,000 kg when fully retracted. The lifting capacity drops to 12,000 kg at full extension. The underlift tilts from -7 degrees below horizontal to 92 degrees near vertical for precise vehicle positioning.

The four hydraulic outriggers provide a front H-type span of approximately 5. 750 mm under the crane and a rear L-type configuration for stabilizer support. Dual side ground levers allow operators to control all functions from ground level. The elevated top seat provides an alternative overhead control position. Standard towing accessories include one set of L-shaped tire cradles and one set of towing fork bases. Five pairs of towing forks in varying sizes accommodate different truck axle widths. The auxiliary brake air line connects to the towed vehicle through a dual coupling assembly for synchronized braking during transport.

Applications.

This wrecker tow truck serves heavy commercial vehicle recovery on highways, industrial sites, and construction zones. The 30 ton towing capacity and 16 ton crane handle semi trailers. Dump trucks, buses, and large commercial vehicles that require removal from accident sites or breakdown locations.

The dedicated underlift towing system suits straight extraction operations where flatbed loading is not required. The crane adds versatility for lifting engines, transmitting components, or repositioning damaged vehicles during complex recovery jobs.

Why Choose This Truck.

The factory good price Chengli 30 ton wrecker delivers strong recovery capability at competitive manufacturing pricing. The XCMG GSQS400-5 crane is a proven brand component. Dual control stations give operators flexible positioning during recovery operations.

The separated steel body with multi compartment tool cabins stores towing forks. Tire cradles, and recovery hardware in organized access points. The auxiliary braking system and warning lighting meet operational safety standards for highway recovery work.
