China 30Ton Self Loader Truck With Crane – Factory Good Price CHENGLI

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

CHENGLI manufactures 30Ton self loader trucks with integrated cranes. This vehicle combines heavy loading capacity with crane functionality. The factory offers competitive pricing directly to buyers. We supply these trucks for global commercial vehicle markets. Our production lines ensure consistent quality standards. Our factory ensures strict quality control.

Key Features.

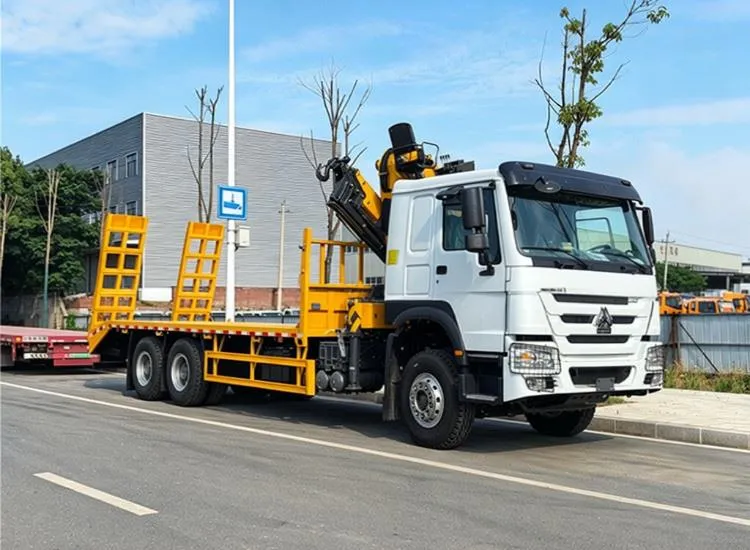

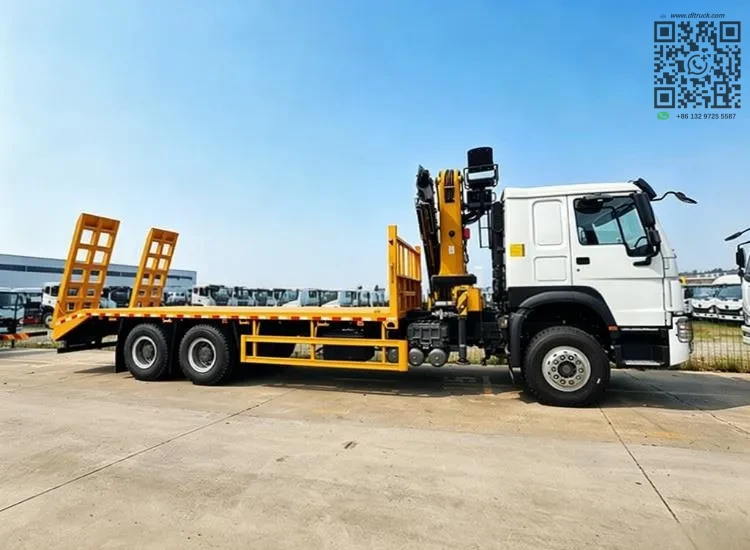

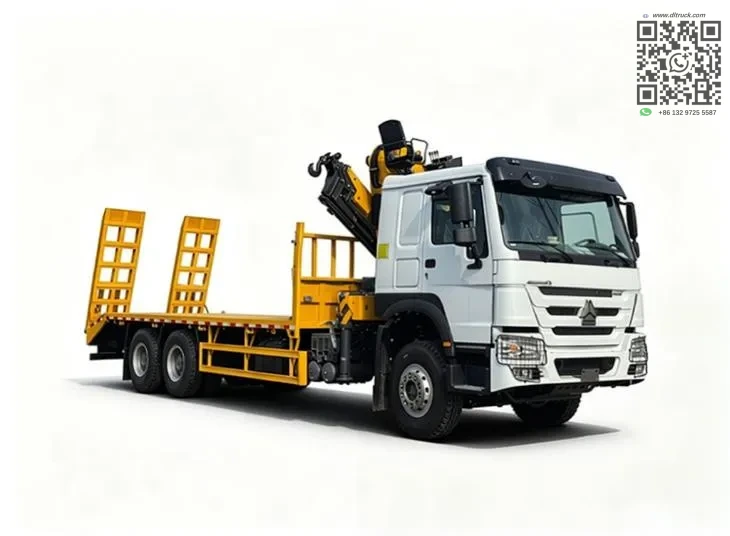

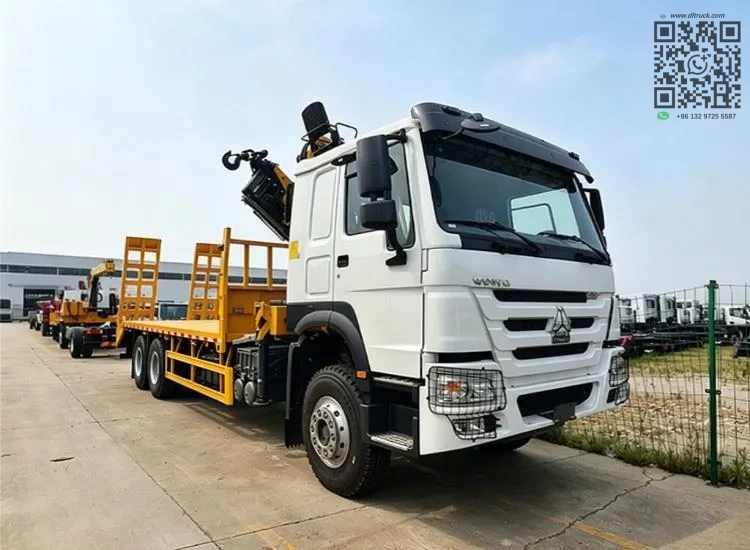

This self loader truck integrates a 10,000 kg crane with 12,000 mm working radius. The 30,000 kg loading capacity suits heavy recovery tasks. The 360° continuous slewing crane provides full rotation. Hydraulic stabilizers ensure safe operation on any terrain. The flatbed measures 8,200 × 2,550 mm with 7,600 mm deck length.

• Max loading capacity reaches 30,000 kg.
• Crane max lifting capacity is 10,000 kg.
• Max working radius measures 12,000 mm.
• Max lifting height achieves 14,500 mm.
• Rotation angle provides 360° continuous slewing.
• Installation space requires 1,200 mm behind cabin.
• Stabilizers use hydraulic front outriggers plus rear auxiliary outriggers.
• Overall flatbed dimension is 8,200 × 2,550 mm.
• Flat deck length is 7,600 mm.
• Rear slope length is 600 mm.
• Crossmember specification uses 120 × 120 × 8 mm high-strength square steel tubes.
• Floor plate specification is 8 mm thick carbon steel checkered diamond plate.
• Connection process involves full-perimeter square-tube joint welding with integrated lashing D-rings.

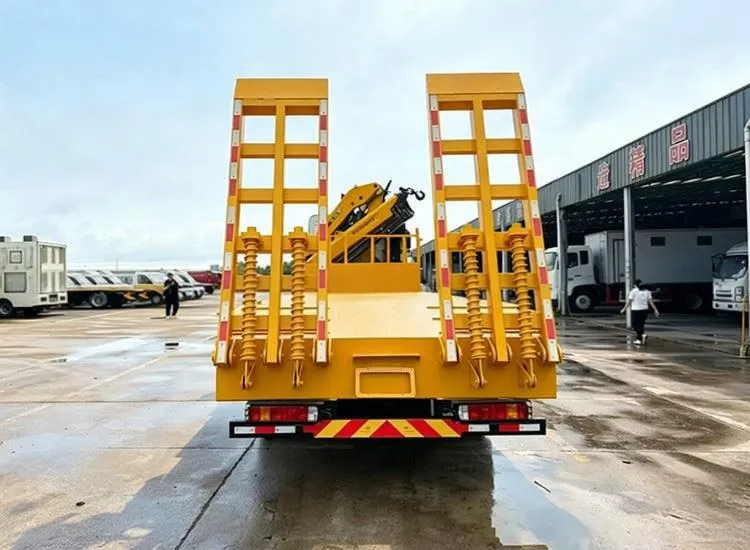

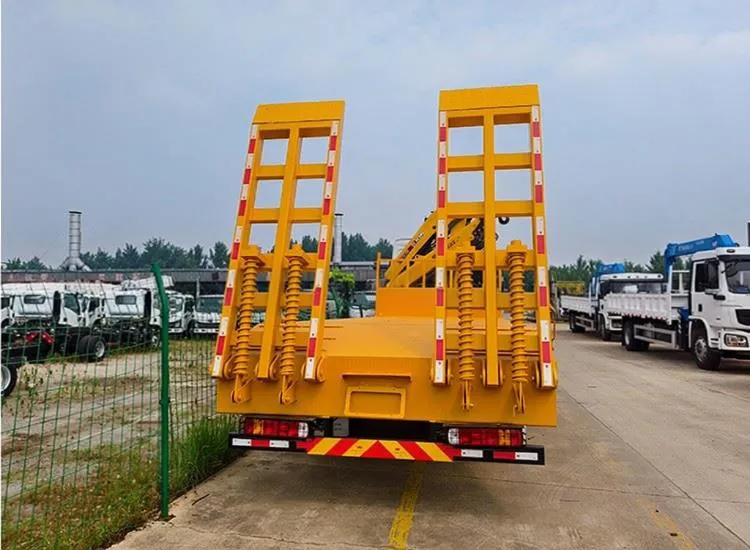

• Ramp type is single-section manual folding ramps.
• Ramp length is 2,200 mm.
• Ramp width is 600 mm per ramp.
• Assistance mechanism includes dual heavy-duty mechanical tension springs per ramp.
• Structure material consists of channel steel main frame with welded thick anti-slip steel bars.

.

Performance and Configuration.

The crane system delivers 10,000 kg lifting capacity. It operates within a 12,000 mm working radius. The max lifting height reaches 14,500 mm. Continuous 360° slewing allows full operational flexibility.

Loading capacity supports up to 30,000 kg on the flatbed. The overall flatbed measures 8,200 × 2,550 mm. Flat deck length is 7,600 mm. Rear slope adds 600 mm for vehicle access.

Structural components use high-strength materials. Crossmembers are 120 × 120 × 8 mm square steel tubes. Floor plate is 8 mm thick carbon steel checkered diamond plate. Full-perimeter welding connects square tubes with integrated lashing D-rings. The channel steel main frame provides structural rigidity.

Applications.

This self loader truck with crane serves flatbed tow truck duties. It transports vehicles up to 30 tons. The integrated crane assists in loading and unloading operations. Urban road recovery and commercial fleet maintenance are primary applications. The hydraulic stabilizers ensure stability during crane operations.

Why Choose This Truck.

CHENGLI manufactures this truck directly from the factory. Competitive pricing reflects efficient production methods. The robust construction supports heavy-duty towing and crane tasks. Buyers receive a complete vehicle ready for global export. The integrated stabilizer system enhances operational safety. The flatbed design accommodates various vehicle types.
