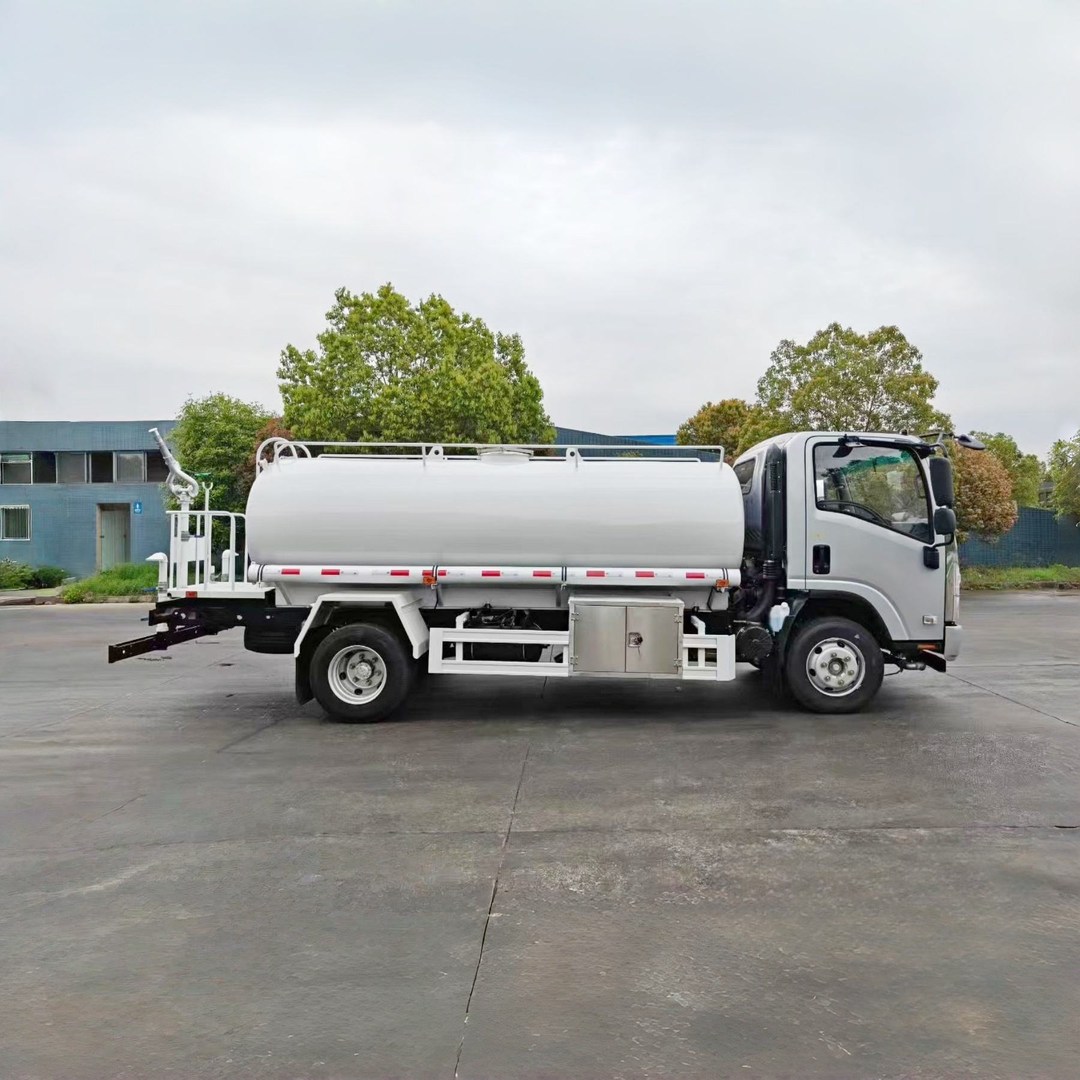

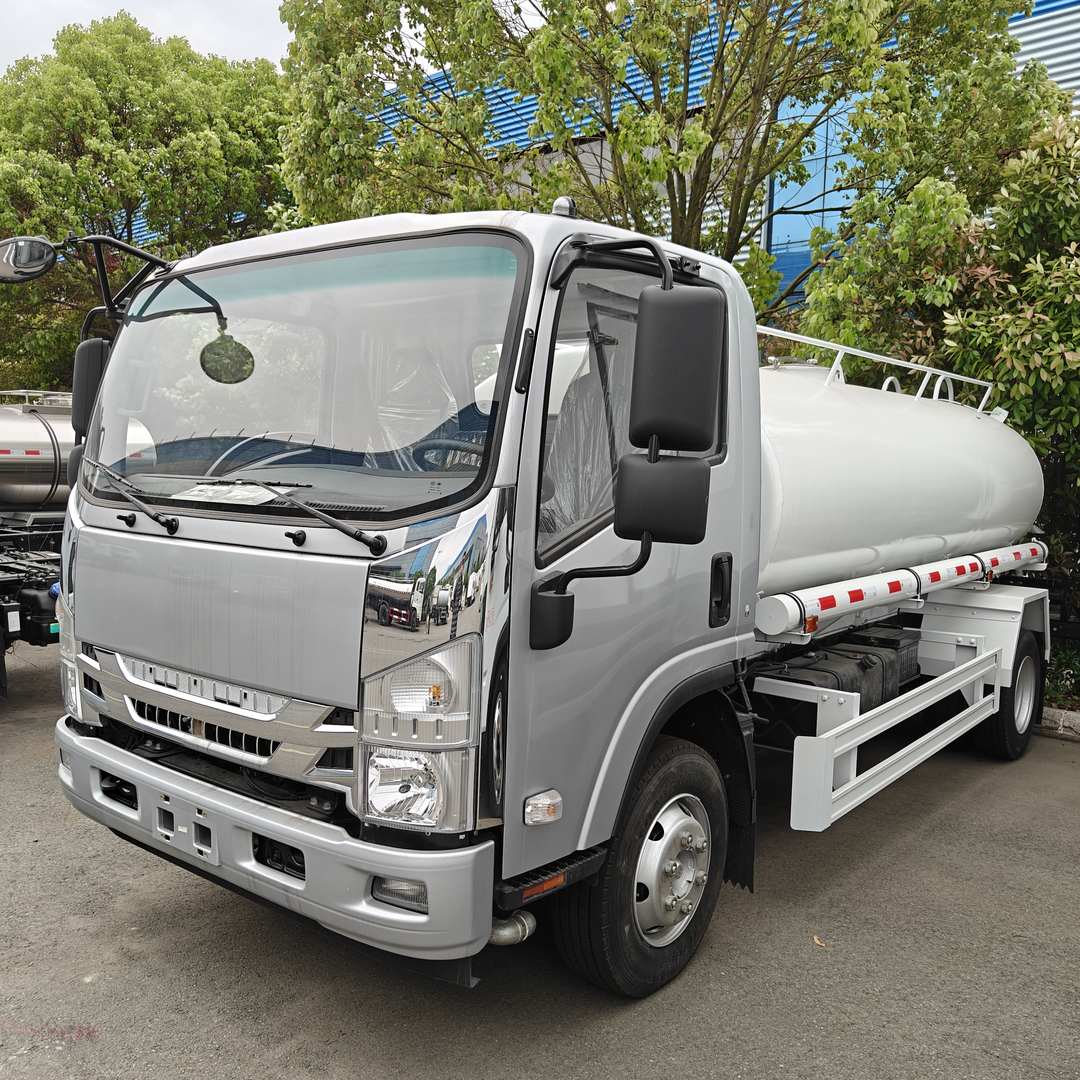

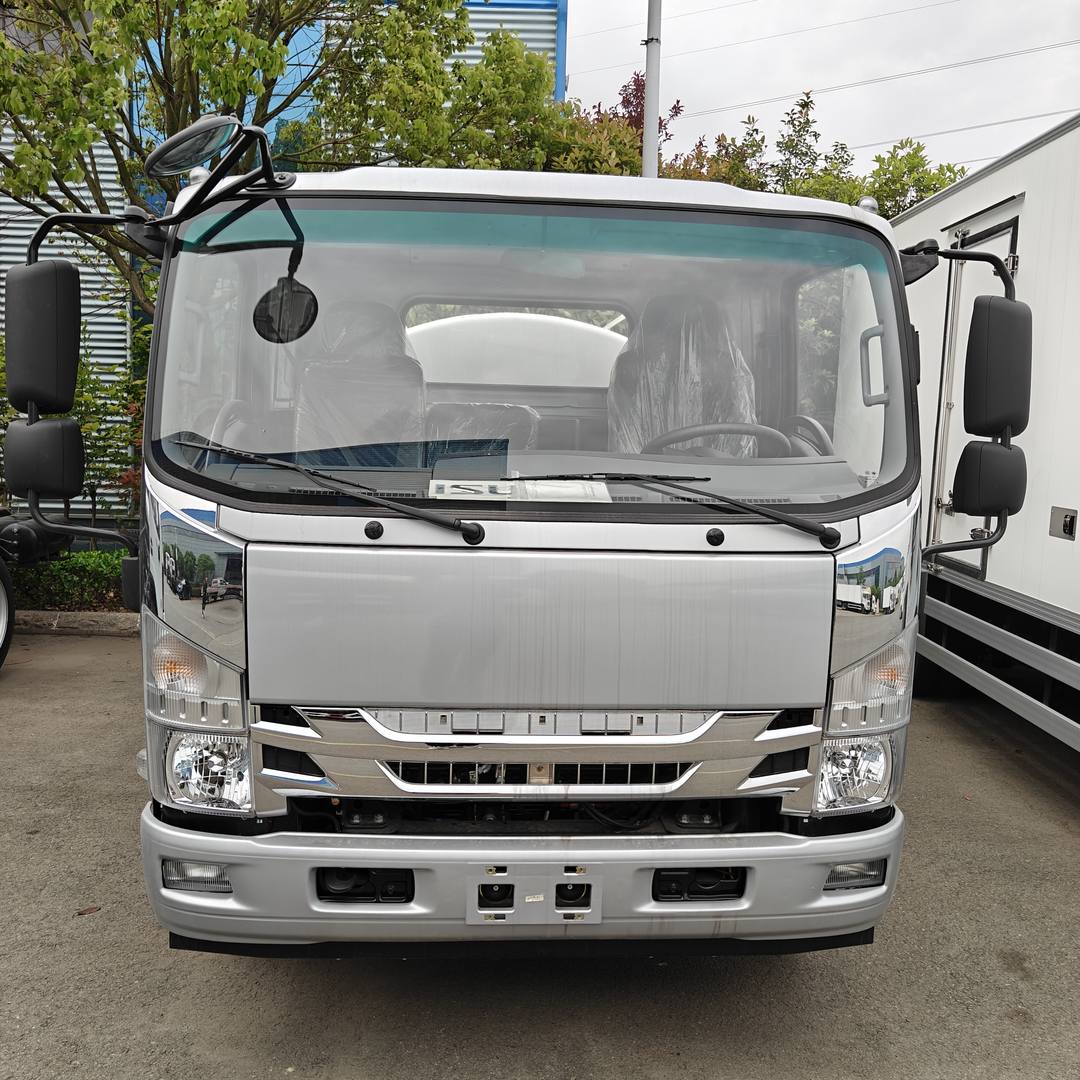

ISUZU Stainless Steel Water Sprinkler Truck
Description
| Stainless Steel Water Sprinkler Truck Specifications | |
|---|---|
| Overall Dimensions (mm) | 6960 × 2200 × 2400 |
| Wheelbase (mm) | 3815 |
| Engine Brand | Qingling |
| Engine Model | 4HK1-TCG61 |
| Displacement | 5193 ml |
| Power Output | 139 kW / 189 HP |
| Transmission | 6-Speed |
| Tire Specification | 235/75R17.5 |
| Brake System | Air Brake |
| Tank Body Specifications | |
| Tank Shape | Square Round Type |
| Welding Process | Argon Arc Welding |
| Tank Dimensions (mm) | 4120 × 1800 × 1250 |
| Tank Capacity | 7 Tons |
| Tank Material | 304-2B Stainless Steel / Thickness 3.5 mm |
| Tank Head Type | Flat Head |
| Baffle Plates | 2 Wave-Shaped Anti-Surge Baffles |
| Internal Treatment | Pickling & Passivation |
| External Treatment | Painted Finish |
| Manhole | 1 Piece / DN500 mm |
| Liquid Level Tube | Front Mounted Liquid Level Tube |
| Pump System | |
| Pump Model | 65SQB-40/45L |
| Flow Rate | 40 m³/h |
| Head | 45 m |
| Self-Priming Performance | 1 min / 5 m |
| Pump Inlet & Outlet Pipe | 304-2B Food Grade Stainless Steel / Ø63 mm |
| Pump Filter | SUS304 Straight-Through Filter (Ø63 mm) |

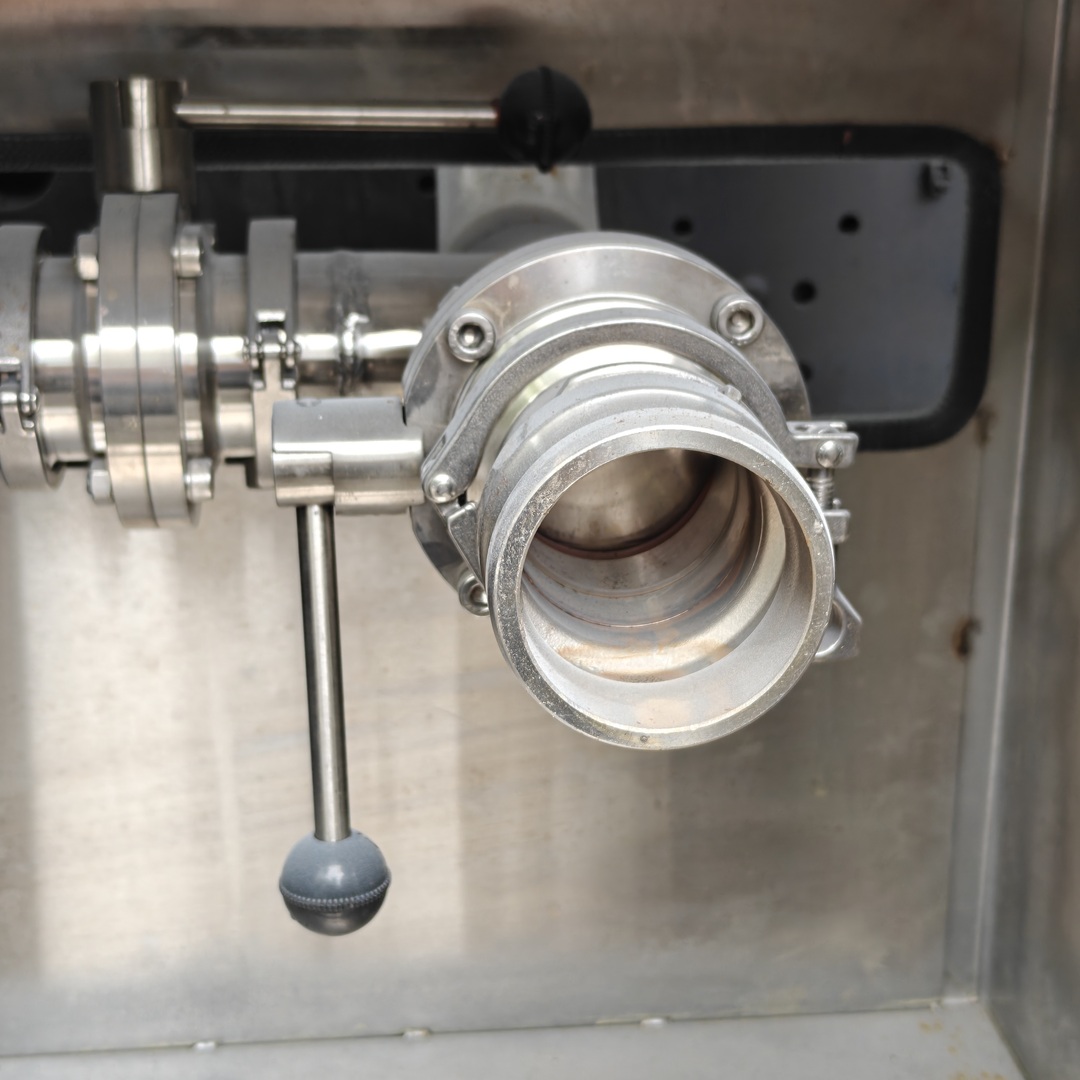

| Inlet / Outlet Valve | SUS304 / Ø63 mm; 2.5″ SUS304 Three-Way Valve |
| Hose Box | Side Mounted Stainless Steel Hose Box |
| Spraying Functions | |

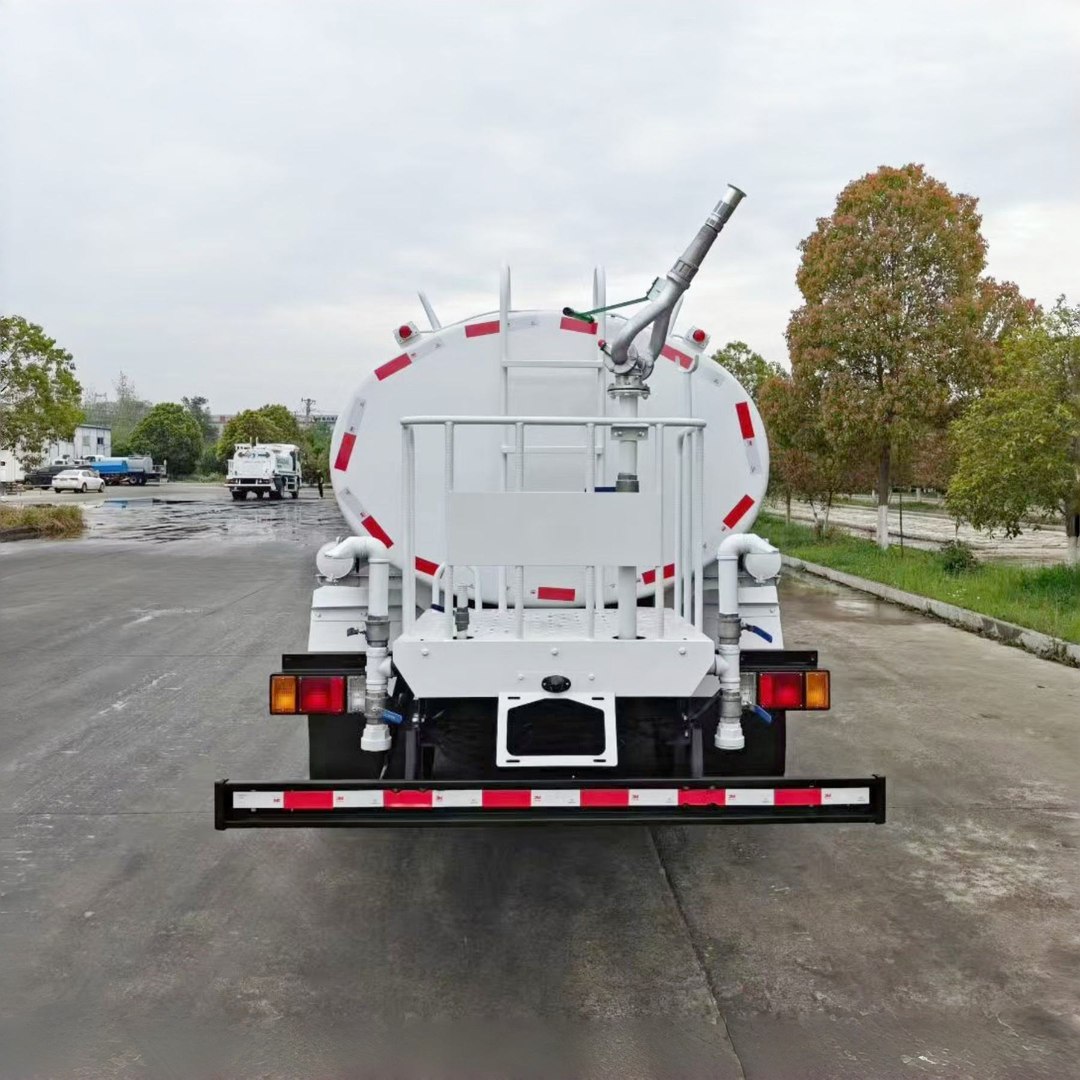

| Front / Rear Spray | Duckbill Nozzle |
| Water Cannon | Aluminum Alloy Water Cannon |
| Rear Platform | Q235 Carbon Steel with Electrophoretic Coating |
| Protective Components | |
| Subframe | Q235 Electrophoretic Coating |
| Mudguard | Q235 Custom Made / Electrophoretic Coating |
| Side Protection | Cast Parts Bolted Connection / Carbon Steel Material |
| Rear Protection | 380 mm High Q235 Electrophoretic Coating |
| Top Guard Rail | Ø25 mm Fixed Stainless Steel Rail |
| Ladder | Ø32 mm Stainless Steel Rear Ladder |
| Fender | Double-Sided Patterned Iron Fender |
| Suction Hose | 2 Pieces, 3.5 m Steel Wire Reinforced Suction Hose |
